6 Mounting
6.2 Sensor PIOX R721
2021-09-01, UMPIOX_F72xV1-3EN
28

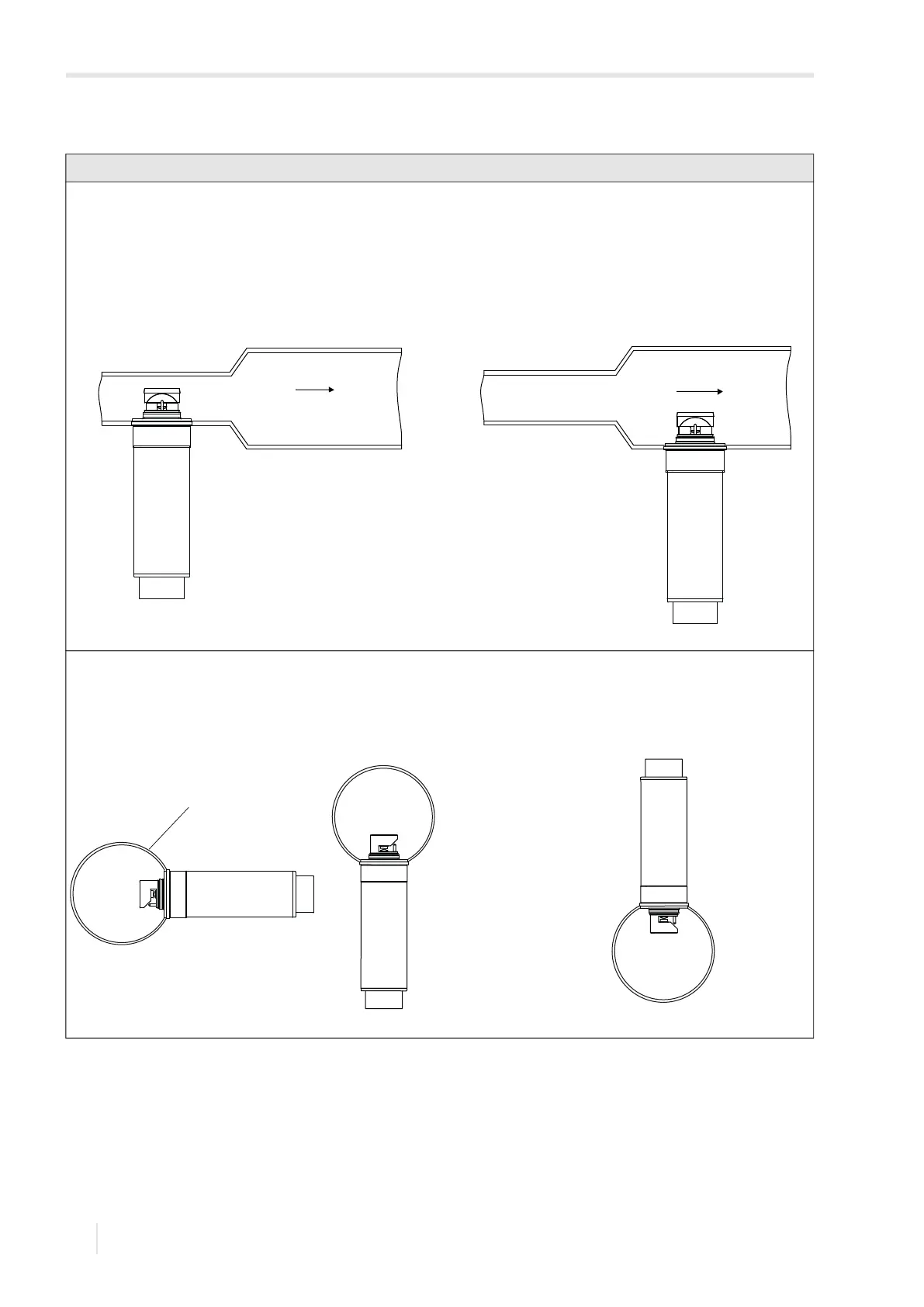

Tab. 6.1: Sensor positioning on a horizontal pipe (basic presentation)
Horizontal pipe
Diffuser
If possible, install the sensor in the pipe segment with the smaller pipe diameter (if the flow direction is as indicated).
Positioning of the sensor in the cover
If possible, install the sensor on the side or at the bottom of the pipe in such way that any gas bubbles at the top of the pipe do not
influence the measurement.
flow direction
correct
flow direction
disadvantageous
correct
pipe
disadvantageous
