6 Mounting
PIOX R721 6.2 Sensor
29
UMPIOX_F72xV1-3EN, 2021-09-01
Orientation of the sensor head, in case it is laterally installed
Install the sensor head in such way that the flow direction of the fluid is parallel to the edge of the measuring prism and the
temperature probe points downward. If the sensor is correctly installed, the arrows on the sensor housing are horizontal and the point
on the sensor housing points downward.

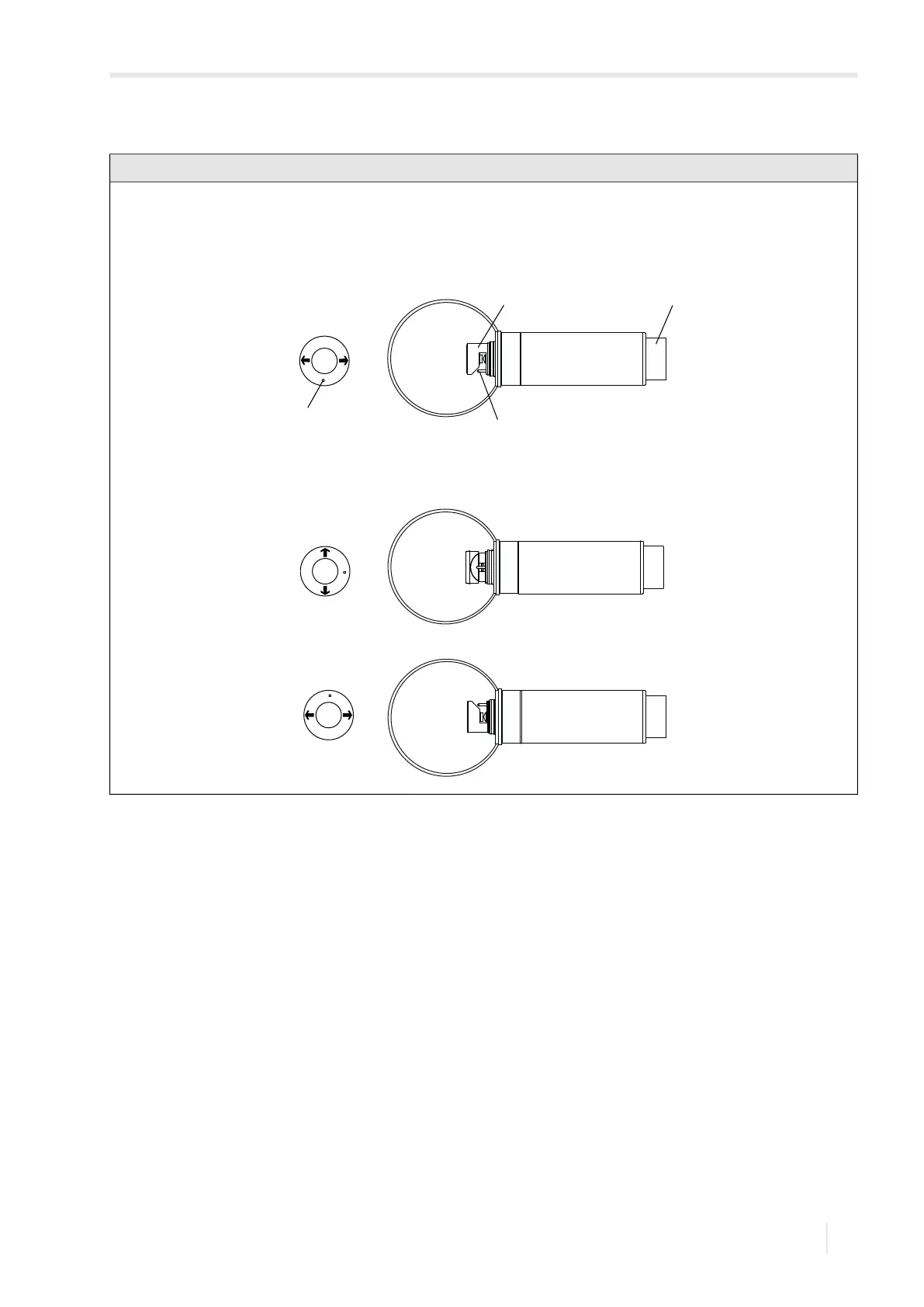

Tab. 6.1: Sensor positioning on a horizontal pipe (basic presentation)
Horizontal pipe
correct
sensor head
point on sensor housing (marks the
position of the temperature probe)
temperature probe
housing cover
disadvantageous
