6 Mounting
6.2 Sensor PIOX R721
2021-09-01, UMPIOX_F72xV1-3EN
30

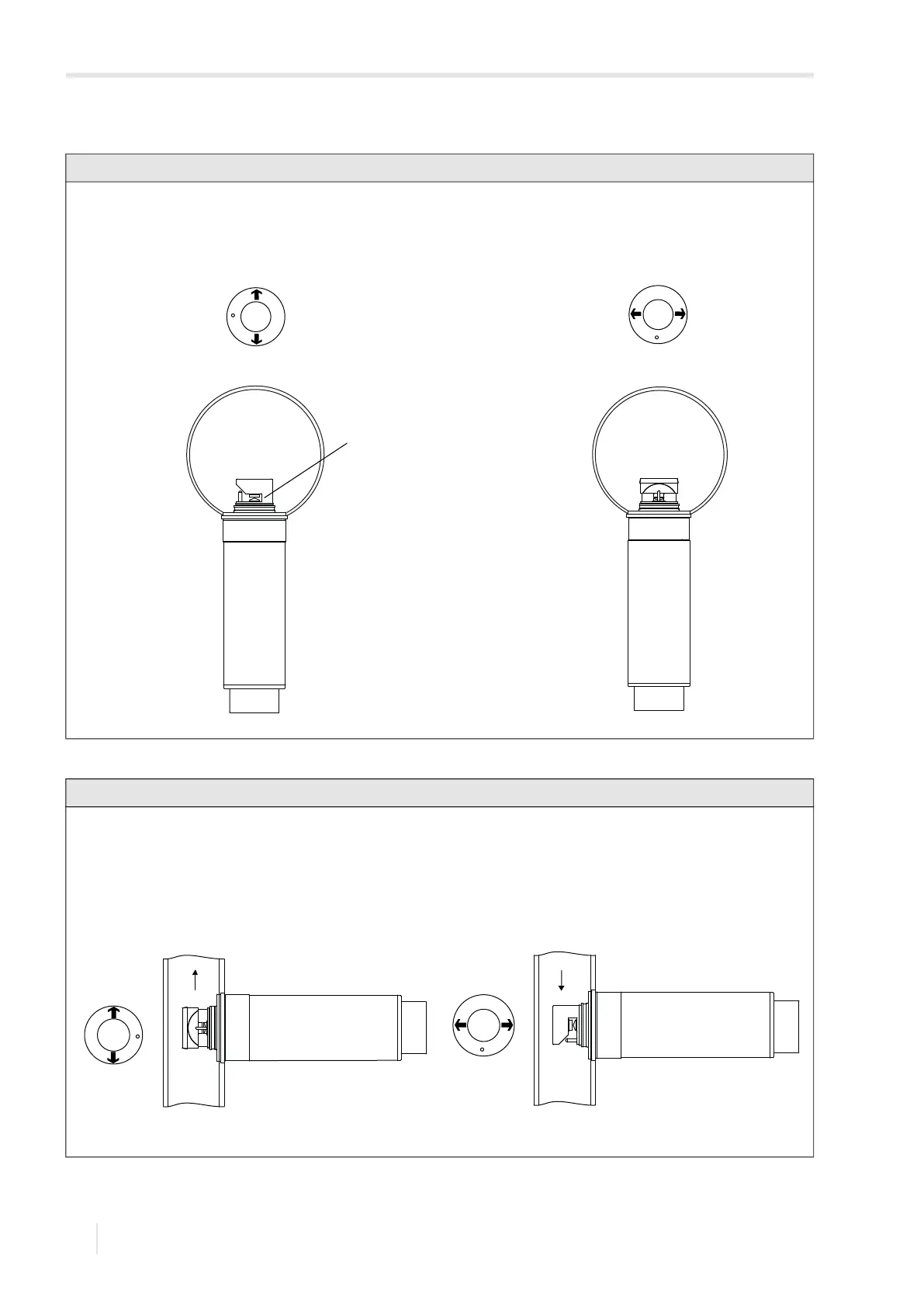

Orientation of the sensor head, in case it is installed at the bottom of the pipe
Install the sensor head in such way that the flow direction of the fluid is parallel to the edge of the measuring prism. If the sensor is
correctly installed, the arrows on the sensor housing are aligned along the pipe.
Tab. 6.2: Sensor positioning on a vertical pipe (basic presentation)
Vertical pipe
Flow direction and orientation of the sensor head
The measuring point on a vertically mounted pipe has always to be filled. The fluid should flow upward. The fluid has to wash around
the measuring prism and the flow direction of the fluid has to be parallel to the edge of the measuring prism. If the sensor is correctly
installed, the arrows on the sensor housing are vertical.
Tab. 6.1: Sensor positioning on a horizontal pipe (basic presentation)
Horizontal pipe
correct
sensor head
disadvantageous
correct
flow direction
disadvantageous
flow direction
