7 Connection
PIOX R721 7.5 Service interfaces
45
UMPIOX_F72xV1-3EN, 2021-09-01
• Push the cable through the cap nut, compression part and basic part of the cable gland.
• Insert the cable into the housing of the transmitter.
• Prepare the cable (see the documentation provided by the manufacturer).
• Install the connector (see the documentation provided by the manufacturer).
• Insert the connector into the LAN interface.
• Fix the foldable ferrite core to the cable.
• Position the cable in the housing as shown in Fig. 7.14.
• Screw the sealing ring side of the basic part into the transmitter housing.
• Fix the cable gland by screwing the cap nut onto the basic part.

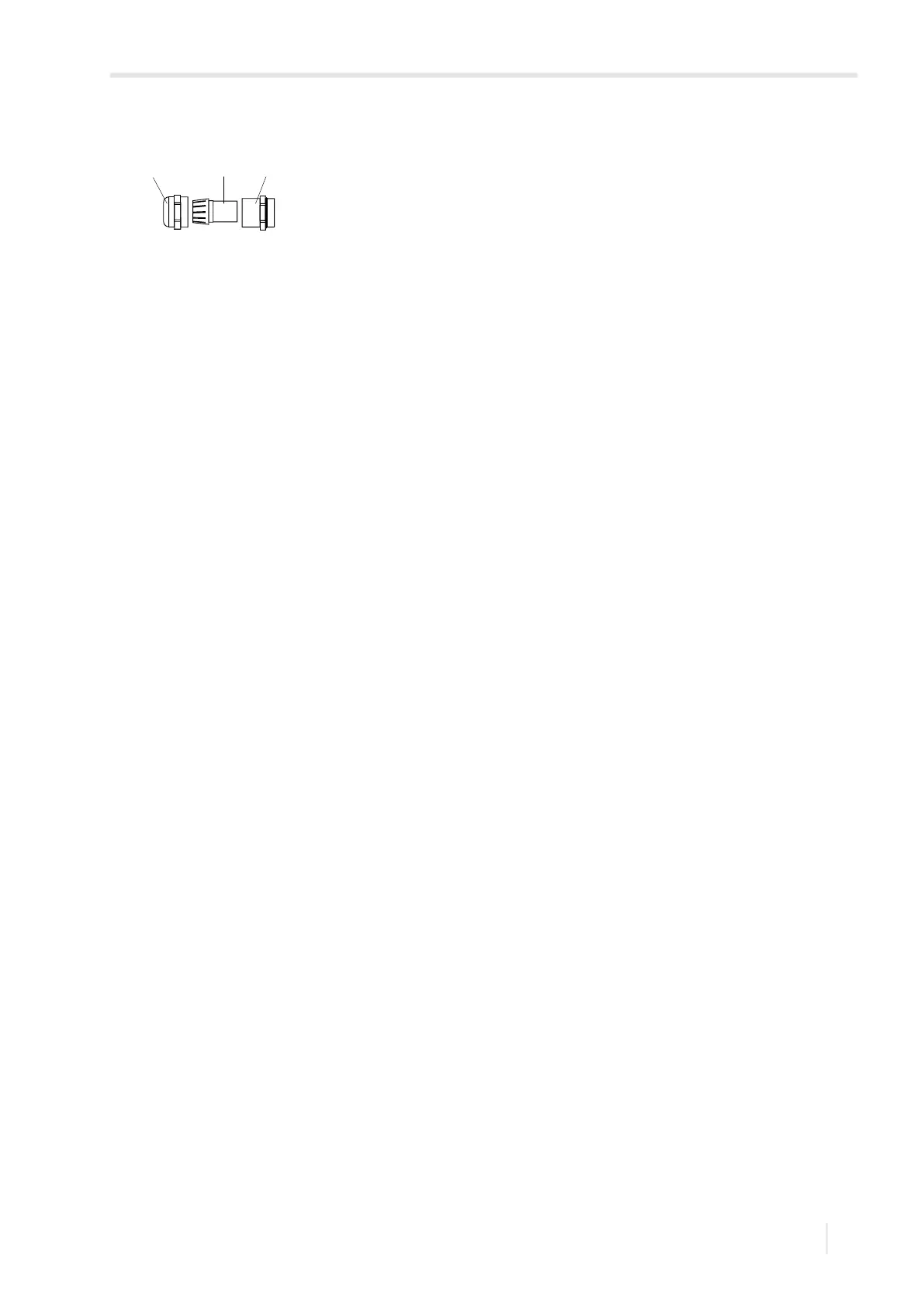

Fig. 7.15: Cable gland
1 – cap nut
2 – compression part
3 – basic part
1
2 3
