FLIR IP Series User Manual

Smartphone and Tablet Apps
9

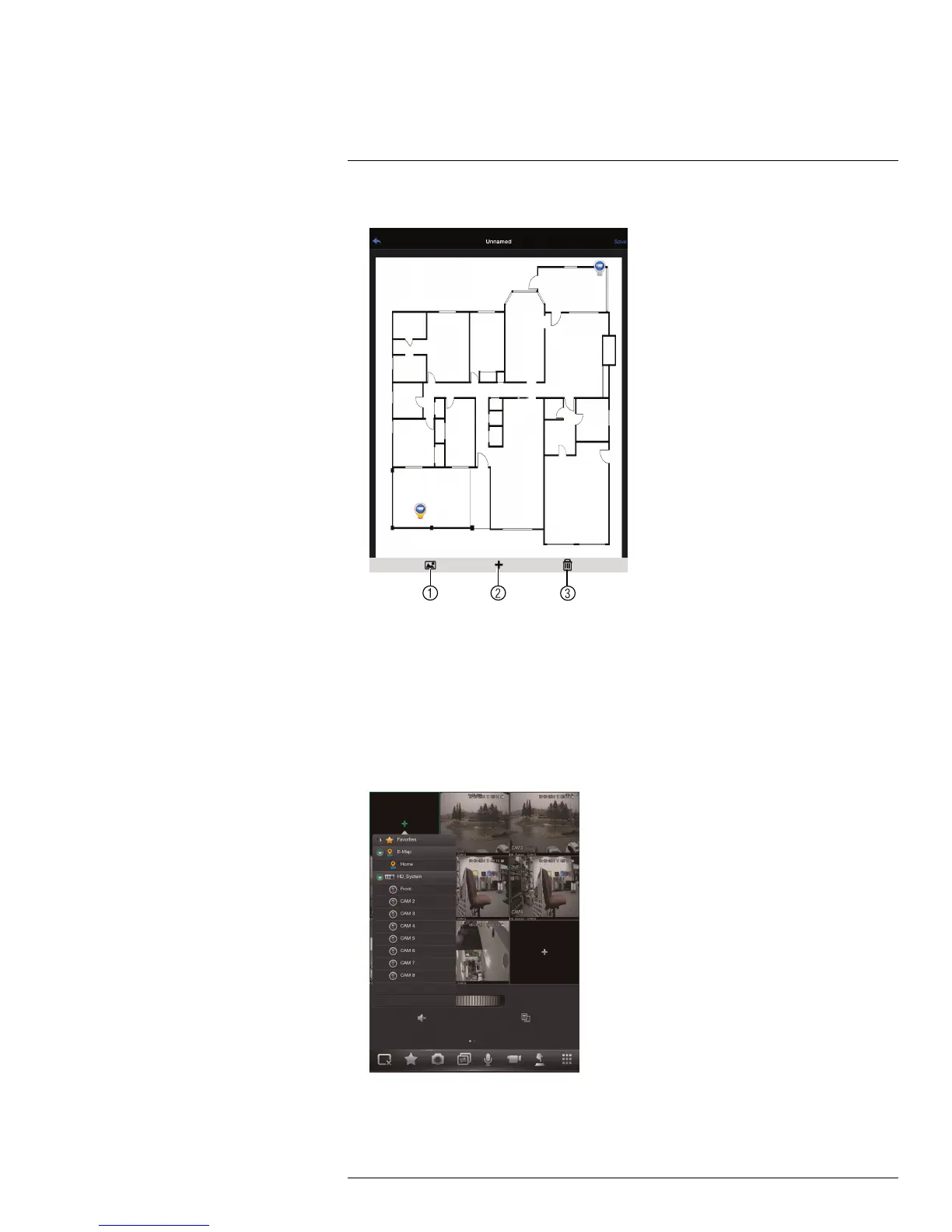

4. To edit the E-map:
4.1. Select Image: Select different image file to use for your E-Map.
4.2. Add Camera: Tap + to select cameras to add to your E-Map. Then drag the
camera to place it on the E-Map.
4.3. Delete E-Map.
5. When you are finished editing the E-Map, tap Save and enter a name for the E-Map to
save changes.
To open cameras using the E-Map:
1. In live view, tap + on an empty display window and select the E-Map.
#LX400038; r. 1.0/18537/18537; en-US
112

FLIR IP Series Specifications

General

Sensor Type	Uncooled microbolometer
Weather Resistance	Yes
Video Compression	H.264, MJPEG
Power	PoE (IEEE 802.3af)
Spectral Range	7.5 – 13 μm
Thermal Sensitivity	< 50 mK
Video Output	Ethernet
IP Rating	IP66
Resolution	320 × 240 pixels
Frame Rate	Up to 30 Hz (varies by model)
