FLIR IP Series User Manual

Setup
5

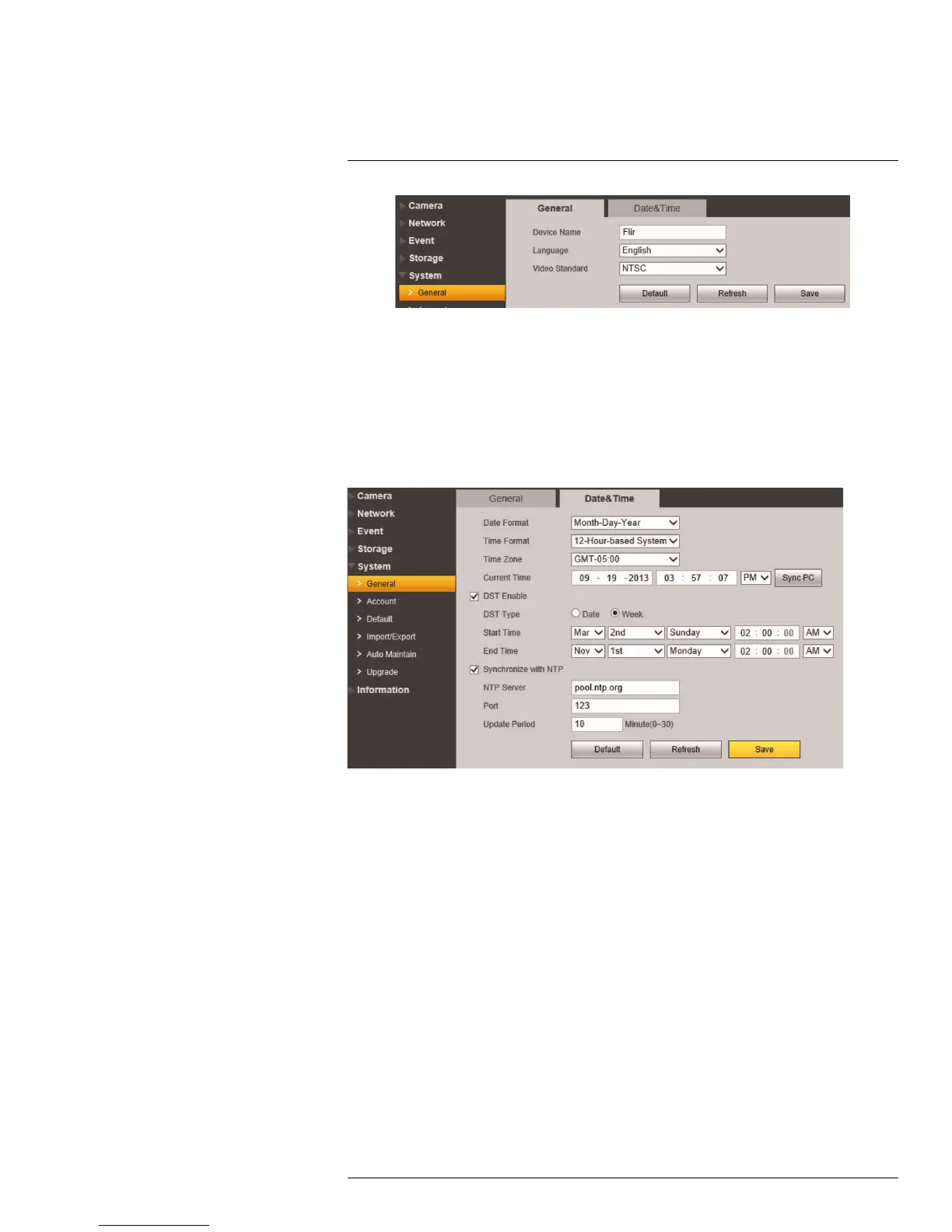

To configure general camera settings:
1. Under Device Name, enter a name for the camera.
2. Under Language, select the language that will be used for the web browser interface.
3. Under Video Standard, select NTSC (North America) or PAL (Europe).
4. Click Save.
5.6.2 Date & Time
The Date & Time tab allows you to set up date and time settings for the IP camera.
To configure date & time settings:
1. Configure the following:
• Date Format: Select the date format.
• Time Format: Select the time format (12 hour or 24 hour).
• Time Zone: Select your time zone.
• Current Time: Enter the current time or click Sync PC to sync your IP camera to
your PC’s clock.
2. If your area uses Daylight Savings Time (DST) check DST Enable. If you enable DST,
configure the following:
• DST Type: Select Date to select a date for the time change or select Week to select
the week and day for the time change.
• Start Time and End Time: Enter the start and end times for Daylight Savings.
3. Check Synchronize with NTP to synchronize the camera clock with an NTP time
server. A constant Internet connection is required to use NTP. If you enable NTP, con-
figure the following:
• NTP Server: Enter the NTP server address.
• Port: Enter the port for the NTP server.
• Update Period: Enter the interval the camera will use to update the time.
#LX400038; r. 1.0/18537/18537; en-US
47

FLIR IP Series Specifications

General

Sensor Type	Uncooled microbolometer
Weather Resistance	Yes
Video Compression	H.264, MJPEG
Power	PoE (IEEE 802.3af)
Spectral Range	7.5 – 13 μm
Thermal Sensitivity	< 50 mK
Video Output	Ethernet
IP Rating	IP66
Resolution	320 × 240 pixels
Frame Rate	Up to 30 Hz (varies by model)
