Camera type 218:
234 × 124 × 161 mm (9.21 × 4.88 × 6.34")
Camera type 234:
234 × 124 × 161 mm (9.21 × 4.88 × 6.34")
Camera type 253:
241 × 124 × 161 mm (9.49 × 4.88 × 6.34")
The three-digit camera type number is the three
first digits in the camera S/N.
Size (L × W × H)
Standard, 1/4"-20Tripod mounting
16.10 Interfaces & connectors
USB Rev 2.0 (full speed)
RS-232 (extra option)
Computer interfaces
9–16 VDC (11–16 VDC when charging), standard
2.5 mm DC connector. Polarity protected
Power input
Standard RCA connector for composite video
CVBS (ITU-R BT.470 PAL/SMPTE 170M NTSC)
CVBS
CompactFlash cardRemovable storage media
16.11 Pin configurations
16.11.1 RS-232/USB connector
10402703;a1

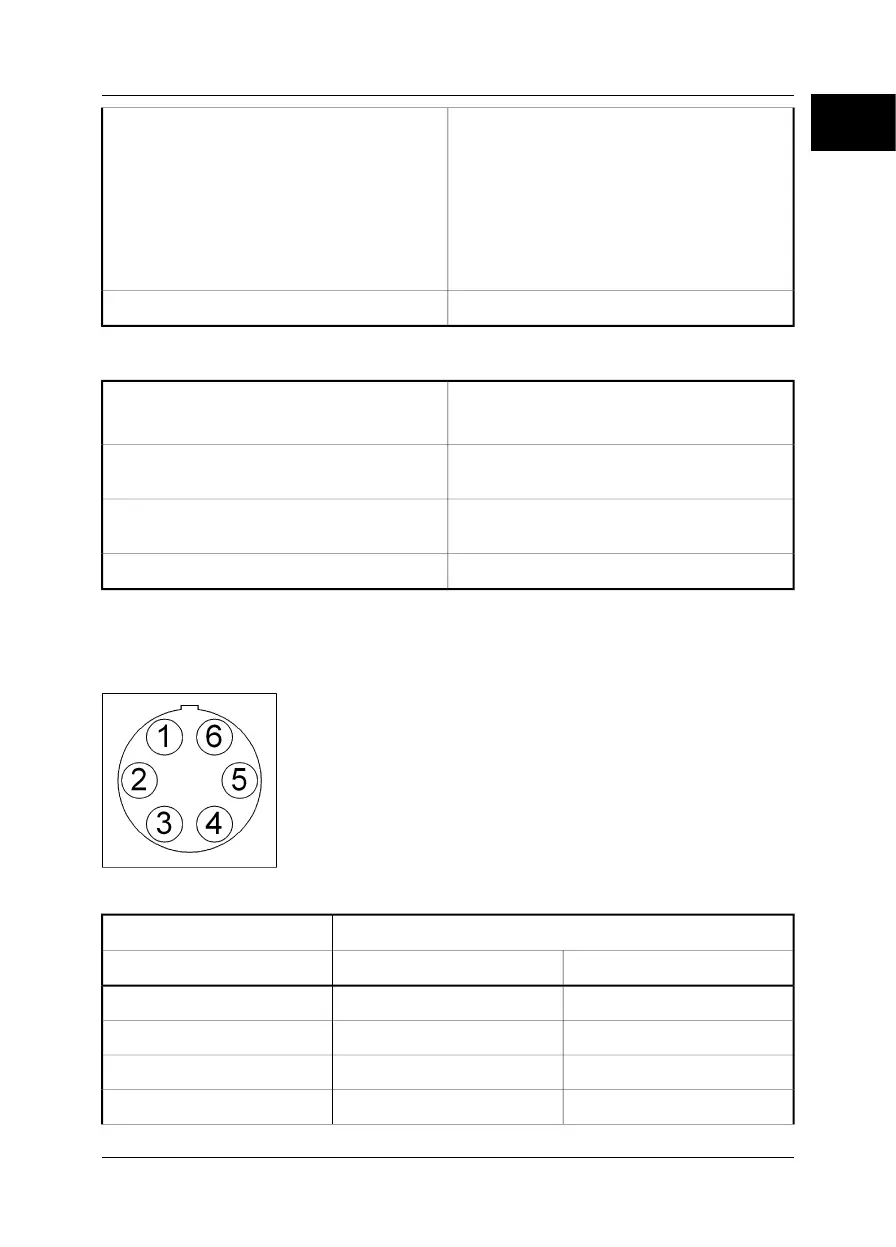

Figure 16.1 Pin configuration for RS-232/USB connector (on camera – operator’s side)
LEMO 1B, 6 pinsConnector type:
Pin numberTypeSignal name
1I/OUSB_D+
2I/OUSB_D-
3OUTUSB_POWER
4GNDGND
16
Publ. No. 1557978 Rev. a155 – ENGLISH (EN) – February 6, 2006 99
16 – Technical specifications & dimensional drawings
