10.2.4 Image menu
10.2.4.1 Freeze/Live
Point to Freeze/Live and press the joystick to switch between freeze image mode
and live image mode. It has the same effect as if you briefly press the S button.
10.2.4.2 Range
10391903;a6

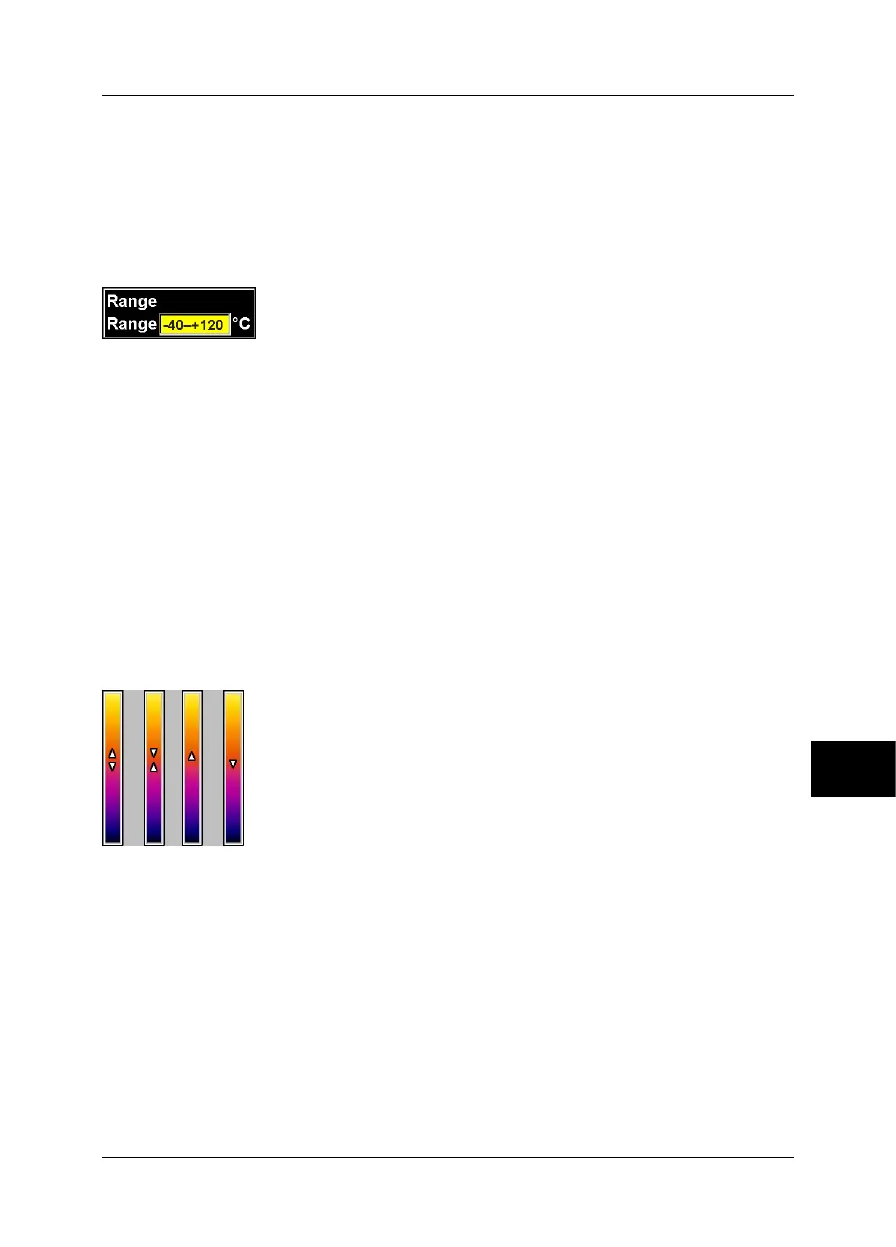

Figure 10.18 Range dialog box
Point to Range and press the joystick to display a dialog box where you can set the
range.
10.2.4.3 Level/Span
Point to Level/Span and press the joystick to manually change level and span. The
level command can be regarded as the brightness, while the span command can be
regarded as the contrast.
■ Move the joystick up/down to change the level (indicated by an arrow pointing
upwards or downwards in the temperature scale)
■ Move the joystick left/right to change the span (indicated by two arrows pointing
away from each other or towards each other)
10392103;a3
Figure 10.19 Symbols in the temperature scale, indicating (1) increasing span; (2) decreasing span; (3)
increasing level, and (4) decreasing level
For more information about object parameters, see section 18 – Thermographic
measurement techniques on page 125.
10.2.4.4 Manual adjust / Continuous adjust
■ Point to Manual adjust and press the joystick to put the camera in manual adjust
mode. You can now change level and span by first pressing the C button repeat-
edly (to change the function of the joystick to level/span), and then change level
or span by moving the joystick up/down and left/right, respectively
10
Publ. No. 1557978 Rev. a155 – ENGLISH (EN) – February 6, 2006 75
10 – Camera program
