10 Camera program
10.1 Screen objects
10.1.1 Result table
The results of measurement markers are displayed in a result table in the top right-
hand corner of the screen.

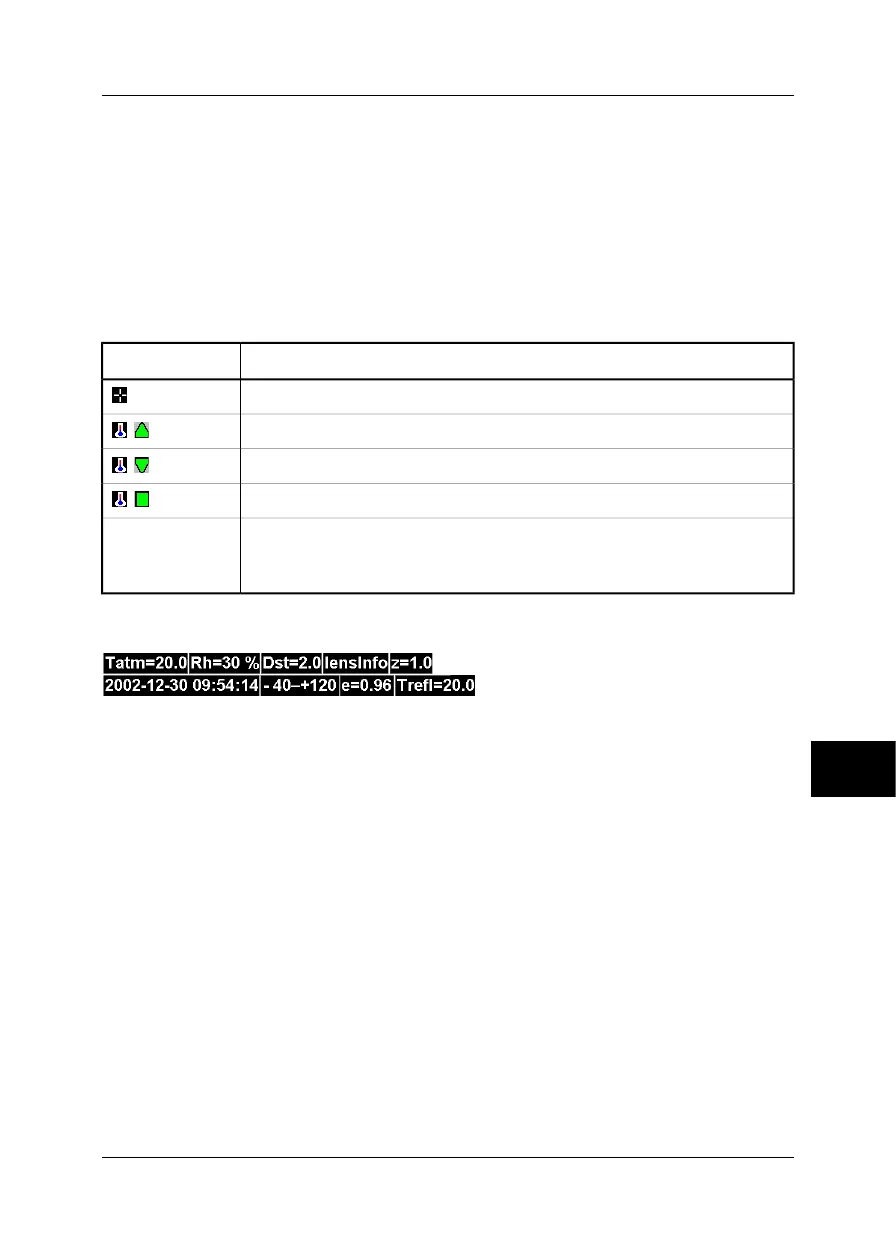

Figure 10.1 Explanation of measurement markers appearing in the result table
ExplanationIcon
Spot
Isotherm 1, above
1
Isotherm 1, below
1
Isotherm 1, interval
1
The ✴ symbol indicates uncertain result due to an internal updating process after
the range has been changed or the camera has been started. The symbol disap-
pears after 15 seconds.
✴
10.1.2 Status bar
10388403;a2
Figure 10.2 Status bar, showing atmospheric temperature, relative humidity, distance to target, zoom
factor, date & time, temperature range, emissivity, and reflected ambient temperature.
Information about an image and the current conditions appear on the first and second
bottom lines of the screen. If text comments are attached to an image file, they are
displayed above these two lines.
➲ If you enter an emissivity value less than 0.30 the emissivity box will begin flashing
to remind you that this value is unusually low.
10
Publ. No. 1557978 Rev. a155 – ENGLISH (EN) – February 6, 2006 65
