16.16 Basic dimensions – camera
10352203;a4

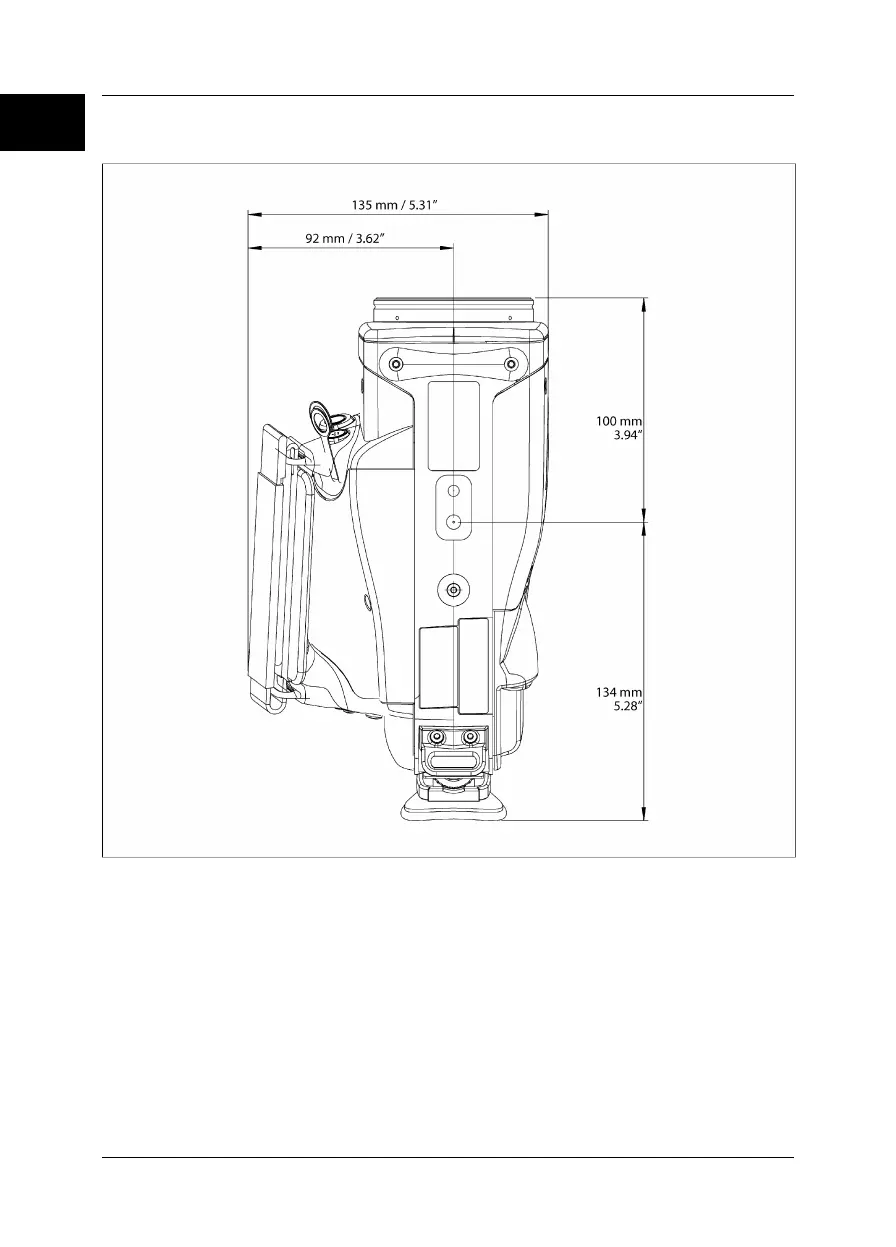

Figure 16.25 Location of the standard tripod mount (1/4"-20). For camera type 253, replace 100 mm /
3.94" with 107 mm / 4.21". Three-digit camera type number is stated on configuration label.
16
120 Publ. No. 1557978 Rev. a155 – ENGLISH (EN) – February 6, 2006
16 – Technical specifications & dimensional drawings
