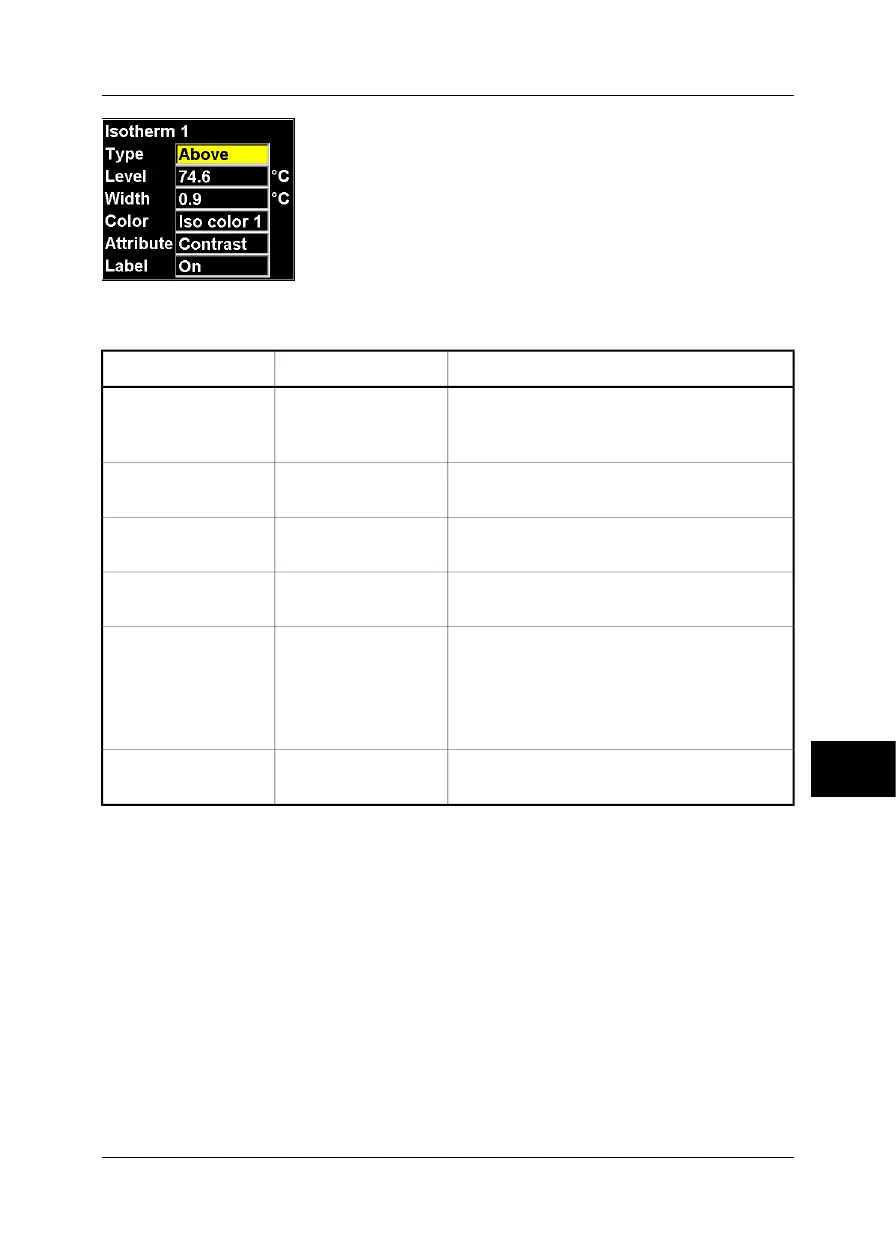

Figure 10.15 Isotherm dialog box
Figure 10.16 Explanations of the Isotherm dialog box
CommentsValueLabel
For an explanation of isotherm types, see above.
■
Interval
■
Above
■
Below
Type
The temperature level in degrees Celsius (°C) or
degrees Fahrenheit (°F).
User-definedLevel
The temperature width in degrees Celsius (°C) or
degrees Fahrenheit (°F).
User-definedWidth
The colors used for the isotherm.Configuration-depen-
dent
Color
Selecting Transparent will add some transparency
to an isotherm color, making it easier for you to
see objects through the color.
To make the isotherm colors appear solid, select
Solid.
■
Transparent
■
Solid
Attribute
Selecting On will assign a label to the measure-
ment marker (a small box with a number).
■
On
■
Off
Label
10.2.3.4 Remove all
Point to Remove all and press the joystick to remove all measurement functions and
markers from the screen.
