10.1.3 Temperature scale
10388503;a2

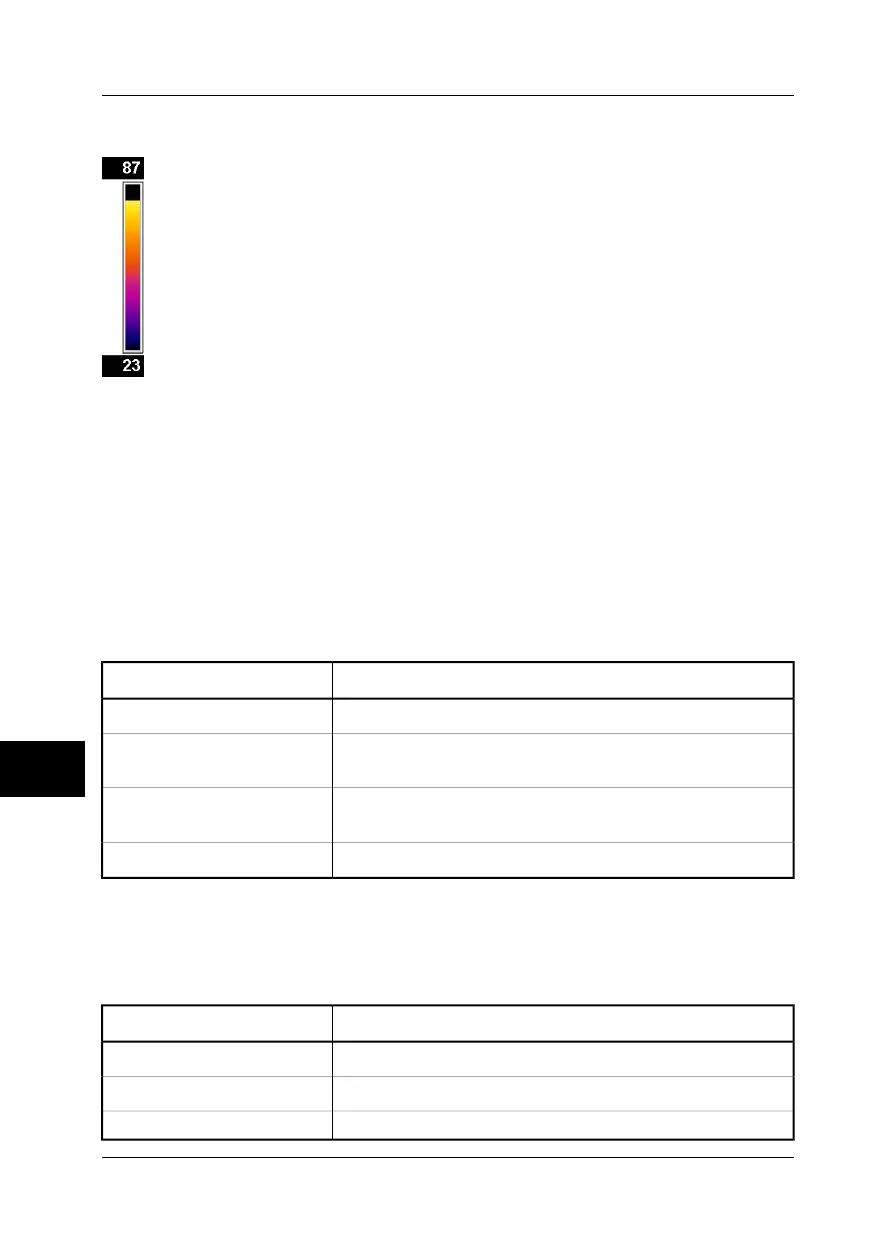

Figure 10.3 Temperature scale
The temperature scale is displayed on the right-hand side of the screen. The scale
shows how the colors are distributed along the various temperatures in the image,
with high temperatures at the upper end and low temperatures at the lower end.
10.1.4 System messages
10.1.4.1 Status messages
Status messages are displayed at the bottom of the screen, or in the top left part of
the screen. Here you will find information about the current status of the camera, etc.
Figure 10.4 Status messages – a few examples
ExplanationMessage
Message is displayed when the image is frozen.Frozen
Message is displayed when the camera is currently in manual adjust
mode.
Manual
Message is displayed when the software is restarted, i.e. after Fac-
tory default.
Restarting
Message is displayed while an image is being saved.Saving as
10.1.4.2 Warning messages
Warning messages are displayed in the center of the screen. Here you will find impor-
tant information about battery status, etc.
Figure 10.5 Critical camera information – a few examples
ExplanationMessage
The battery level is below a critical level.Battery low
The camera will be switched off immediately.Shutting down
The camera will be switched off in 2 seconds.Shutting down in 2 seconds
10
66 Publ. No. 1557978 Rev. a155 – ENGLISH (EN) – February 6, 2006
