10.2.3 Analysis menu
10.2.3.1 Edit mode
Point to Edit mode and press the joystick to enter the edit mode of the camera. When
the camera is in edit mode you can select the fixed spot or the isotherm and change
the settings for these measurement markers. You leave edit mode by pressing the C
button.
10.2.3.2 Changing the settings for the fixed spot
Press and hold down the joystick for one second when the spot is selected to display
a shortcut menu.
10569003;a2

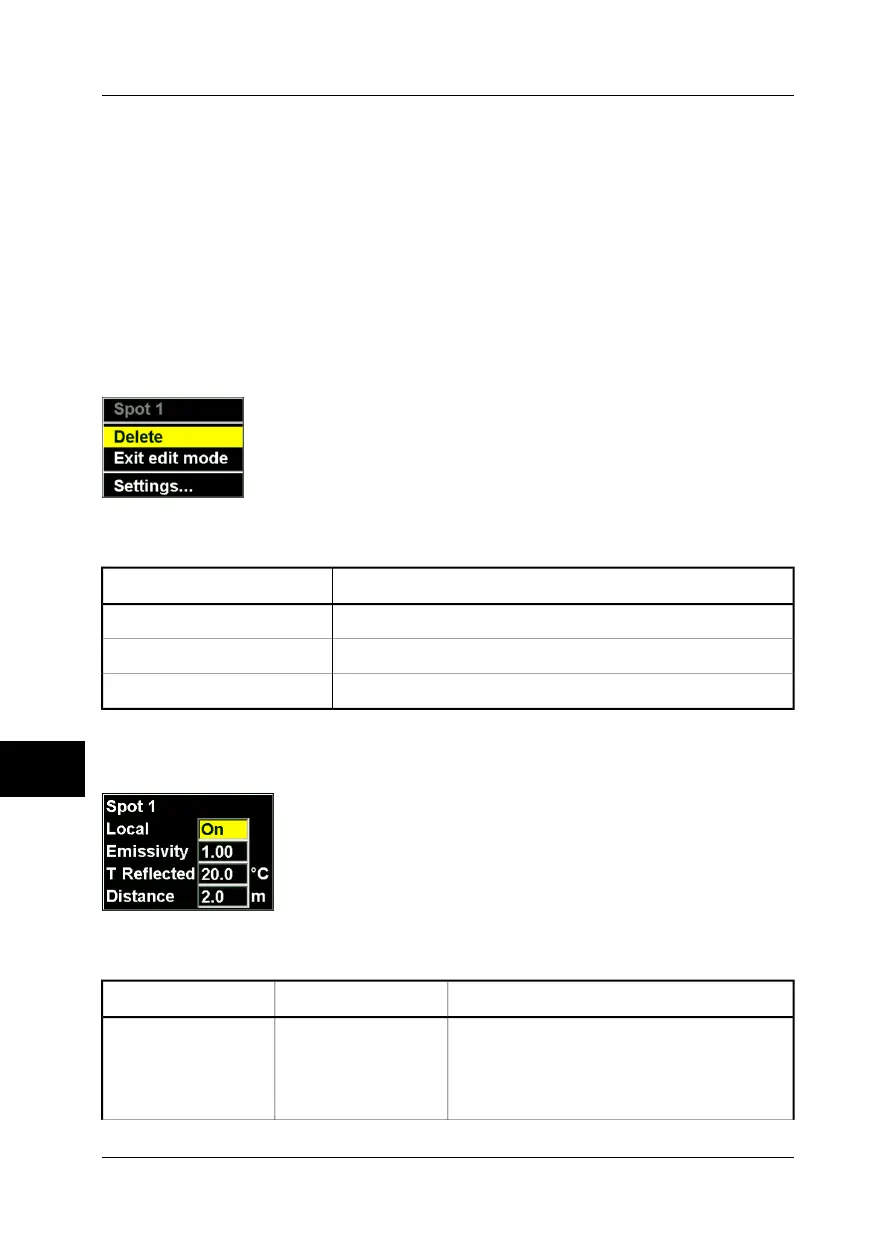

Figure 10.8 Shortcut menu for Spot
Figure 10.9 Explanations of the shortcut menu for Spot
ExplanationCommand
Point to Delete and press the joystick to delete the spot.Delete
Point to Exit edit mode and press the joystick to exit the edit mode.Exit edit mode
See below.Settings
Point to Settings and press the joystick to display a Spot settings dialog box where
you can change the settings for the spot.
10569103;a2
Figure 10.10 Spot dialog box
Figure 10.11 Explanations of the Spot dialog box
CommentsValueLabel
Select On to set the emissivity, the reflected tem-
perature, and the distance for this spot only.
Selecting On will also assign an asterisk to the
measurement marker’s label.
■
On
■
Off
Local
10
70 Publ. No. 1557978 Rev. a155 – ENGLISH (EN) – February 6, 2006
10 – Camera program
