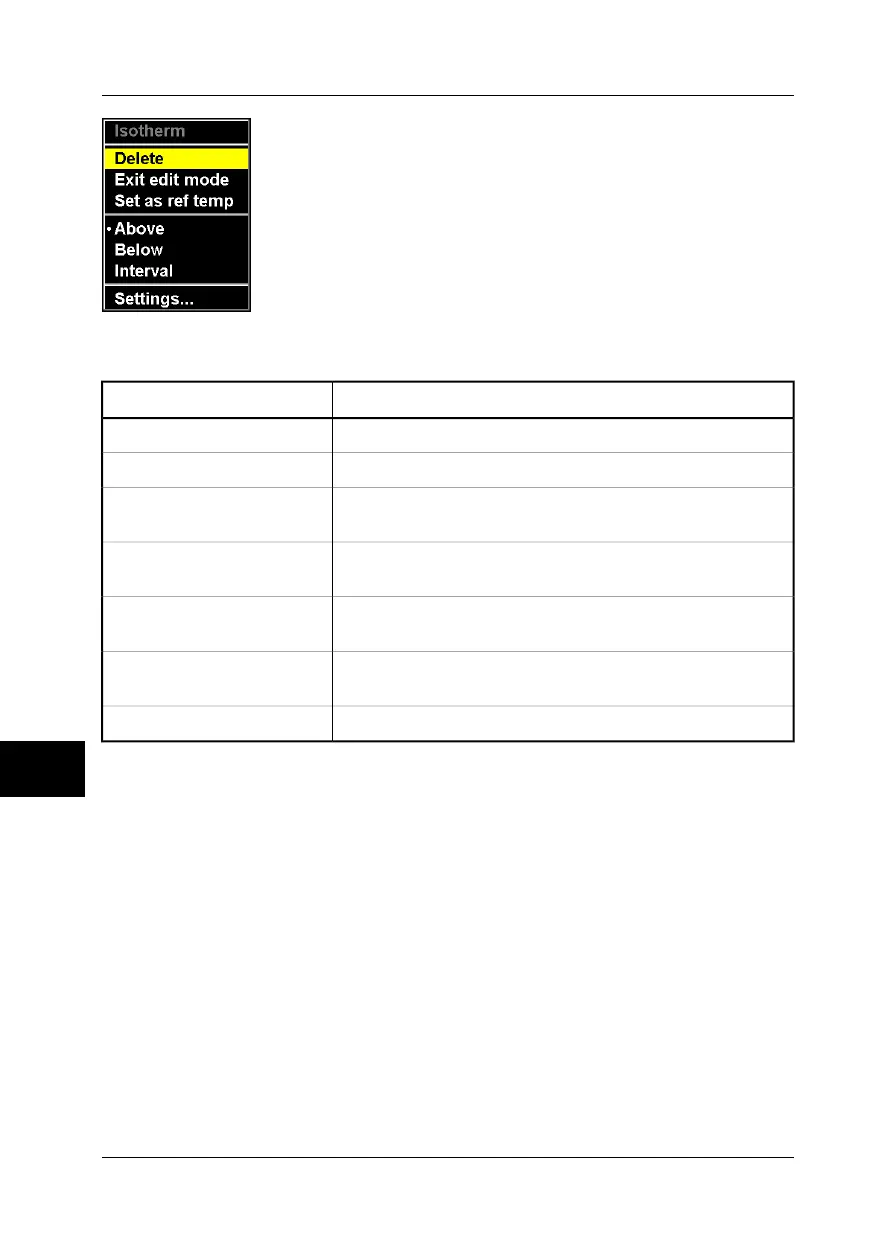

Figure 10.13 Shortcut menu for Isotherm
Figure 10.14 Explanations of the Isotherm shortcut menu
ExplanationCommand
Point to Delete and press the joystick to delete the isotherm.Delete
Point to Exit edit mode and press the joystick to exit the edit mode.Exit edit mode
Point to Set as ref temp and press the joystick to use the isotherm
temperature as the reference temperature.
Set as ref temp
All pixels with a temperature higher than a set temperature will be
colored with the same preset isotherm color.
Above
All pixels with a temperature lower than a set temperature will be
colored with the same preset isotherm color.
Below
All pixels with a temperature within the set interval will be colored
with the same preset isotherm color.
Interval
See belowSettings
Point to Settings and press the joystick to display an Isotherm settings dialog box
where you can change the settings for the isotherm.
