If a coin is valid, the movable coin ramp moves out of the way so the coin falls
into the escrow. If the coin is invalid, the movable coin ramp guides it, via the
scrap channel, into the coin return cup instead.
On the right side of the coin verifier (as seen from the terminal’s front) there is a
lid.
Figure 9, Coin verifier lid opening mechanism in closed position.

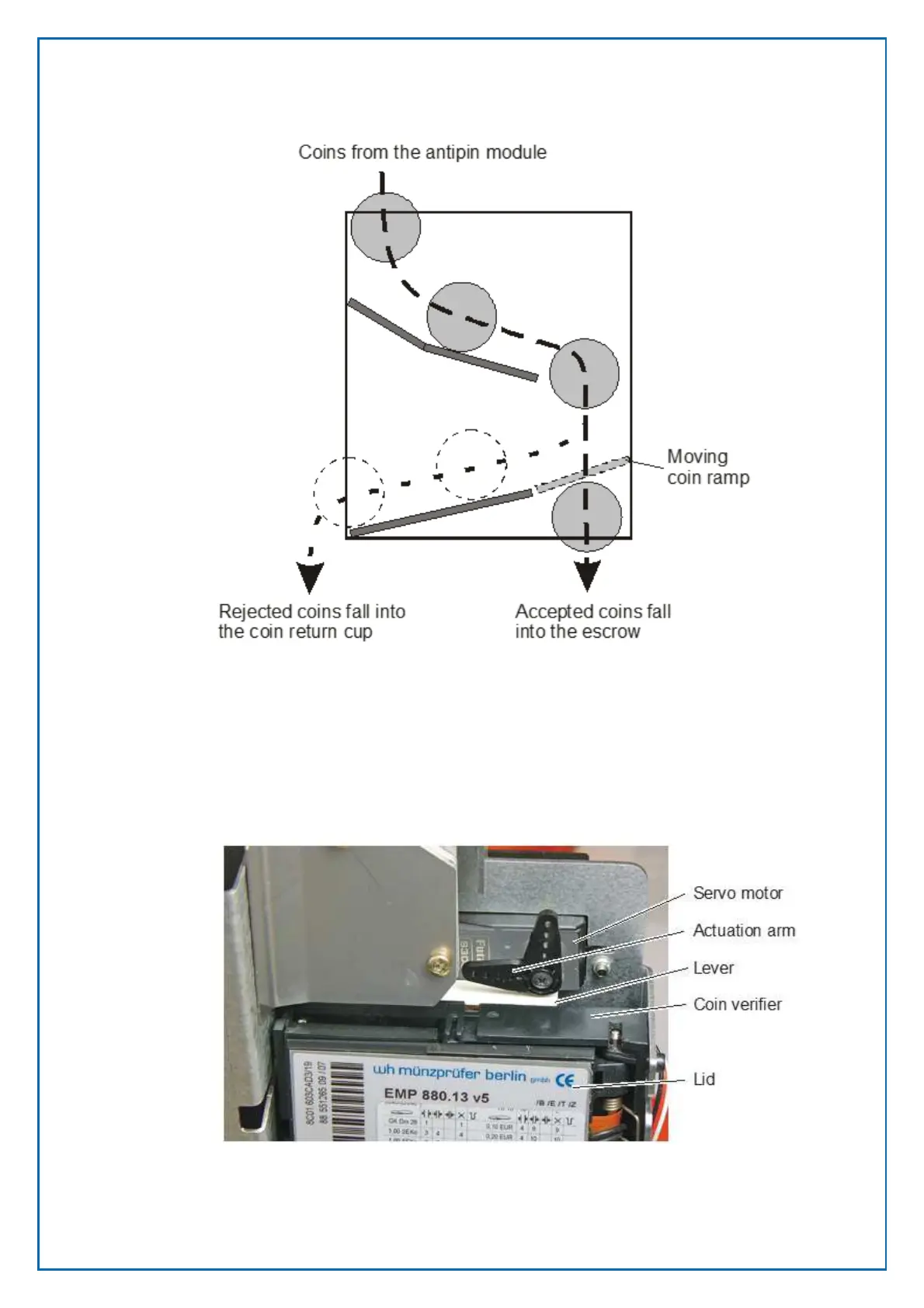

Figure 8, Coin verifier checks that a coin is valid and determines its type.
