Page 44 CWT Compact Touch Installation and Maintenanace Manual Issue 13
4.8.5.2 Electronic locks
The CWT Compact terminals also have an optional electronic lock system with
online central administration and authorization via Cale WebOffice. This solution
replaces the expensive and tedious handling and administration of keys because
all persons that need access to a CWT Compact use the same type and version
of door key that is more to be seen as a door opening tool.
There is a round key hole at the right side of both the cabinet and the pedestal.
The inside of each hole is covered by a protective plate. To enable the insertion
of a key, this plate will automatically move out of way if these conditions are met:

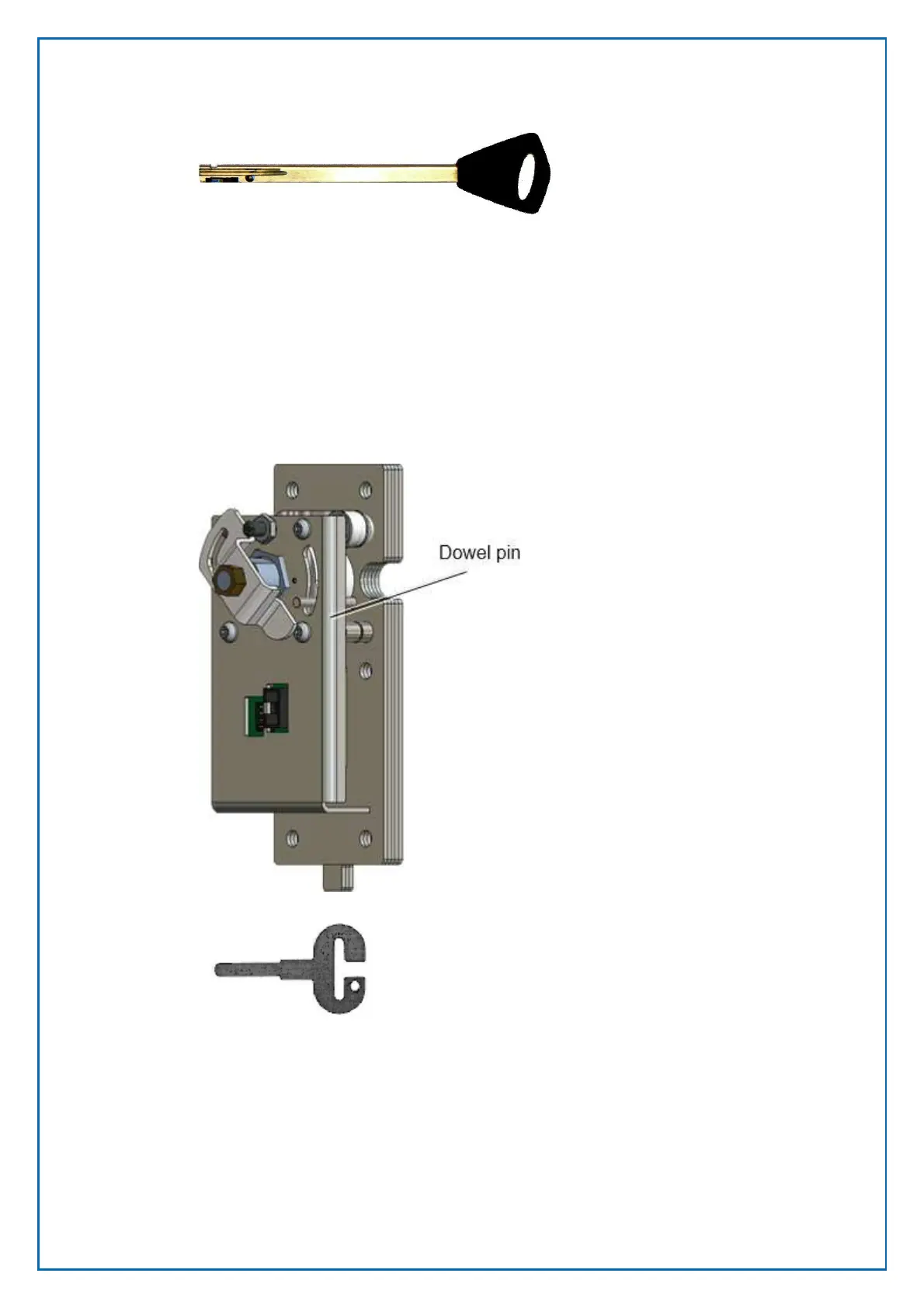

Figure 34, Door key for
electronic locks
Figure 33, Electronic-locking mechanism.
Figure 32, standard mechanical door key.
