Flowserve ROTADISK RD User Manual

ROTADISK Pneumatic Actuator RD & RDF
Operating Manual – BA3002 EN
8 Repair
Page 51 of 79

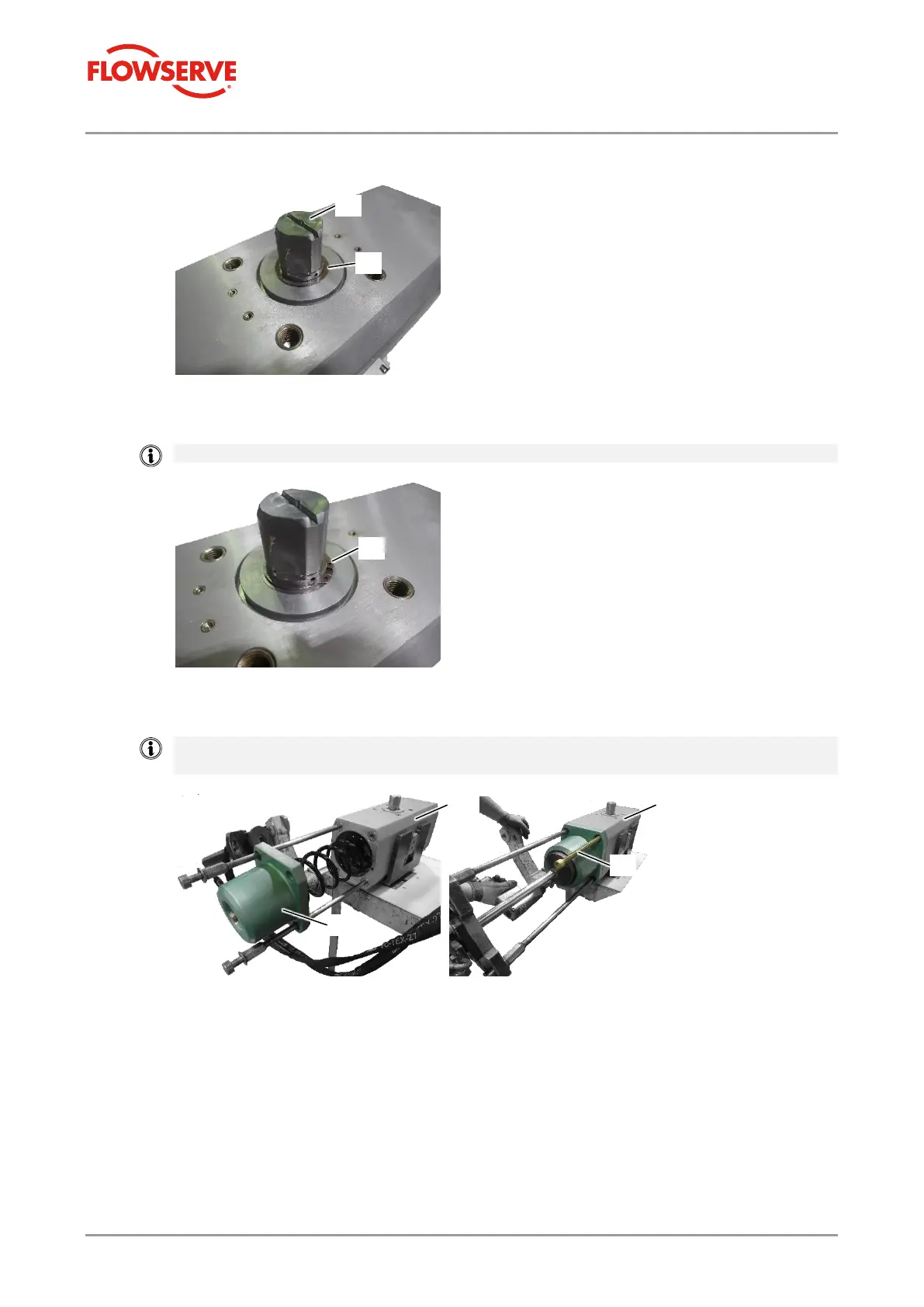

29. Place the washer [7] over the drive shaft [4].
30. Fit the shaft locking ring [6].
Make sure that the sharp side is facing upwards.
31. Mount both lids [2] with spring package on the body [10].
Use an assembly device with press and the lid screws [1] for mounting.
Also check whether the marks ( see step 1) on the lid [2] and body [10] match.
[7]
[4]
[6]
[2]
[1]
[10]
[10]
