Fluke 1750 Getting Started Guide

1750
Getting Started Guide
18
PDA Download

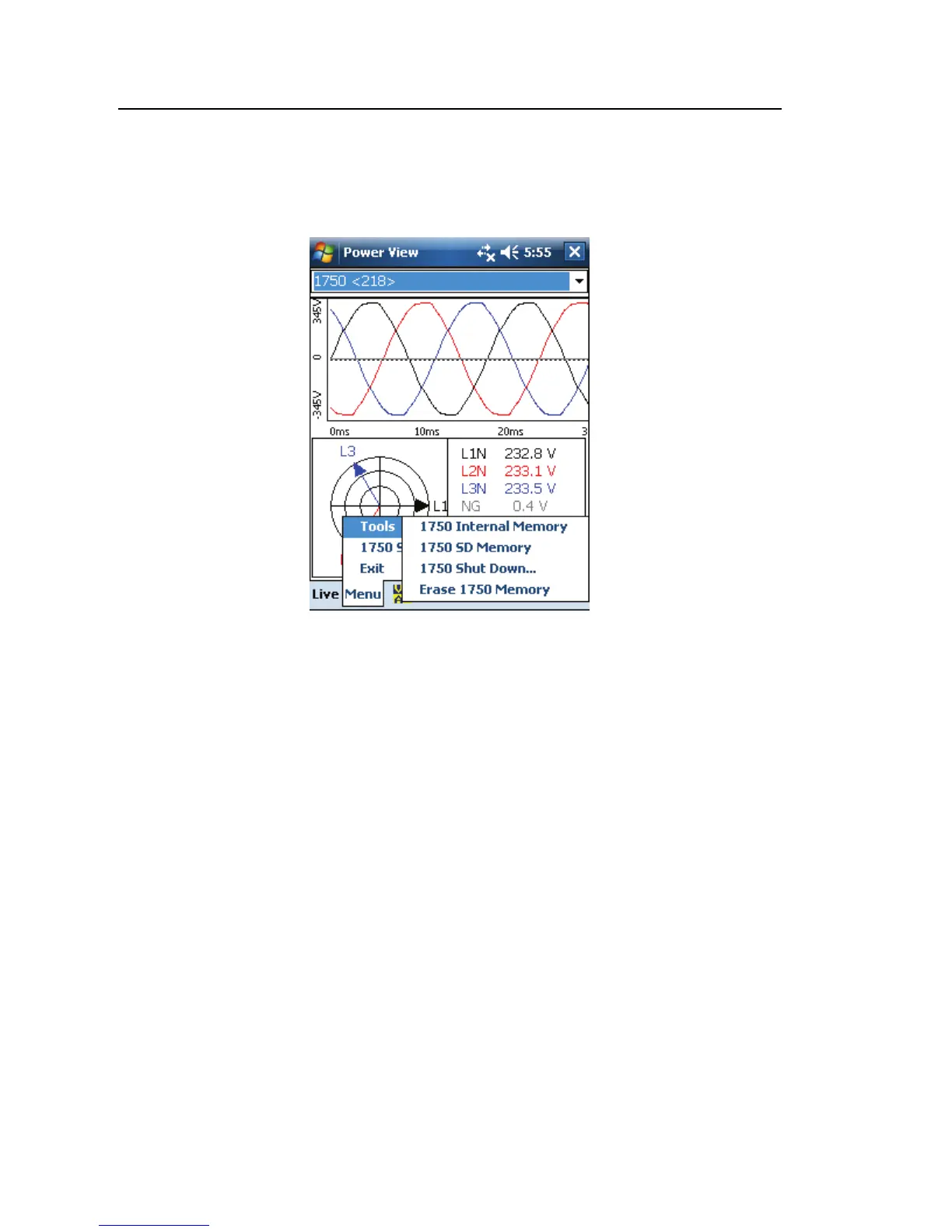

Tap 1750 Internal Memory in the Data menu to view the Download screen.
The Download screen shows a three-phase rms V strip chart with date and
timescale shown. This represents the data in the Recorder internal memory.
The default settings of the start and stop times is everything in memory. To
download ALL, tap the Write to SD button. If you want to trim off data that
contains partial information because probes were being connected, select the
START mark annotation (if one was entered by the user) as the start point.
The gray cursor lines right and left with triangular arrowheads at the bottom of
the screen show the start and stop times currently selected for download. Green
and red flags are START and STOP mark annotations inserted during the
recording session. Yellow flags are file name annotations inserted during the
recording session, or setup parameter changes that change the data
significantly, such as nominal voltage or power type.

Fluke 1750 Specifications

General

Type	Power Quality Analyzer
Frequency Measurement Range	42.5 Hz to 69 Hz
Safety Rating	CAT IV 600 V, CAT III 1000 V
Accuracy	±0.1% of reading
Harmonics	Up to 50th harmonic
Communication	Ethernet, USB
Power Supply	100 V to 240 V AC
Channels	4 voltage, 4 current
Battery Backup	Yes, internal battery
Measurement Parameters	Voltage, Current, Power, Harmonics, Flicker
Data Logging Interval	1 second to 60 minutes
Battery Life	45 minutes (UPS)
Voltage Measurement Range	1 to 1000 V (phase to neutral)
Operating Temperature	-10 to 50 °C
