Section 4: Using the Model 9100: AC Voltage Function 4.4-5
Final Width = 215mm

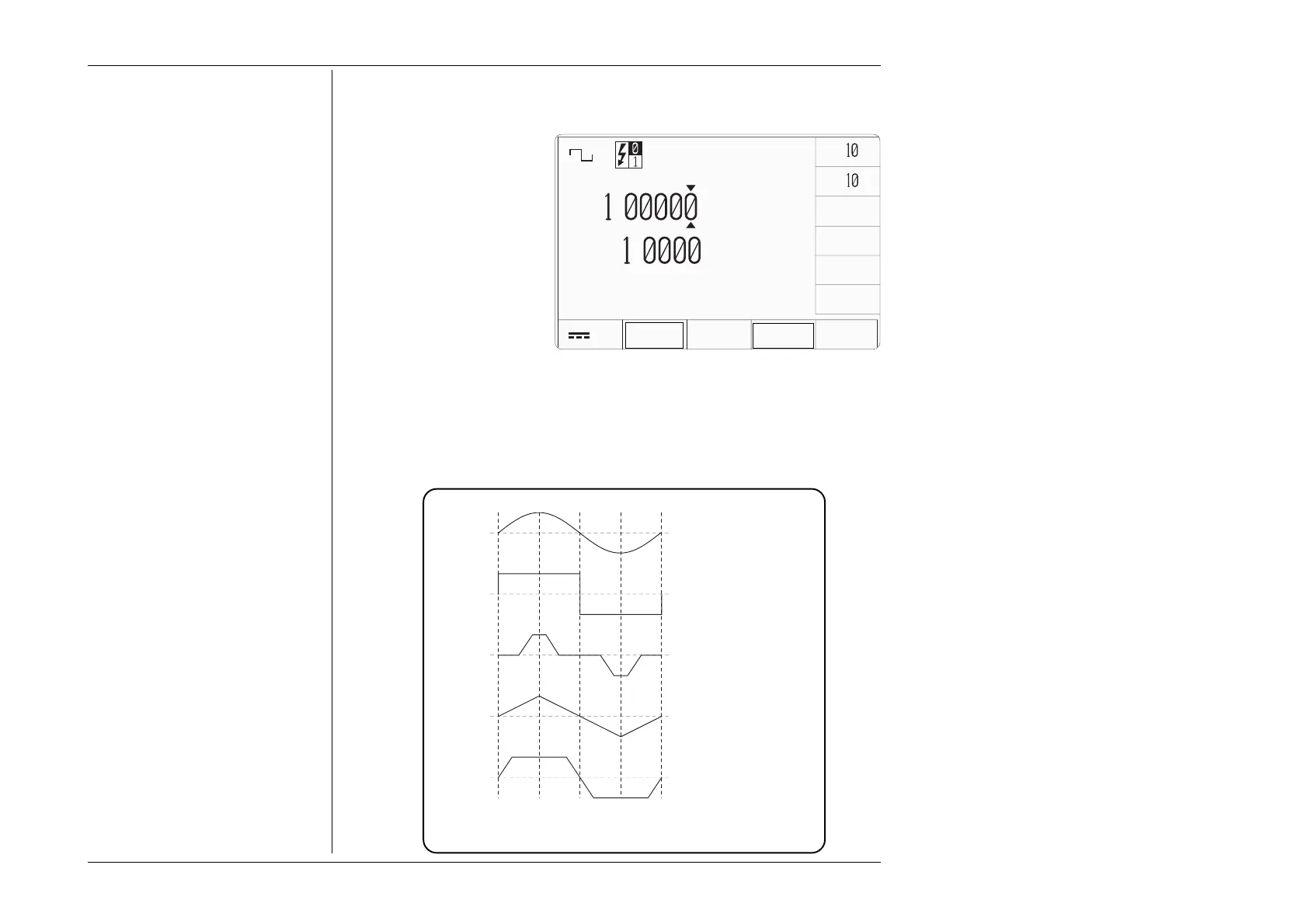

The screen reverts to the main
AC Voltage display, but with the
selected waveform identifier
('square' shown) transferred to the
top left corner:
The operation of the editing keys
is unchanged (paras 4.4.3.2).
The five waveshapes are shown
below, in their relative phase
positions (although, of course,
only one waveshape can exist at a
time).
AC Voltage —
Available Waveshapes with their Relative Phase
Sinusoidal
Square
Impulse
Triangular
Trapezoidal
A frequency limit of 1kHz is placed on all outputs with non-sinusoidal waveshapes.
Each waveshape's form factor results in its own mean/RMS and peak/RMS ratio, so for
the same RMS output value, the peak and mean readings at the top of the screen will
change between waveforms.
