Section 2: Installing the Model 9100 2-5
Final Width = 215mm
2.7.1 Power Input

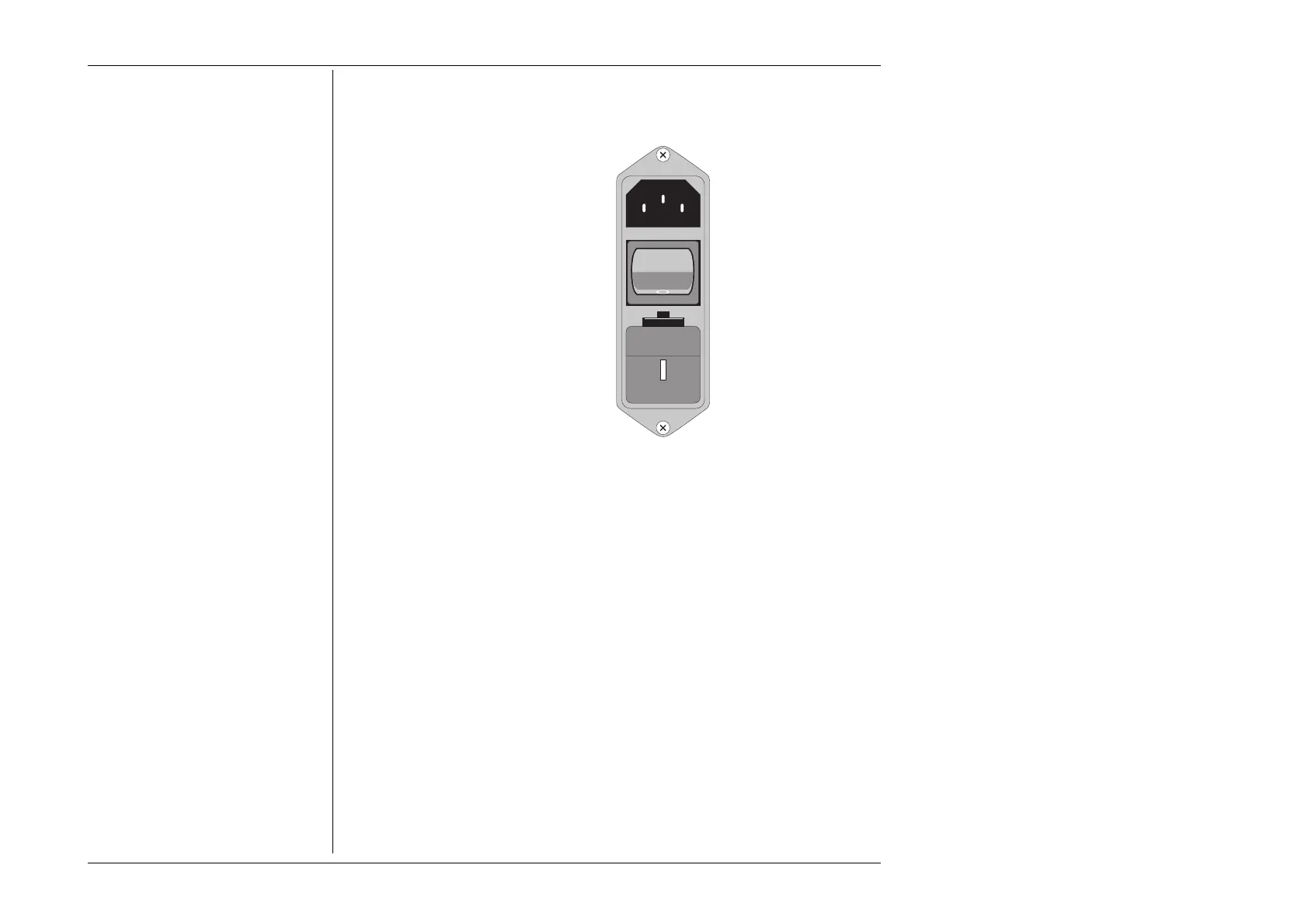

The recessed POWER INPUT
plug, POWER FUSE, POWER
SWITCH and LINE
VOLTAGE SELECTOR are
contained in an integral filtered
module on the left of the rear
panel (looking from behind the
unit).
A window in the fuse drawer
allows the line voltage selection
to be inspected. To inspect the
fuse rating the fuse drawer must
be taken out (Refer to sub-section
2.7.4. First switch off and remove
the power cable).
POWER INPUT
POWER FUSE ( IEC 127 )
100/120 - T 5.0A HBC
220/240 - T 3.15A HBC
POWER 450VA
FREQUENCY 48-63Hz
2.7.2 Power Cable
The detachable supply cable, comprising two meters of 3-core PVC sheath cable
permanently moulded to a fully-shrouded 3-pin socket, fits in the POWER INPUT plug
recess, and should be pushed firmly home.
The supply lead must be connected to a grounded outlet ensuring that the ground lead is
connected. Connect Black lead to Line, White lead to Neutral and Green lead to Ground.
(European: Brown lead to Line, Blue lead to Neutral, and Green/Yellow lead to Ground).
(The UK power plug internal fuse rating is 5A.)
