4.9-2 Section 4: Using the Model 9100: Frequency Function
Final Width = 215mm
4.9.2 Selection of Frequency Function
(Manual Mode selected)
4.9.2.1 'Hz' Key
Frequency Function is selected by pressing the
'Hz' key at the right of the 'CALIBRATION
SYSTEM'
panel.
4.9.2.2 Default Settings
At power-on the system defaults into DC Voltage function. Each time the
Hz key is
pressed, the system defaults into Frequency function.
In cases when Frequency Function has been selected earlier, and either 'Mark/Period' or
'Duty Cycle' is already active, then the Frequency menu screen is opened by pressing the
Hz screen key on the bottom row.
Whenever the Hz menu screen is opened, except on recovery from a standby period, it

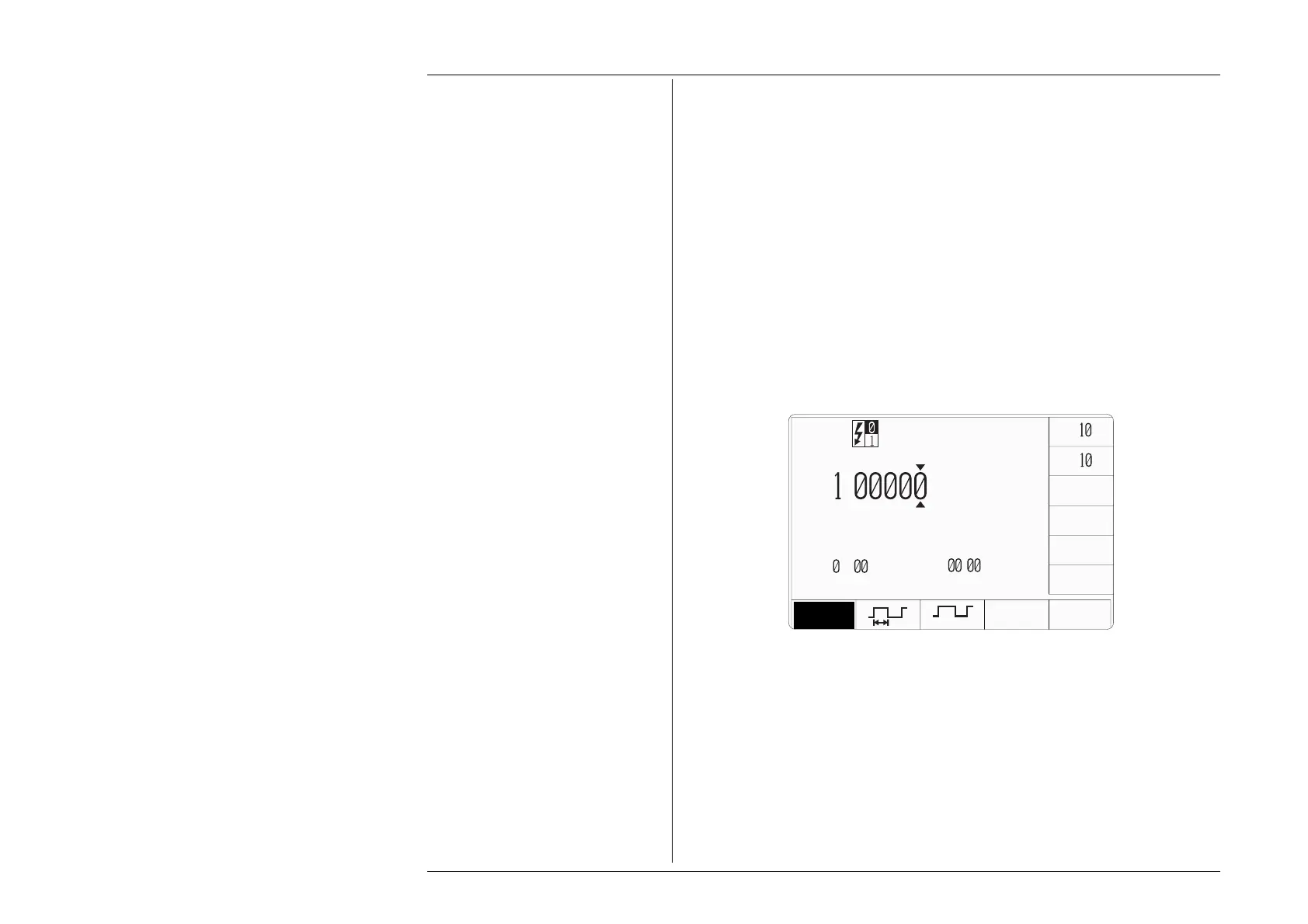

will appear with the following default settings:
TODAYS DATE TIME
x
÷
.
kHz
Hz
Hz
% DUTY
+
5.
V
.
V
