4.14-2 Section 4: Using the Model 9100: Thermocouple Function
Final Width = 215mm
4.14.2 Selection of Thermocouple Function
(Manual Mode selected)
4.14.2.1 'Aux' Key
Temperature is an 'Auxiliary' function. The Auxiliary menu screen is selected by pressing
the
'Aux' key at the right of the 'CALIBRATION SYSTEM' panel.
Temperature is selected by pressing the °C screen key on the bottom row.
4.14.2.2 Default Settings
At power-on, the system defaults into DC Voltage function. Each time the 'Aux' key is
pressed, the system defaults into Auxiliary function.

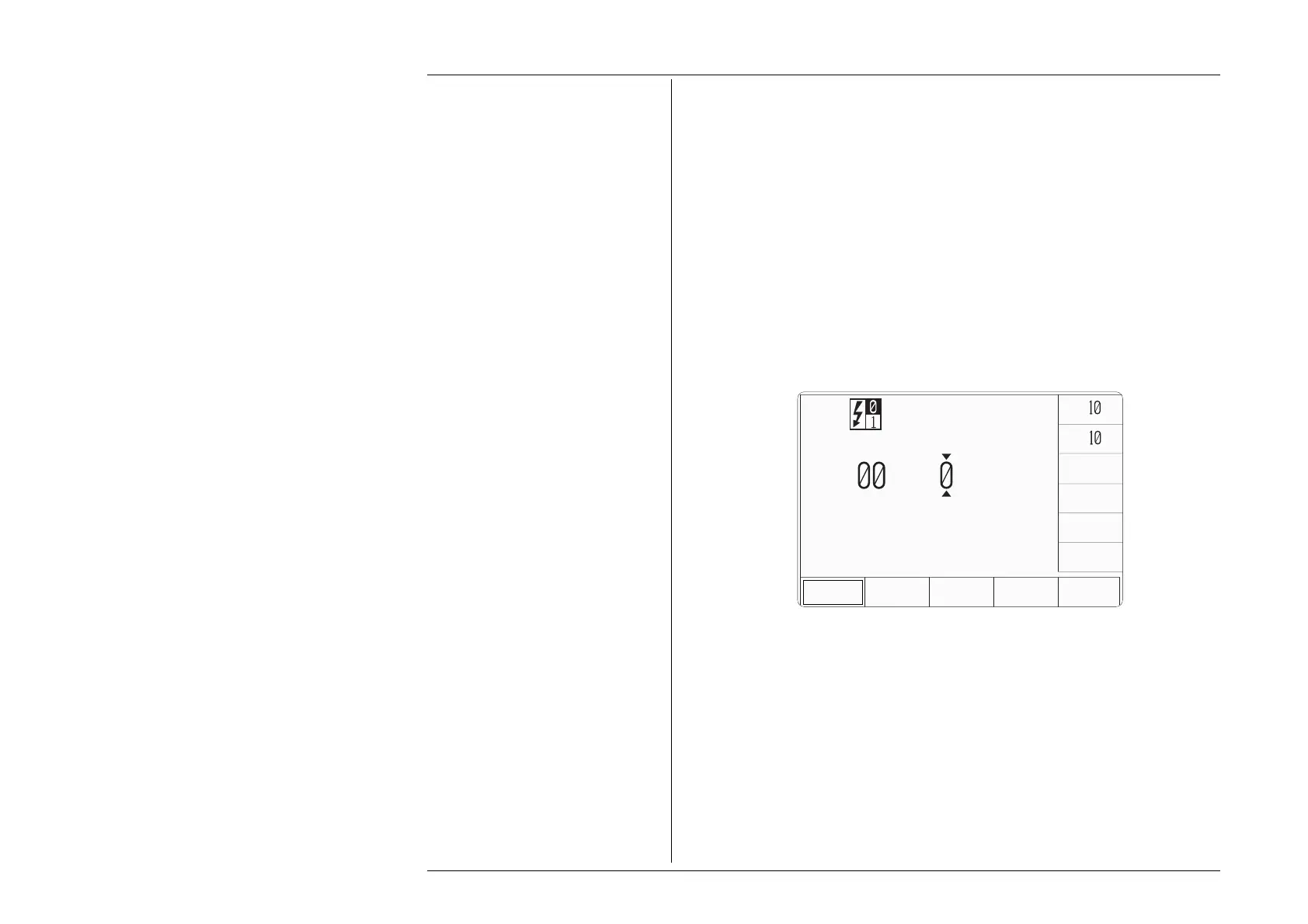

Whenever the Temperature menu screen is opened from a non-temperature function by
pressing the °C screen key on the Auxiliary menu screen, it will appear with the following
thermocouple default settings, and with 'K Type' thermocouple selected:
Once entered into a temperature function, switching between Thermocouple and RTD
function will retain the selected unit of temperature (°C, °F or K) and the selected
temperature scale (IPTS-68 or ITS-90).
If the unit or scale is changed by screen keys, the new selection will persist until a non-
temperature function is selected. Then subsequent reselection of the Thermocouple
function will revert to the default shown above.
