4.21-6 Section 4: Using the Model 9100: AC Harmonics Function - Operation
Final Width = 215mm
4.21.3.2 Right Side Screen Keys
X 10 Multiplies the value in the active edit field by ten.
÷10 Divides the value in the active edit field by ten.
4.21.3.3 Phase-Locking Facilities

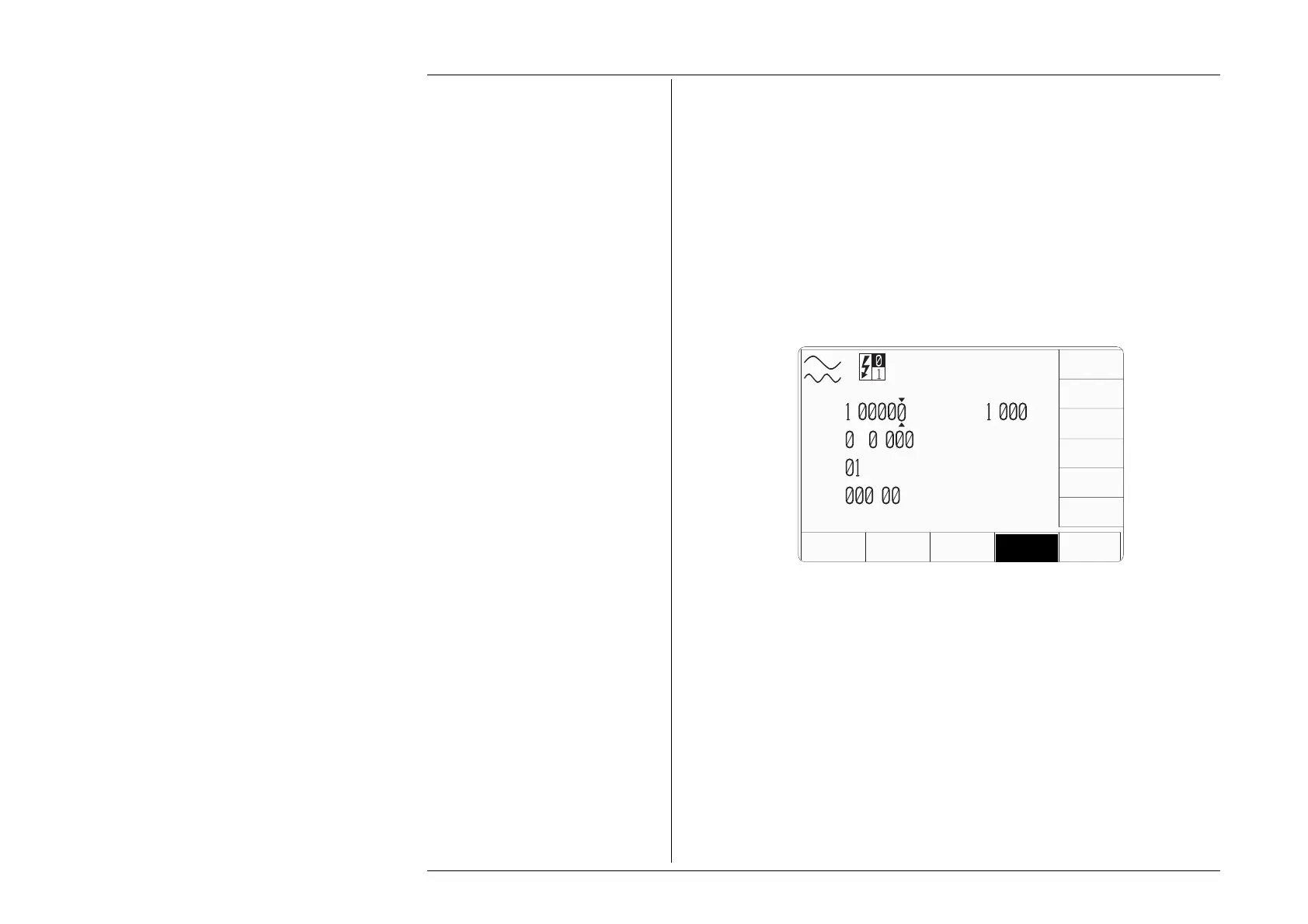

This bottom ∆Φ softkey will bring up a 2-key expansion menu that allows the user to
enable/disable the instrument phase angle field, and the generation of a phase reference
signal. Do not confuse it with Ø. The master channels are those which are phase locked
together.
1
REF OUTPUT enabled will make the instrument the master (when units are phase locked together.
TODAYS DATE TIME
AUX
CHANNEL
MODE
V
A
V = .
V I = .
A
F =
5
.
Hz
H =
ø =
.
°
∆ Φ
REF
OUTPUT
∆ Φ
The two right-hand screen keys that appear have the following functions:-
∆Φ Enables/disables the use of the instrument phase angle field.
Enables/disables the generation of a phase reference
1
signal.
For a complete explanation of this function refer to Section 4.4.3.5, which
refers to instrument facilities and contains several important warnings. The
most important of these warnings are outlined in Section 4.21.3.4 opposite.
REF
OUTPUT
