Section 4: Using the Model 9100: AC Harmonics Function 4.21-5
Final Width = 215mm

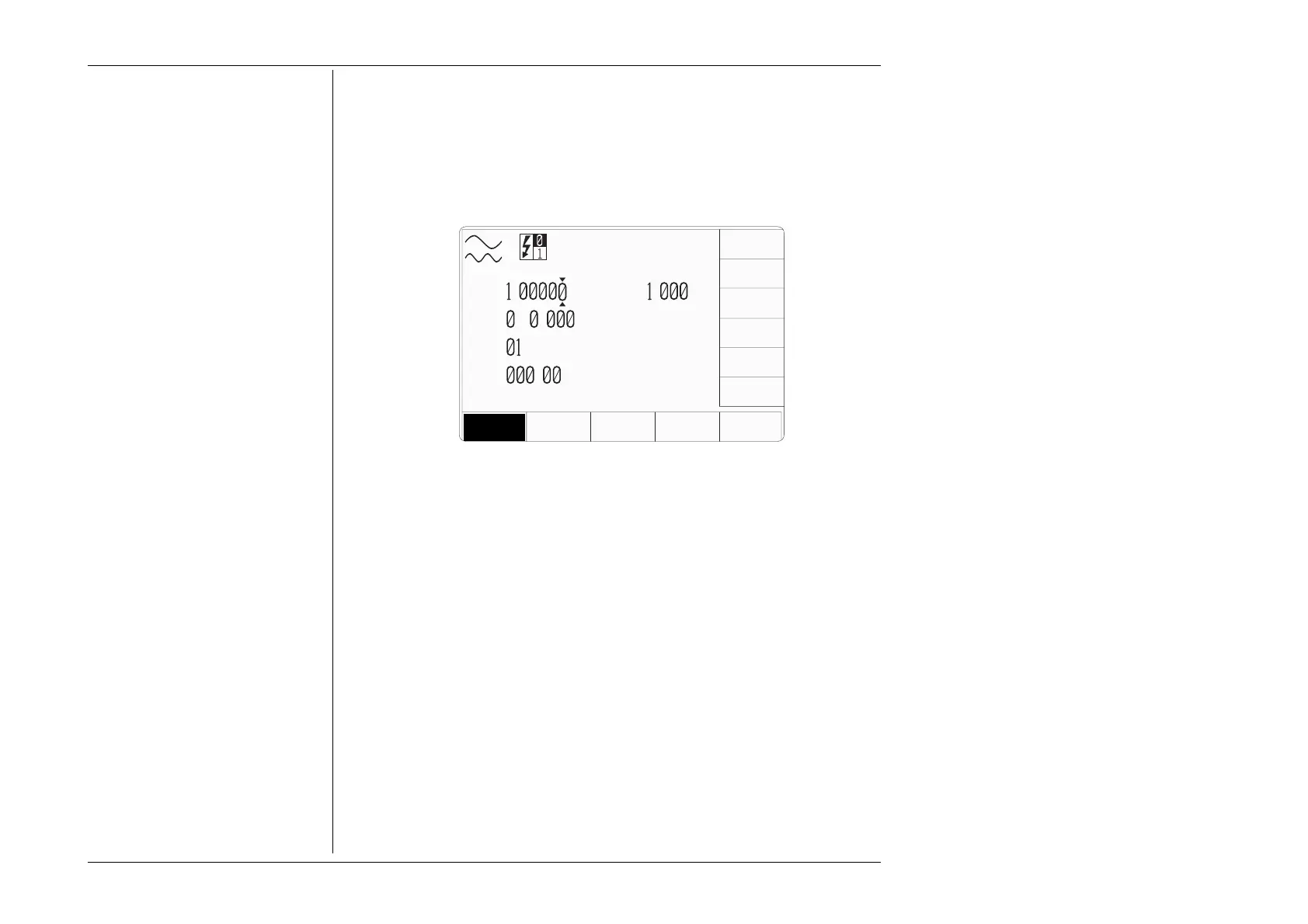

4.21.3 Harmonics Screen Keys
4.21.3.1 Bottom Screen Keys
This softkey will trigger the display of an expansion menu that allows the
Auxiliary output channel’s operating mode to be configured.
The expansion menu contains the following items:-
Configures the Auxiliary channel as a current source.
Configures the Auxiliary channel to provide a simulated current via a
x10 current coil.
Configures the Auxiliary channel to provide a simulated current via a
x50 current coil.
Configures the Auxiliary channel as a voltage source.
This softkey will bring up an expansion menu that allows the user to enable/
disable the instrument phase angle field. For further details refer to Section
4.21.3.3
AUX
CHANNEL
MODE
CURRENT
VOLTAGE
10 TURN
COIL
50 TURN
COIL
∆ Φ
TODAYS DATE TIME
V
A
V = .
V I = .
A
F = 5 . Hz
H =
ø = .
°
∆ Φ
CURRENT
VOLTAGE
10 TURN
COIL
50 TURN
COIL
AUX
CHANNEL
MODE
