4.21-4 Section 4: Using the Model 9100: AC Harmonics Function - Operation
Final Width = 215mm
4.21.2.1 W Key

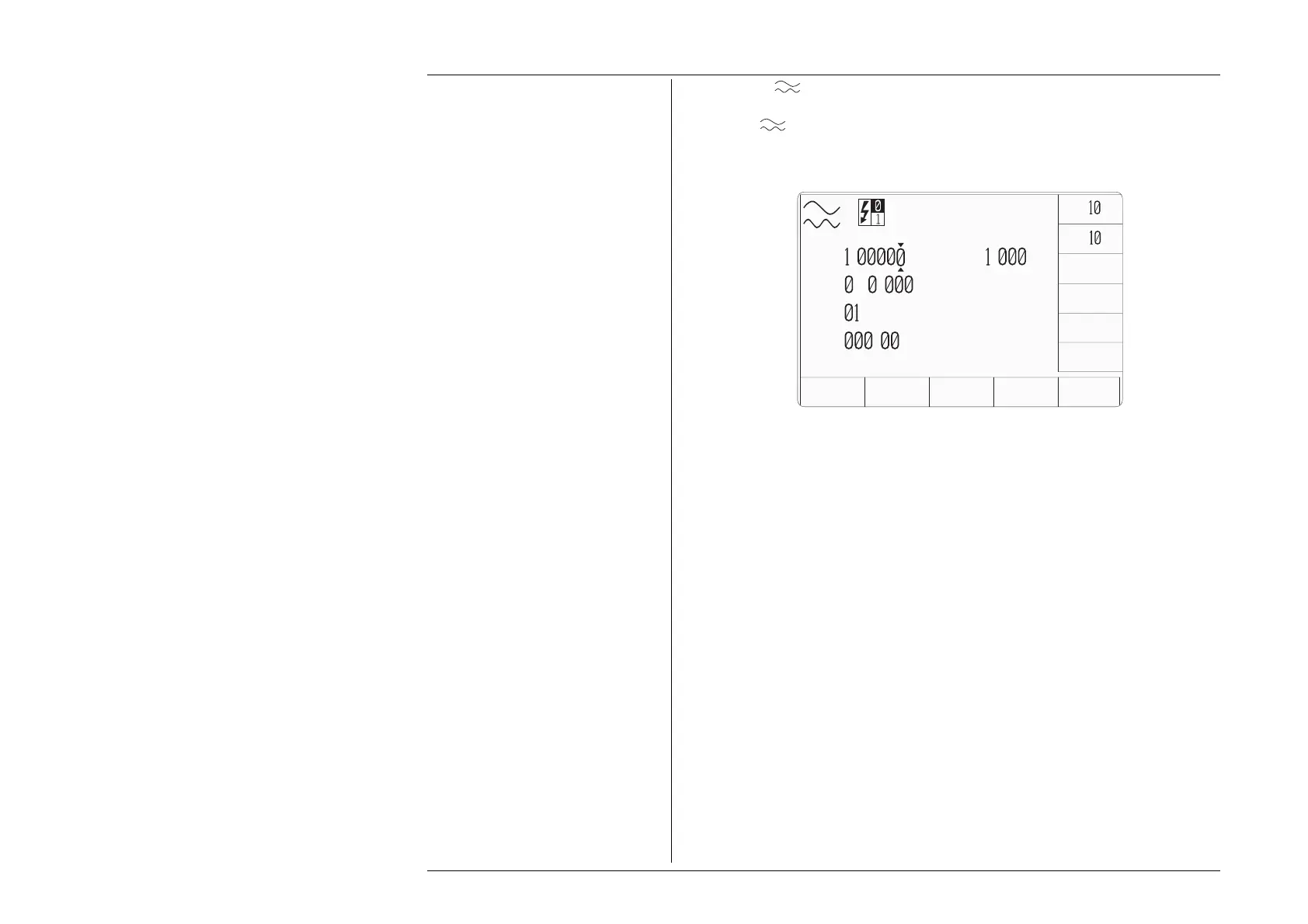

Pressing the
W vertical softkey will result in the display of a default AC Harmonics
function screen similar to that illustrated below.
The AC Harmonics function icon is used to indicate whether auxiliary voltage or one of
the current modes is active. The upper part of the icon refers to the main channel, the lower
the auxiliary channel. The left side of the icon indicates the sine waveshape, the right side,
the output mode. The main channel will always be in voltage mode, the auxiliary channel
can be in voltage or current mode (current is indicated by ‘A’, voltage by ‘V’).
Whenever the AC Harmonics menu screen is opened, except on recovery from a standby
period, it will appear with the following default settings:
V = 1.00000 V
I = 1.000 A
F = as configured.
H = 01 (Setting this to NN sets the harmonic of the auxiliary channel.)
∅
= 000.00 ° (This is the internal phase angle of I or aux V relative to V. It
defines the starting point of the first harmonically related waveform
relative to the 0
° point of the fundamental.)
TODAYS DATE TIME
x
÷
AUX
CHANNEL
MODE
V
A
V = .
V I = . A
F =
5
.
Hz
H =
ø =
.
°
∆ Φ
