3-30 Section 3: Model 9100 Controls: Modes of Operation
Final Width = 215mm
Information only
This line of 'Present Settings' indicates
whether 'Option 250' (250MHz
Oscilloscope Calibration Facility),
'Option 600' (600MHz Oscilloscope
Calibration Facility), or 'None'
(neither), is fitted.

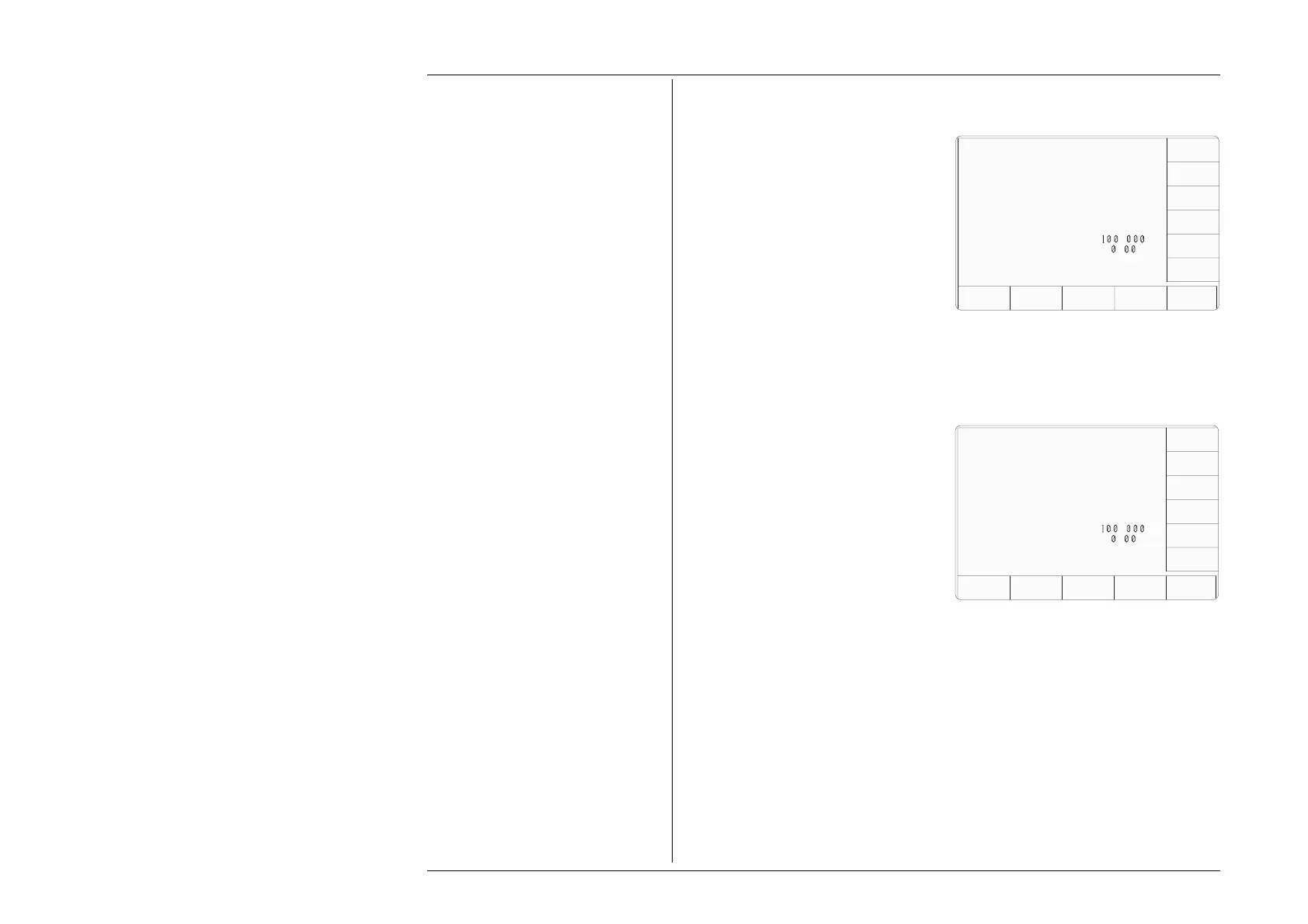

3.3.2.31 'SCOPE OPTION'
TODAYS DATE TIME
Configuration
Present Settings:
Language English
Power-up mode Manual
Bus Address 1
Printer NONE
Results Card Disabled
Safety Voltage
.
V
Border Line
7
.
%
Scope option Option 600
Crystal option High acc
Ser. No. XXXXXX Rev. XXX
VOLTAGE
LIMIT
DATE
TIME
BORDER
LINE
SELECT
LANG
MORE
POWER
UP MODE
BUS
ADDRESS
RESULTS
CARD
PRINTER
CLEAR
USER
LIST
Information only
The bottom line of 'Present Settings'
indicates whether Option 100
(0.25ppm stability clock crystal) is
fitted.
If 'High acc' is shown, this means that
the option is fitted. Without Option
100, the indication will be 'Normal',
with clock crystal stability of 25ppm.
