4.2-2 Section 4: Using the Model 9100: Interconnections
Final Width = 215mm
4.2.3.1 Lead Set Description
General
As can be seen from Fig 4.2.1, the 9105 plugs into the 9100 front panel terminals and D-
type socket, and provides a connection unit (which is fitted beneath the work mat) from
which short leads pass through slots in the mat, to plug into the UUT safety terminals. A
set of adaptors is provided which can be used for UUTs which do not use safety terminals.
Thermocouple Connection
A 15-pin D-type socket is fitted on the end of the connection unit, to accommodate a
Thermocouple Adapter. This includes two reference junctions mounted on an isothermal
block. Two short extension leads (K-type and J-Type) are provided with the kit. The
blade sockets in the end of the adapter conform to the standard thermocouple fitting.
As an alternative, in the absence of a 9105 lead kit, the Thermocouple Adapter can be used
by plugging directly into the D-type socket on the front panel of the 9100.

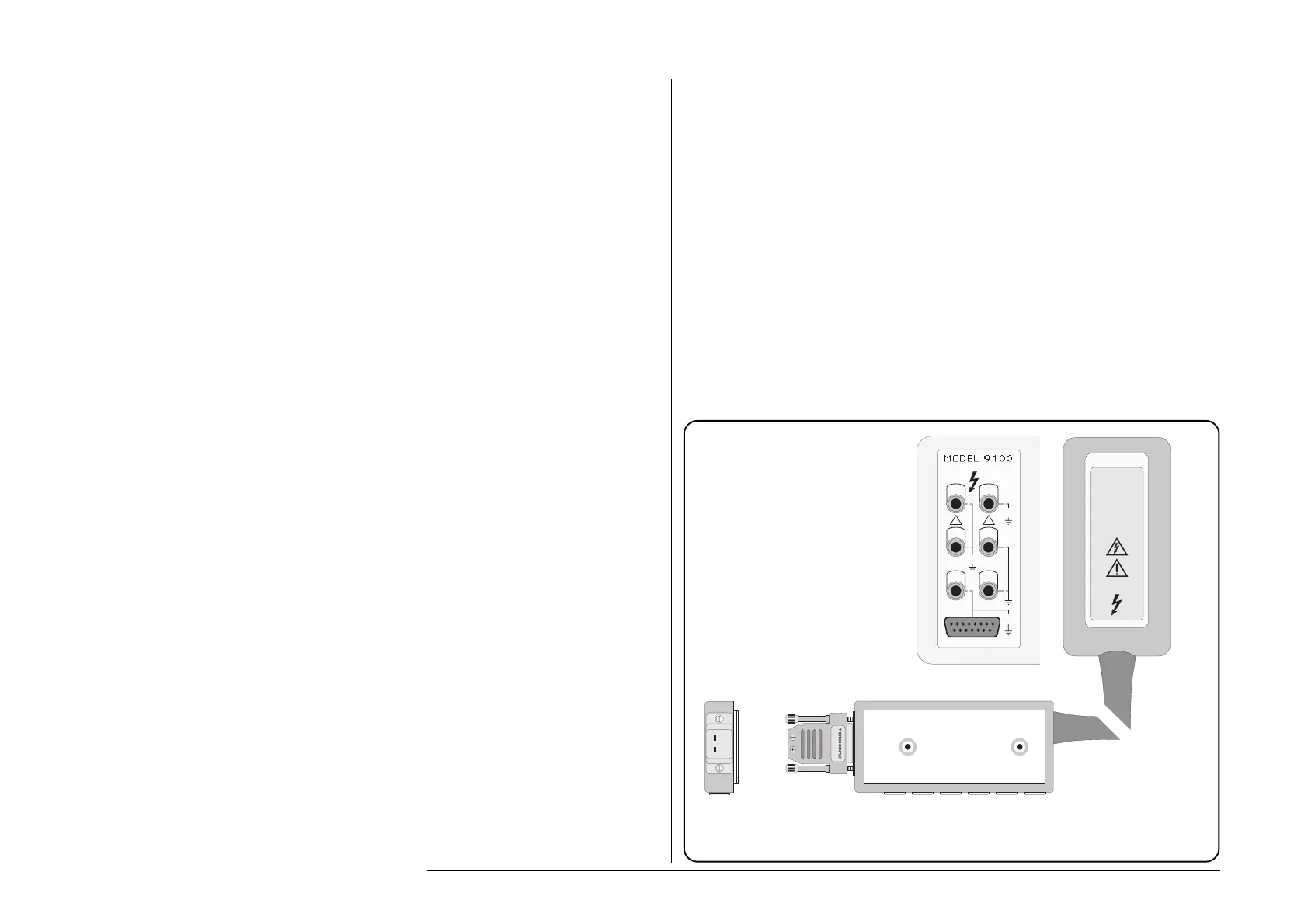

Fig. 4.2.1 Main Elements of Leadset 9105 Connectors
sHi sLo
Hi Lo
I+ I-
!
1500Vpk
max
15Vpk
max
15Vpk
max
HIGH VOLTAGE
DANGER
!
HIGH VOLTAGE
DANGER
9 1 0 5
AA
AA
AA
AA
AA
AA
THERMOCOUPLE
ADAPTER
I+mA
Whi
I+20A
Yel
LI-
Blk
sL
Blk
sH
Red
H
Red
View Looking through
Work Mat
