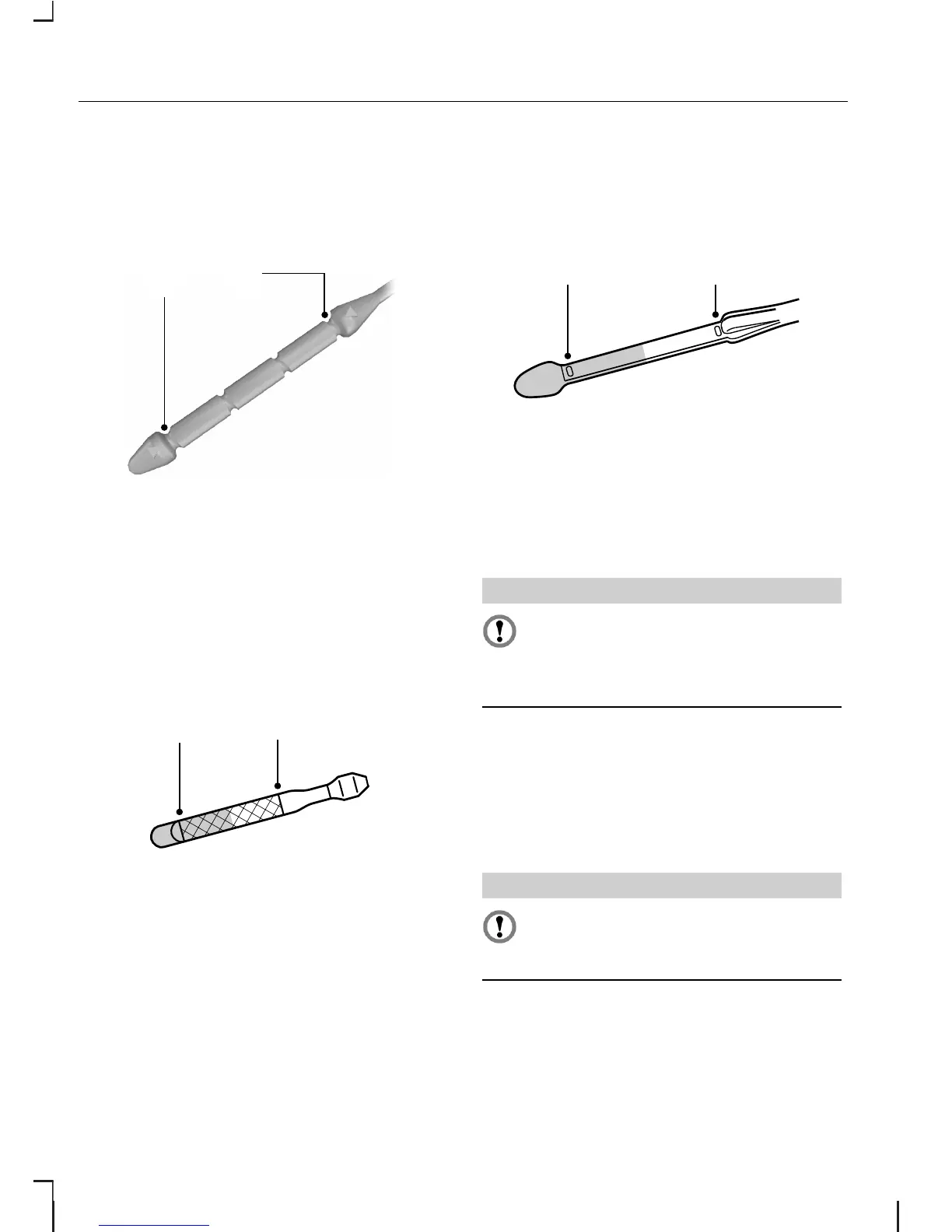

ENGINE OIL DIPSTICK -

1.6L DURATORQ-TDCI

(DV) DIESEL

E90983

A B

MINA

MAXB

ENGINE OIL DIPSTICK -

1.8L DURATORQ-TDCI

(LYNX) DIESEL

E95527

MINA

MAXB

ENGINE OIL DIPSTICK -

2.0L DURATORQ-TDCI

(DW) DIESEL

E95543

MINA

MAXB

ENGINE OIL CHECK

CAUTION

Do not use oil additives or other

engine treatments. Under certain

conditions, they could damage the

engine.

Note:

The oil consumption of new

engines reaches its normal level after

approximately 5 000 kilometres (3

000 miles).

Checking the oil level

CAUTION

Make sure that the level is

between the MIN and the MAX

marks.

Note:

Check the level before starting

the engine.
