Install in the reverse order.

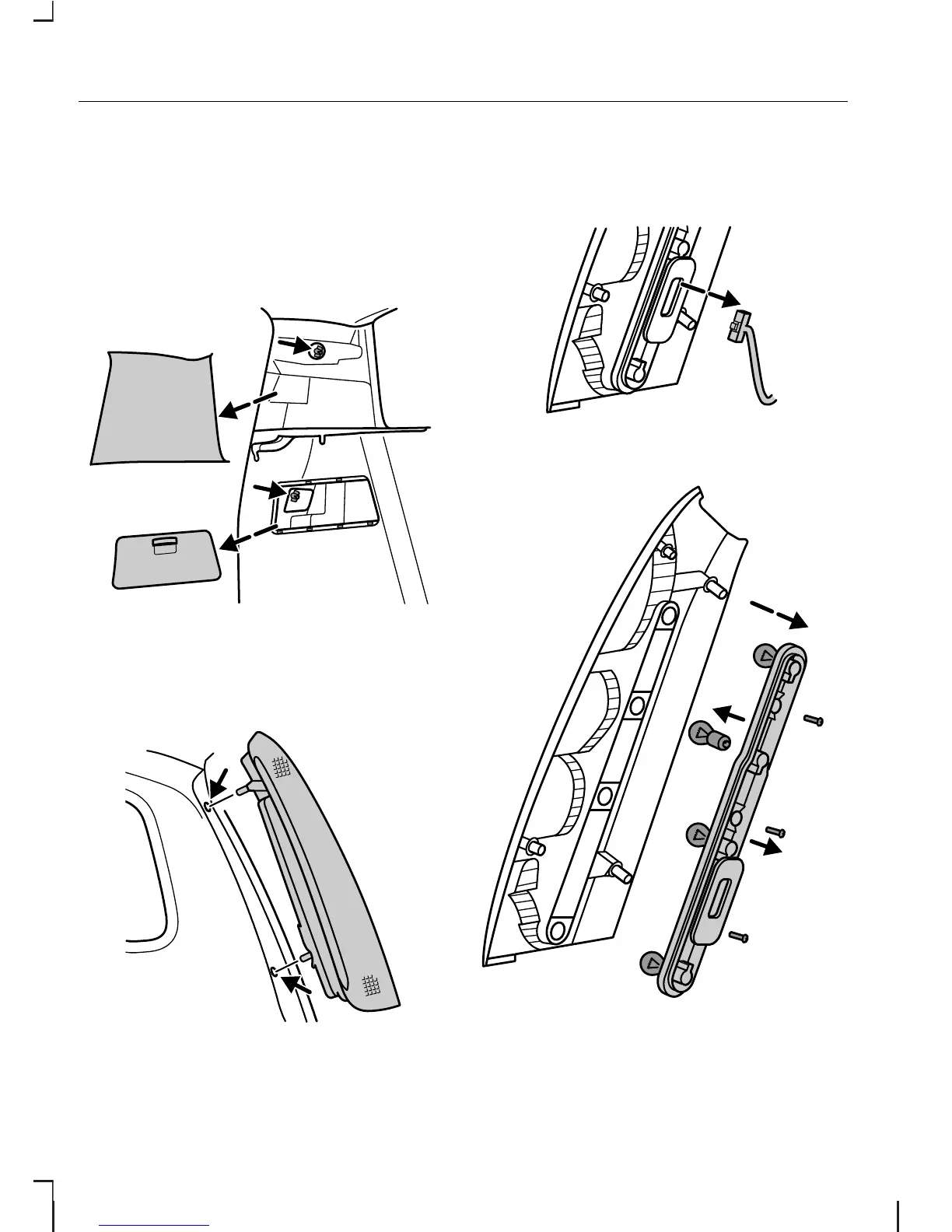

Rear lamps

Open the tailgate.

Remove the pillar panel trim inside

the luggage compartment.

E78122

Remove the sidewall panel trim to

gain access to the second wing nut.

Remove the wingnuts. Make sure the

wing nuts do not fall into the opening.

E78123

Pull off the rear lamp assembly out

of the two plastic retainers on the

body panel.

E78124

Disconnect the wiring connector.

E78125

Loosen the screws and remove the

complete bulb holder.

Lighting
