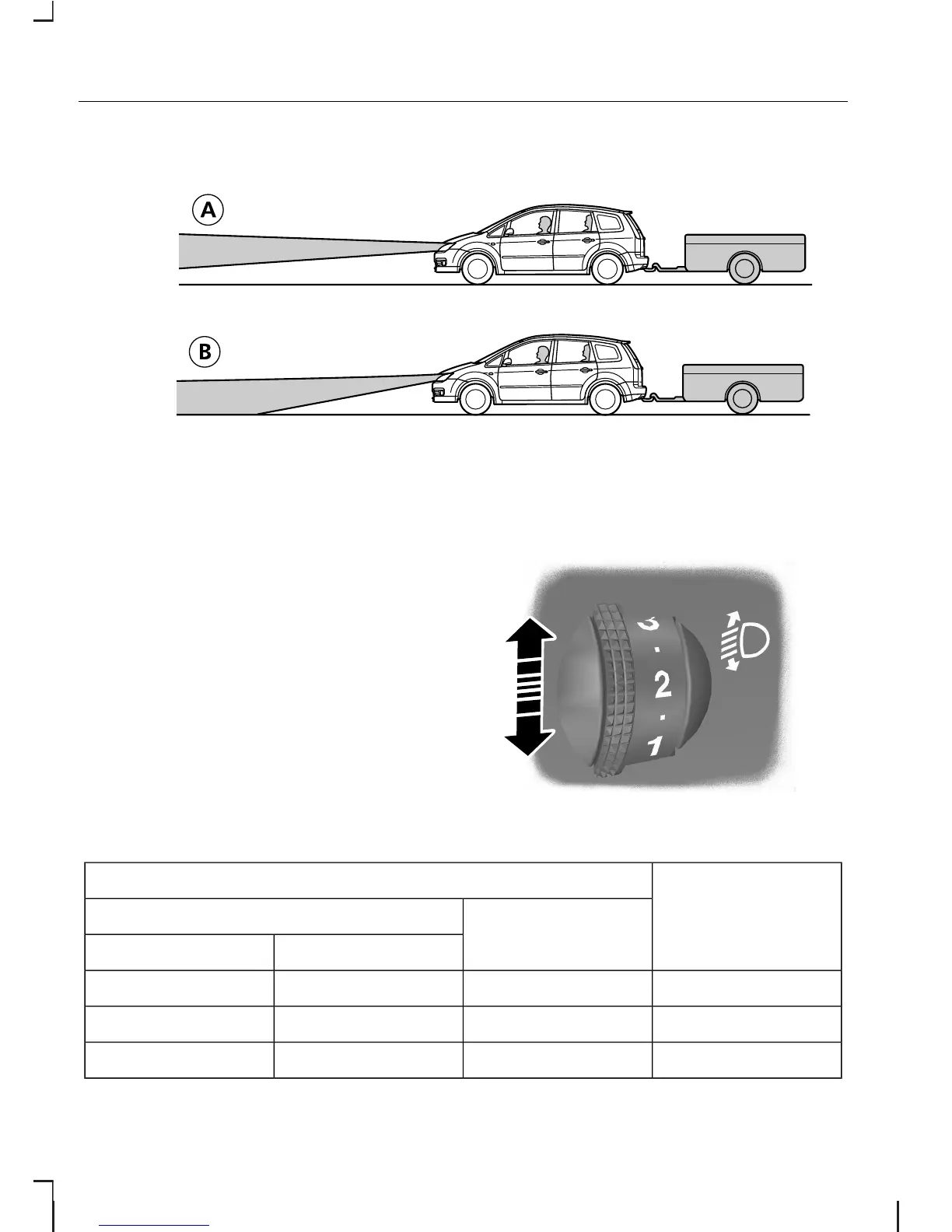

HEADLAMP LEVELLING
E78044
Without headlamp levelling
A
With headlamp levelling
B
The level of the headlamp beams can
be adjusted according to the vehicle
load.
E65990
Recommended headlamp levelling control positions
Control position
Load
Load in luggage
compartment
1
Persons
Rear seats
Front seats
0
-
-
1-2
1
-
3
1-2
2
max.
3
1-2
66
Lighting
67
69
