Disconnect the wiring connector.
Install in the reverse order.

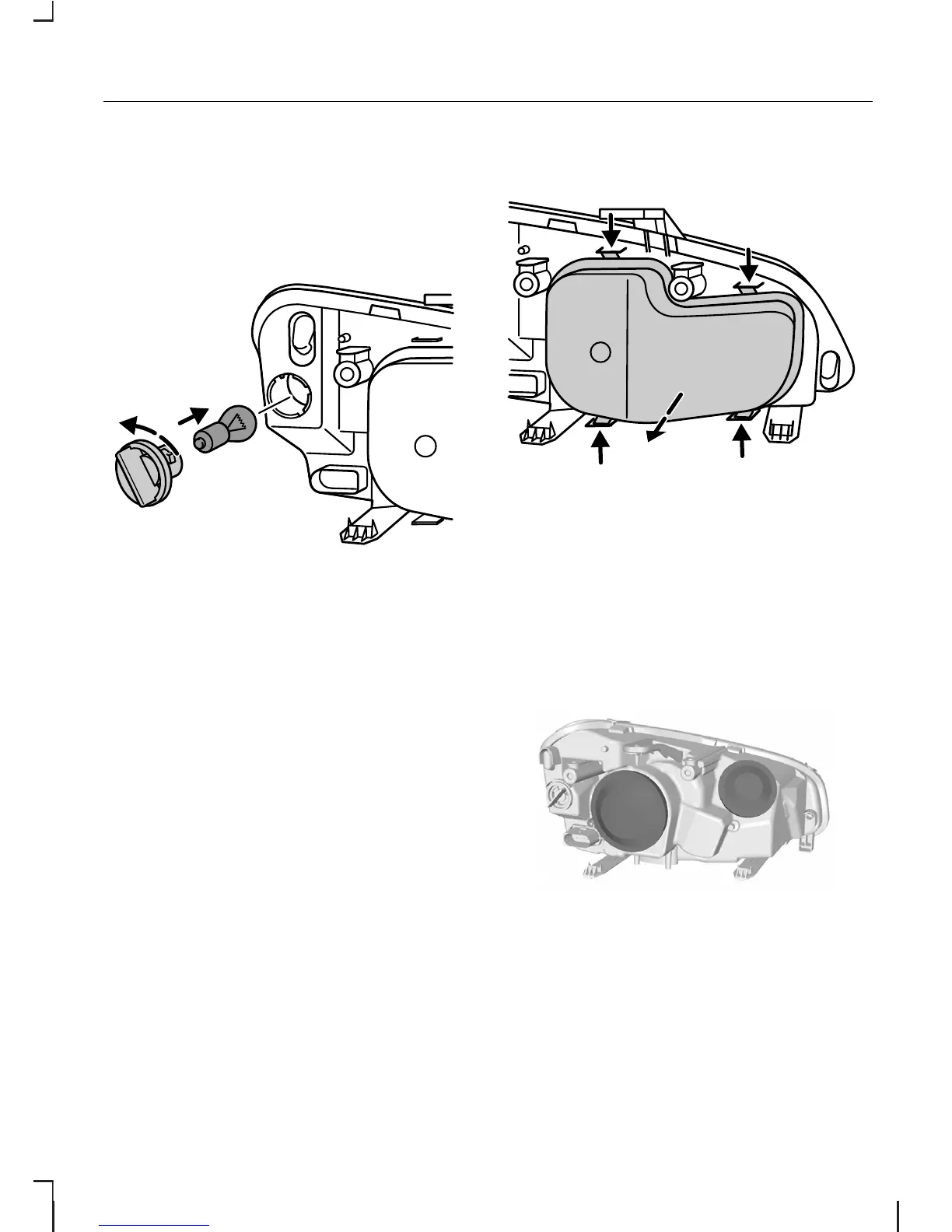

Front direction indicators
PY21 watt spherical bulb, orange
•
Turn the bulb holder anticlockwise
and pull out.
•
Turn the bulb under slight
pressure anticlockwise and
remove it.
•
Replace the bulb.
When installing, pay attention to the
guide tabs.
Opening the headlamp
assembly (Type 1)
Note:
When replacing the cover,
ensure that no wires are trapped at
the seals and that the clips engage
with a distinct click.
Release the clips and remove the
cover.
Opening the headlamp
assembly (Type 2)
Remove the rubber caps.
Headlamps – dipped beam
(Type 1)
H7, 55 watt halogen bulb
75
Lighting
