Fox Thermal FT3 - Page 12

DISPLAY/PASSWORD
DSP IR PSW EXIT
DSP1L1=FLo rate
NXT OK
FLo rate
Total
Elps
Temp
Alarm
DSP1L2=Temp
NXT OK
DSP2L1=Alarm
NXT OK
DSP2L2=Elps
NXT OK
ALTERNATE=Off
NXT OK
On
Off
PASSWD=1234
CHG OK
FLo rate
Total
Elps
Temp
Alarm
FLo rate
Total
Elps
Temp
Alarm
FLo rate
Total
Elps
Temp
Alarm
When alternate
"ON", flashes
between the 2
displays
Display 1
Line 1
Display 1
Line 2
Display 2
Line 1
Display 2
Line 2
IR KEY=Enabled
NXT OK
Enabled
Disabled
Model FT3
Introduction | 12
Introduction

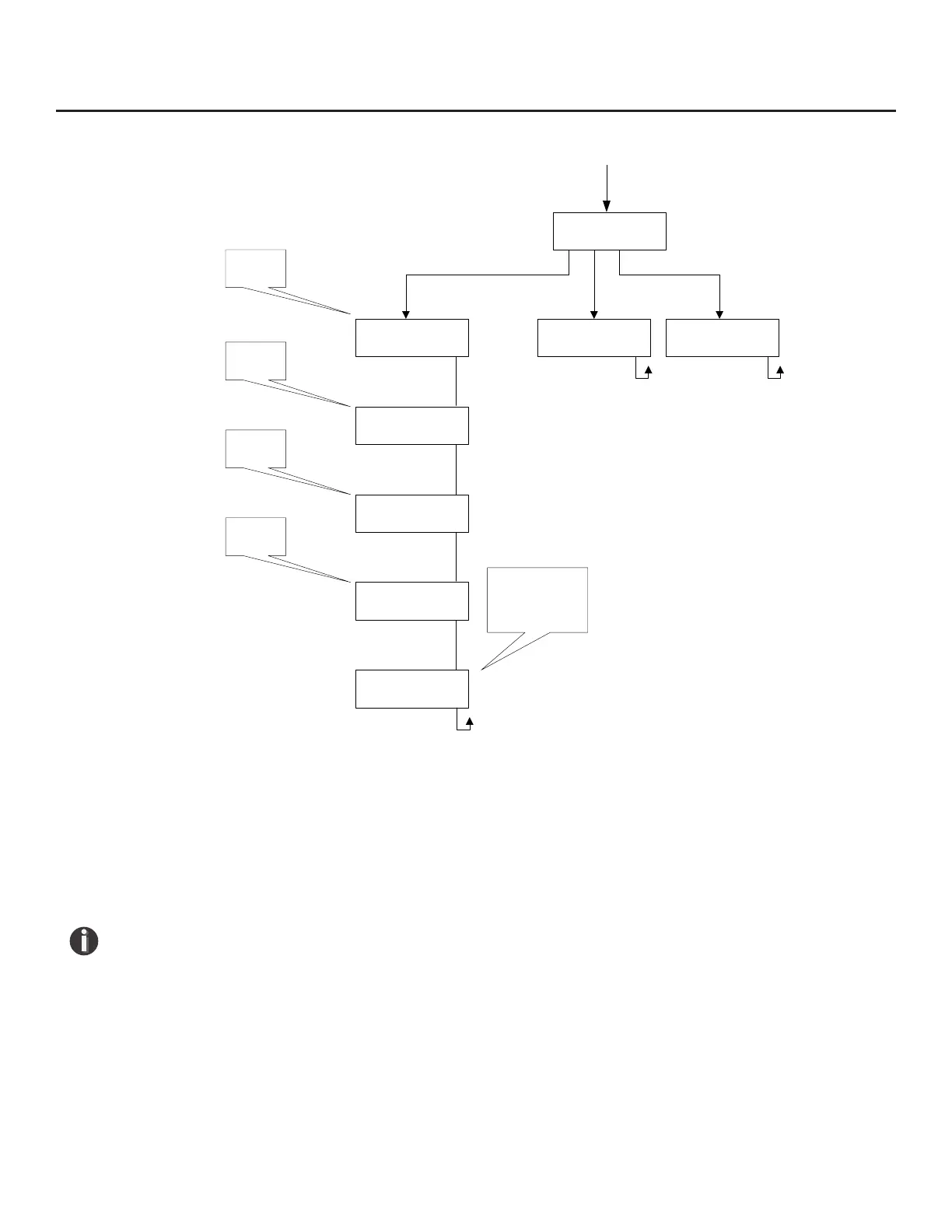

Fig. 1.5: FT3 Menu Tree - Display Menu
NOTE! All readings updated every second
• Flo Rate = Flow rate of process gas
• Total = Total ow of process gas
• Elps = Elapsed time since reset of ow total
• Temp = Temperature of process gas
• Alarm = Notication of errors; diagnostic errors
