PV series Solar Pumping Inverter
- 17 -
Main winding
Secondary
winding
U1
U2
Z1
Z2
M
(-) (+) PB
PV100
KM1
L1
L2
U
V
W
220VAC

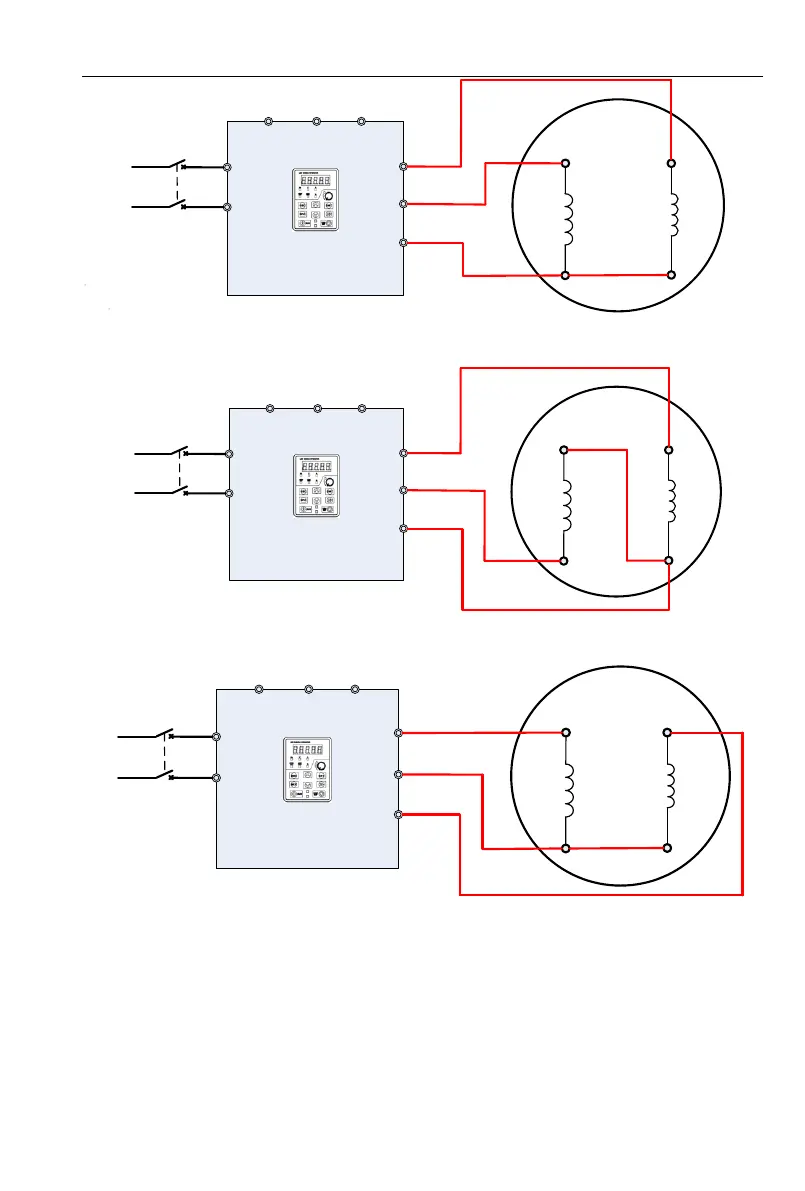

Figure 2-11 Forward wiring between PV100 VFD and motor
Motor reverse can’t be completed through parameter setting of inverter or change any two
phase wirings, motor reverse wiring must be as below:
Main
winding
Secondary
winding
U1
U2
Z1
Z2
M
(-) (+) PB
PV100
KM1
L1
L2
U
V
W
220VAC
Figure 2-12 Reverse wiring between PV100 VFD and motor
Motor forward and reverse wiring of 0.75Kw/220V PV200 is same with PV100, and wiring of
PV200 above 0.75kW are as below:
Main winding
Secondary
winding
U1
U2
Z1
Z2
M
(-) (+) PB
PV200
KM1
L1
L2
U
V
W
220VAC
Figure 2-13 Forward wiring between VFD PV200 (Above 0.75Kw) and motor
