Frecon PV Series - 1.3 Dimension Drawing

PV series Solar Pumping Inverter
- 8 -
Protection
Built-in Protection
Lighting Protection, over-current, overvoltage, output phase-lose,
under-load, under-voltage, short circuit, overheating, water pump run
dry etc.
General Parameters
Application Site
No direct sunshine, no dust、corrosive gas、combustible gas、oil mist、
steam、dripping or salinity etc.
Altitude
0～2000 m
Derated use above 1000m,per 100m, the rated output current
decrease 1%.
Environment
Temperature
-10℃～40℃ (Environment Temperature be 40℃～50℃, please
keep derated use.)
Humidity
5～95%,non-condensation
Vibration
less than 5.9 m/s
2
（0.6g）
Storage Temperature
-20℃～+70℃
Efficiency
Rated Power Run≥93%
Installation
Wall or rail mounting
Protection Grade
IP20
Cooling
Forced Air Cooling
1.3 Dimension Drawing
1.3.1 PV100

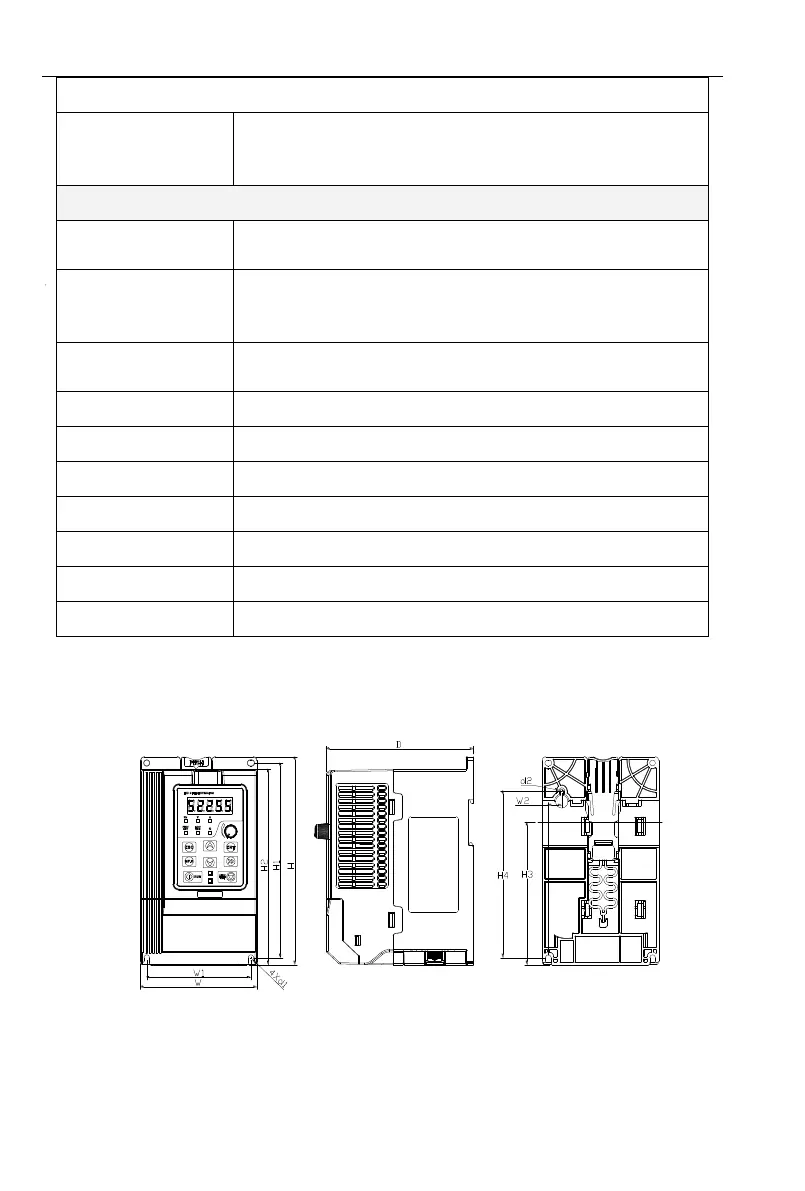

Table 1-3 PV100 Size Table
