Frecon PV Series - Chapter Two Commissioning Guide; 2.1 PV Panel Power Supply Commissioning

PV series Solar Pumping Inverter
- 11 -
Chapter Two Commissioning Guide
2.1 PV Panel Power Supply Commissioning
1. Wiring drawings of below inverters shown as Figure 2-1: PV100 series, PV200 series 3 phase 220V
inverters with power lower than 15kw and 3 phase 380V inverters with power lower than 30kw.
PV panels
Q1
R/L1
S/L2
T/L3
+24V
DI1
DI2
DI3
DI4
DI5
DI6
+10V
AI1
AI2
GND
PE
U/T1
V/T2
W/T3
485+
485-
GND
R1A
R1B
R1C
M
(-) (+) PB
PV200
Y2/HO
PLC
DI7/HI
COM
AI3
AO1
GND
+24V
Y1
AO2
GND
R2A
R2B
R2C
+
-
Note: The common
terminal of PV100 is
GND.
Tank
The water
level sensor
RUN/STOP
Short film
Operation panel

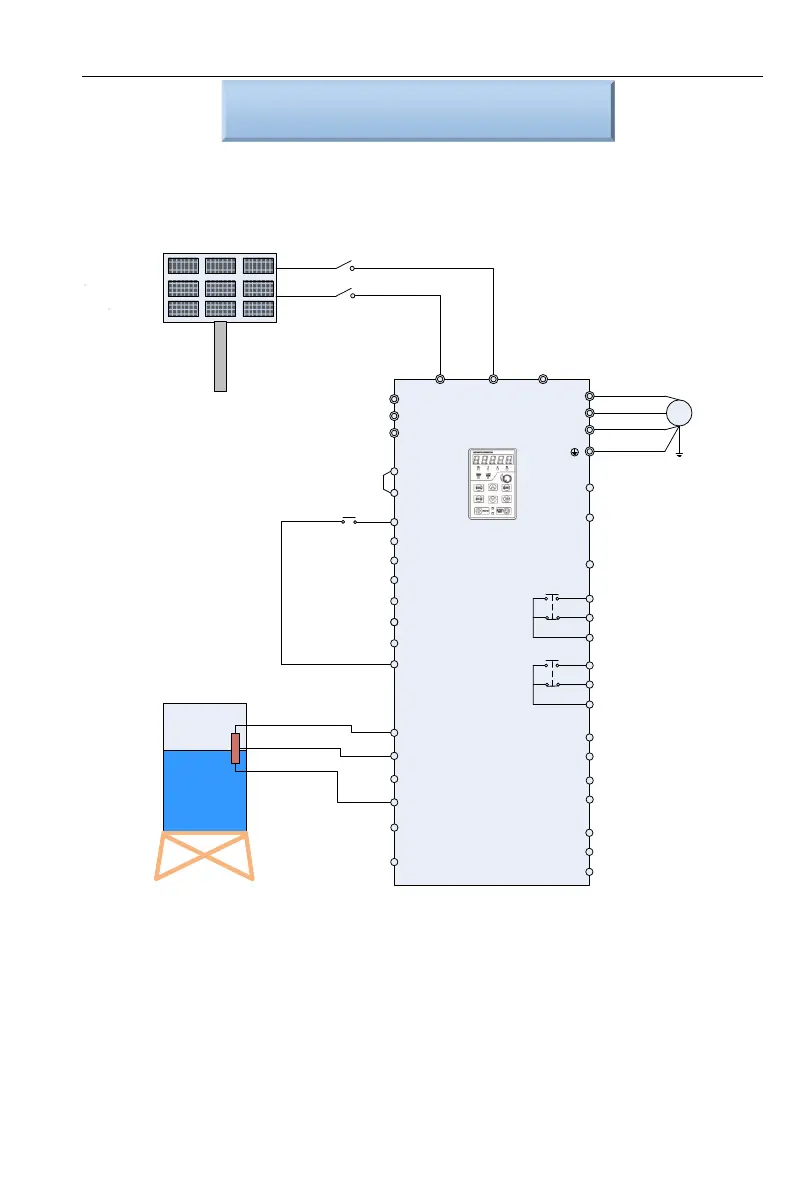

Figure 2-1 PV Cell Power Supply Wiring Diagram 1
Wire drawings of below inverters shown as Figure 2-2: PV200 series 3 phase 220V inverters with
power higher than 18kw and 3phase 380V inverters with power higher than 37kw.
