Frick QUANTUM LX - Enhanced Analog Board #1 Pictorial

S90-020 M FRICK
®
QUANTUM™ LX COMPRESSOR CONTROL PANEL
Page 24 MAINTENANCE

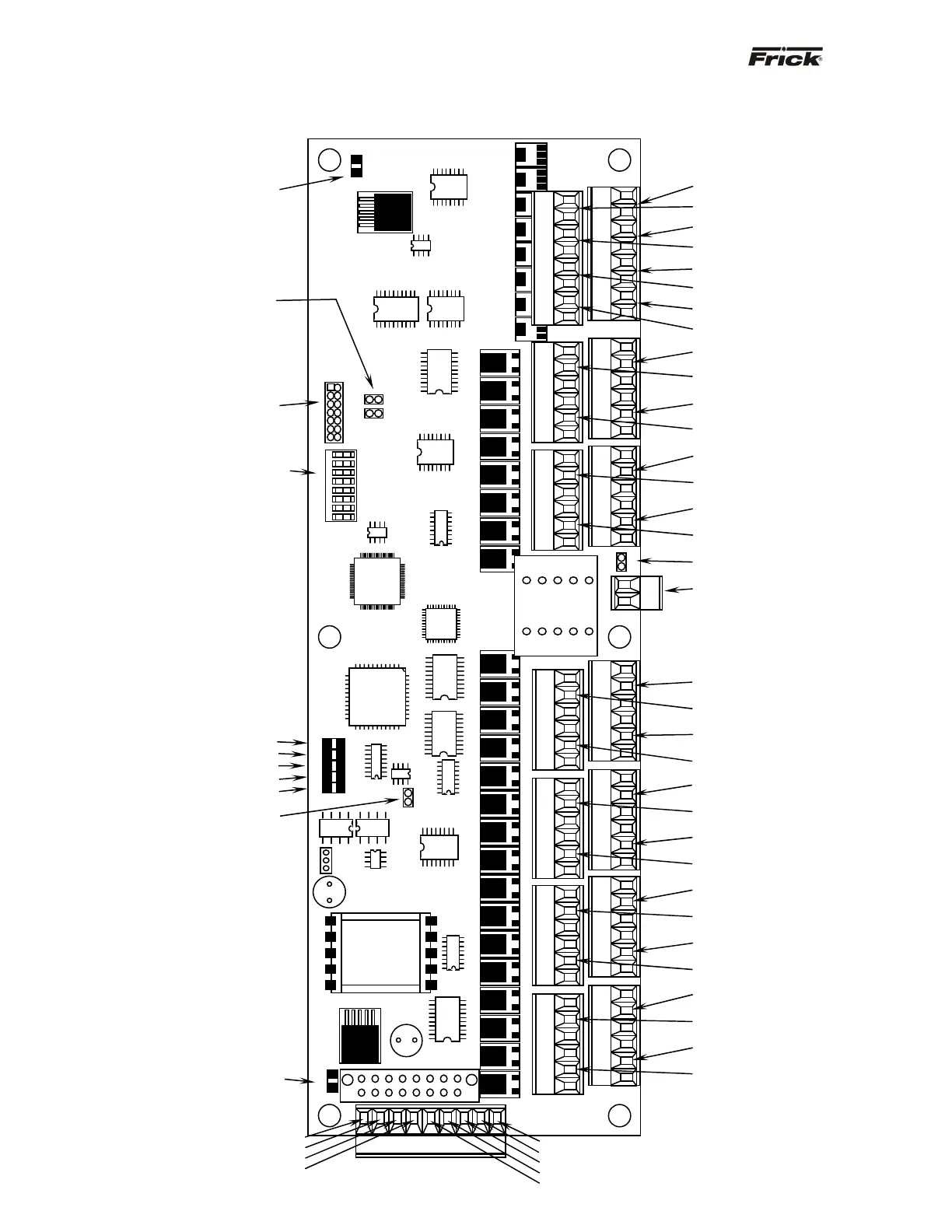

ENHANCED ANALOG BOARD #1 PICTORIAL
C4
C25
U9
P1 - J-TAGG Port
SW1 - DIP Switch
(See Settings Chart)
LK3 & LK4 -
Install for Vibration
Sensor Gain
(When needed)
D5 - +24Vdc Power LED
Output CH. 1 - PID / Programmable
Output
Output CH. 5 - (Future)
Output CH. 2 - PID / Programmable
Output
Output CH. 6 - (Future)
Output CH. 3 - Slide Valve Position /
Programmable Output
Output CH. 7- (Future)
Output CH. 4 - Remote Control
Setpoint Output
Output CH. 8 - (Future)
PhD CH. 1 - Comp. Vibration (Suction)
PhD CH. 3 - Comp. Motor Vibration or
Bearing Temp. RTD (Shaft Side)
PhD CH. 2 - Comp. Vibration
(Discharge)
PhD CH. 4 - Comp. Motor Vibration or
Bearing Temp. RTD (Opposite Shaft)
PhD CH. 5 - Motor RTD - Stator # 1
PhD CH. 7 - Motor RTD - Stator # 3
PhD CH. 6 - Motor RTD - Stator # 2
PhD CH. 8 - (Future)
CH. 16 - Current Transformer (CT) -
Standard (Install LK2)
LK 2 - Install jumper for CH. 16 CT,
Remove for CH. 16 Motor Amps
LK2
P8
T1
Part #: 640D0168H01 Revision: Serial #:
P1
LK3
LK4
1
2
3
4
5
6
7
8
SW1
Open
U4
U7
U8
U6
U1
LK1
U15
U3
U2
P4A (Inputs)
(CH1) (CH2)
P4B (Inputs)
(CH3) (CH4)
P5A (Inputs)
(CH5) (CH6)
P5B (Inputs)
(CH7) (CH8)
P6A (Inputs)
(CH9) (CH10)
P6B (Inputs)
(CH11) (CH12)
P7A (Inputs)
(CH13) (CH14)
P7B (Inputs)
(CH15) (CH16)
P9A (Inputs)
(CH17) (CH18)
P9B (Inputs)
(CH19) (CH20)
P10A (Inputs)
(CH21) (CH22)
P10B (Inputs)
(CH23) (CH24)
P11B (Outputs)
(CH5) (CH6) (CH7) (CH8)
P11A (Outputs)
(CH1) (CH2) (CH3) (CH4)
U10
U20
U19
U21
U11
U24
U22
U12
D5
24VDC
D1
5VDC
D9 Act
D3 CRx
D2 CTx
D7 Rx
D8 Tx
P2
P12
U15
U16
U14
U17
U18
U13
U23
+5 Vdc
+12 Vdc
-12 Vdc
GND
D9 - Active LED
D3 - CANBUS Rx LED
D2 - CANBUS Tx LED
D7 - COMM Rx LED
D8 - COMM Tx LED
LK1 - Install for 120 ohm
terminator on RS-485
Communications
CAN-GND
CAN-L
CAN-H
+Tx/+Rx
-Tx
/
-Rx
D1 - +5Vdc Power
CH. 5 - Leaving Process Temperature
CH. 7 - Filter Pressure
CH. 6 - Oil Pressure
CH. 8 - Discharge Pressure
CH. 1 - Suction Temperature
CH. 3 - Oil Temperature
CH. 2 - Discharge Temperature
CH. 4 - Separator Temperature
CH. 9 - Suction Pressure
CH. 11 - System Discharge
CH. 10 - Balance Piston Reg.
(If Required)
CH. 12 - Remote Control Setpoint
CH. 13 - Remote 4-20 mA Slide Valve
Position
CH. 15 - Slide Stop
CH. 14 - Slide Valve
CH. 16 - Motor Amps - Alternate
(Remove LK2)
