Frick QUANTUM LX - Control Center Assemblies; Rdb; Rwb II; Rwf; Rxf (58 - 101)

FRICK
®
QUANTUM™ LX COMPRESSOR CONTROL PANEL S90-020 M
MAINTENANCE Page 71

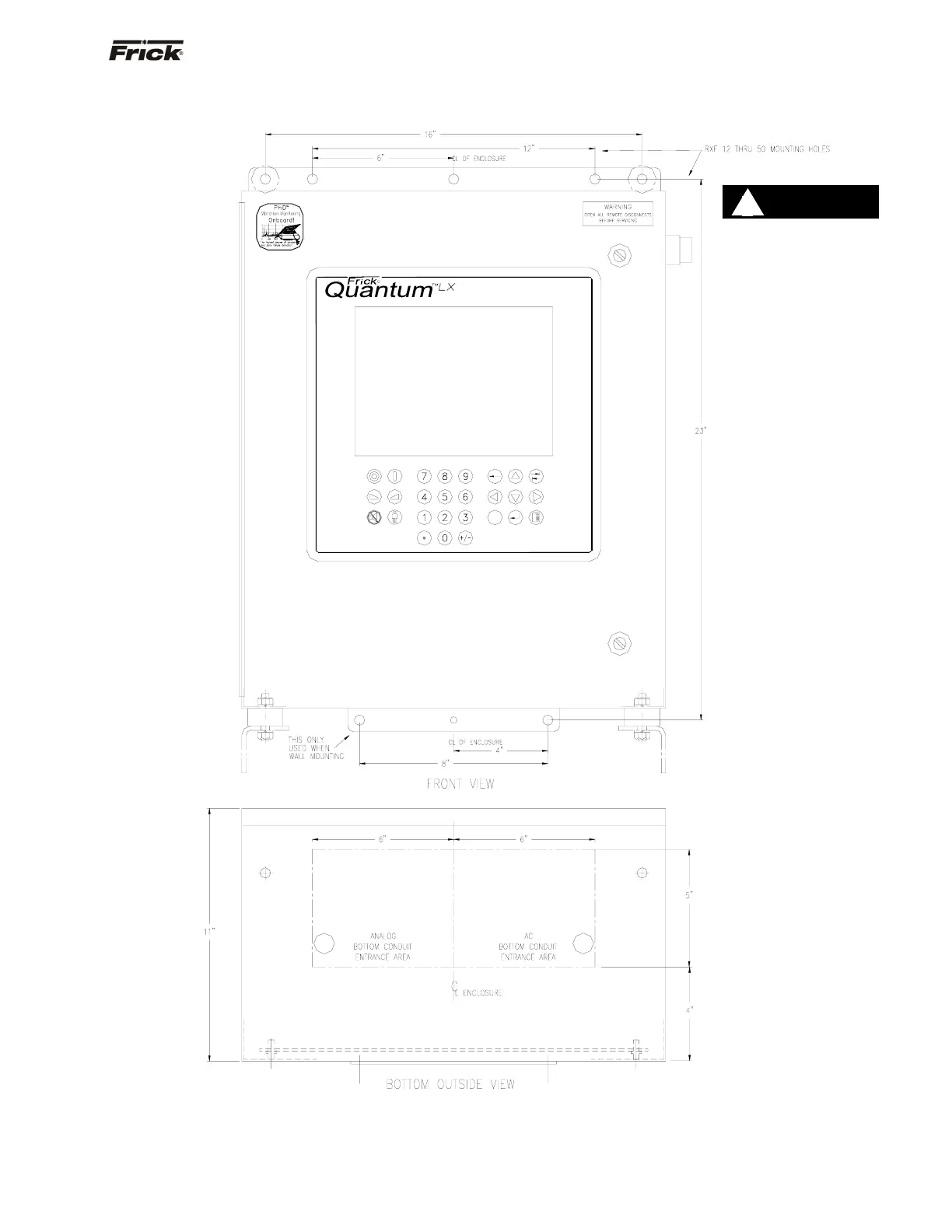

RDB / RWB II / RWF / RXF (58 - 101) CONTROL CENTER ASSEMBLY (Sheet 1 of 4)
QQ
R
This drawing appears here for reference purposes only, and is subject to change without notice. When installing, or servicing
equipment, always refer to the actual drawings that are included with the control panel for the latest information.
Do not drill
through top pf
panel.
DANGER
!
