Frick QUANTUM LX - RXF (12-50) Retrofit Mounting

FRICK
®
QUANTUM™ LX COMPRESSOR CONTROL PANEL S90-020 M
MAINTENANCE Page 75

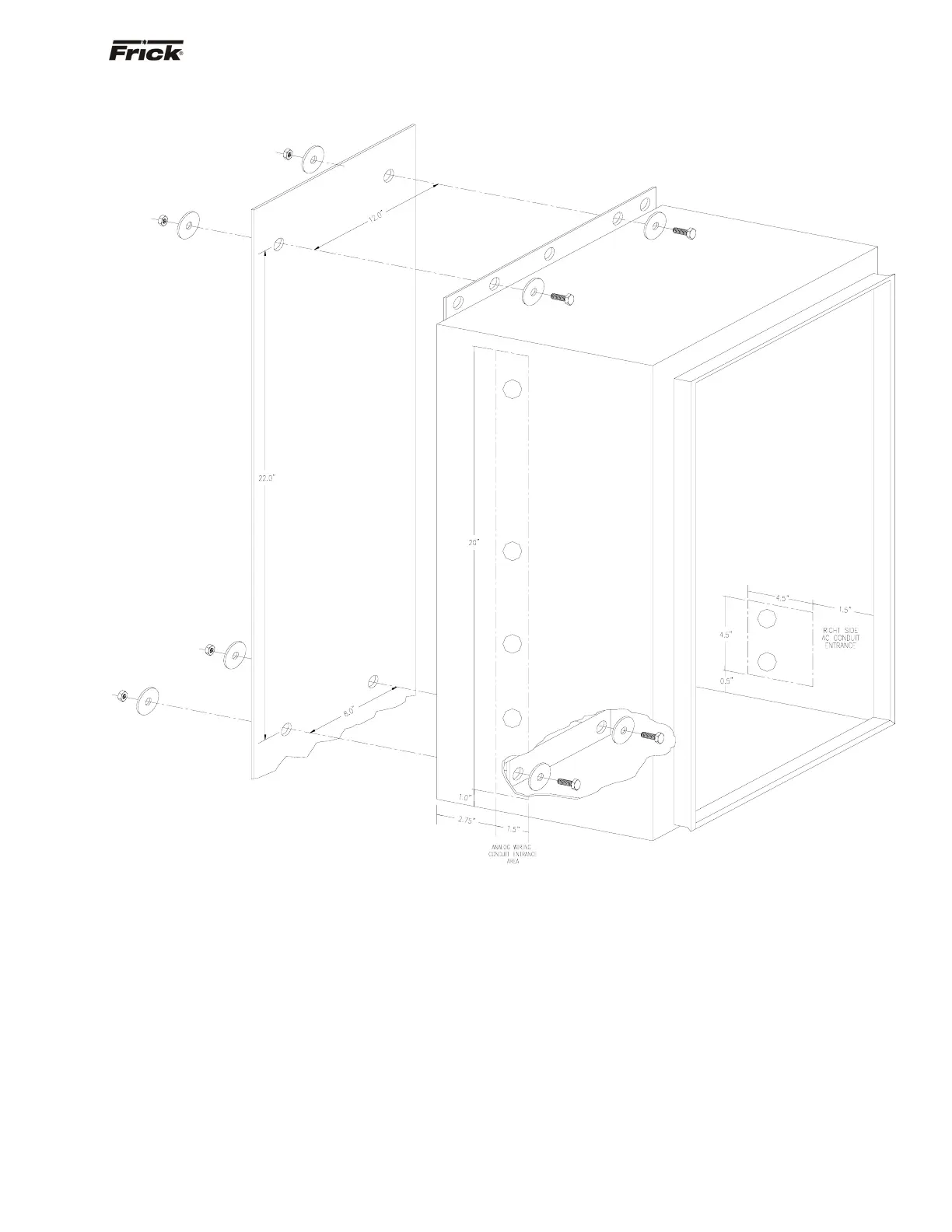

RXF (12-50) RETROFIT MOUNTING
This drawing appears here for reference purposes only, and is subject to change without notice. When installing, or servicing
equipment, always refer to the actual drawings that are included with the control panel for the latest information.
