Frick QUANTUM LX - Quantum Panel DC Power Supply Layout (Power-One)

FRICK
®
QUANTUM™ LX COMPRESSOR CONTROL PANEL S90-020 M
MAINTENANCE Page 37

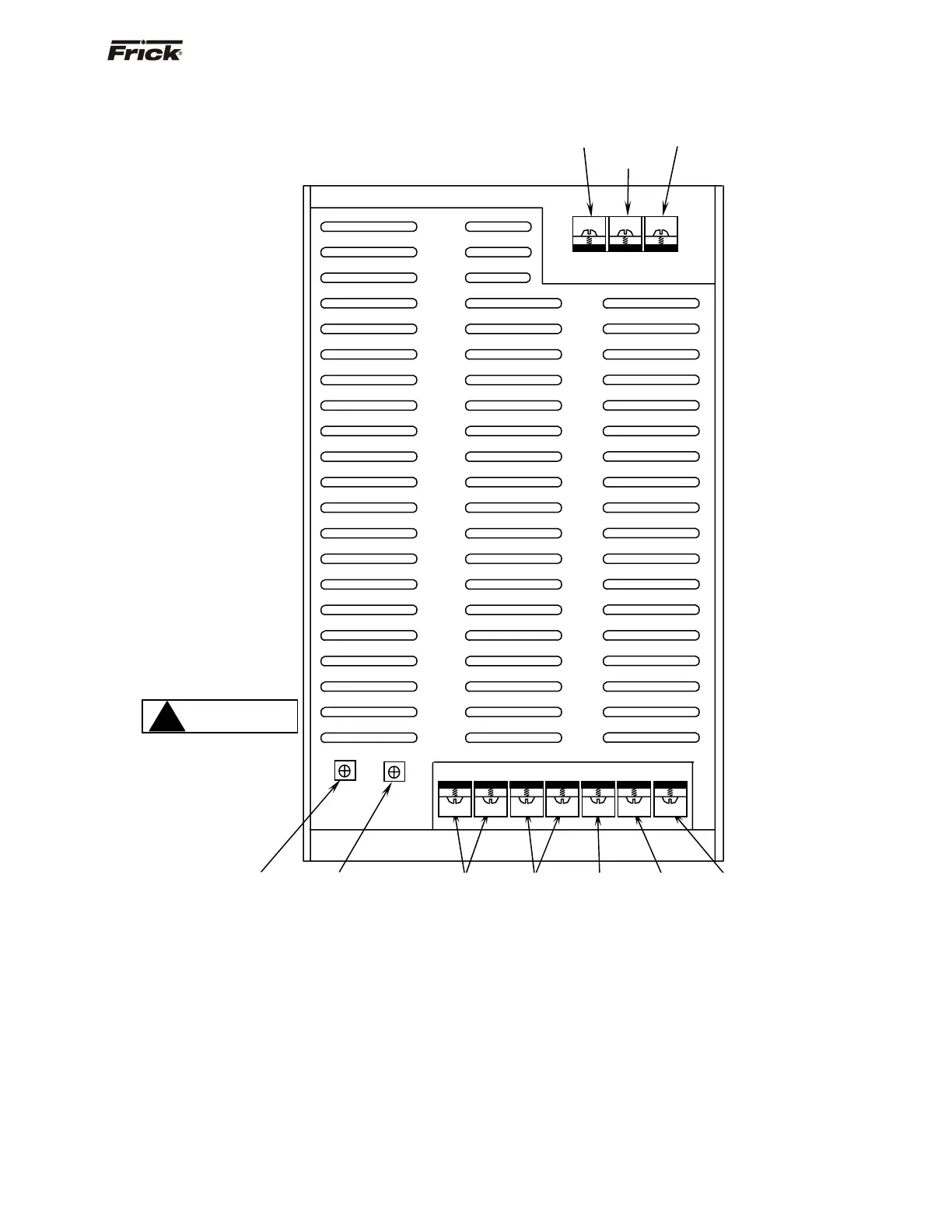

QUANTUM™ PANEL D.C. POWER SUPPLY LAYOUT (POWER-ONE)
INPUT: TB1 INPUT: TB2
SCREW TERMINAL CONNECTIONS: SCREW TERMINAL CONNECTIONS
Pin 1 AC GROUND PIN 1 OUTPUT V4 (+12V)
Pin 3 AC NEUTRAL PIN 2 OUTPUT V3 (-12V)
PIN 5 AC LINE PIN 3 OUTPUT V2 (+12V)
PIN 4 COMMON (GND)
PIN 5 COMMON (GND)
PIN 6 OUTPUT V1 (+5V)
PIN 7 OUTPUT V1 (+5V)
Note: The Power One power supply utilizes screw connections for both the AC and the DC connections. The
Condor supply, on the next page, utilizes connectors. Additionally, both the +5 Vdc and the +12 Vdc can be adjusted on the
Power One supply, whereas the Condor supply can only be adjusted for +5 Vdc.
120VAC
Neutral
Ground
V2
(+12V)
V1
(+5V) ADJ
V4
(+12V)
V3
(-12V)
V2
(+12V)
GND
V1
(+5V)
TB1
3
Pin 1
TB2
Pin 7
1
CAUTION
!
Use only a screwdriver
with an insulated shaft
to perform adjustment
(see NS-10-02 for
details).
