Frick QUANTUM LX - Analog Board Inputs and Outputs

S90-020 M FRICK
®
QUANTUM™ LX COMPRESSOR CONTROL PANEL
Page 28 MAINTENANCE
Analog Board Inputs and Outputs
SCREEN NAME: Analog I/O.
ACCESSING:

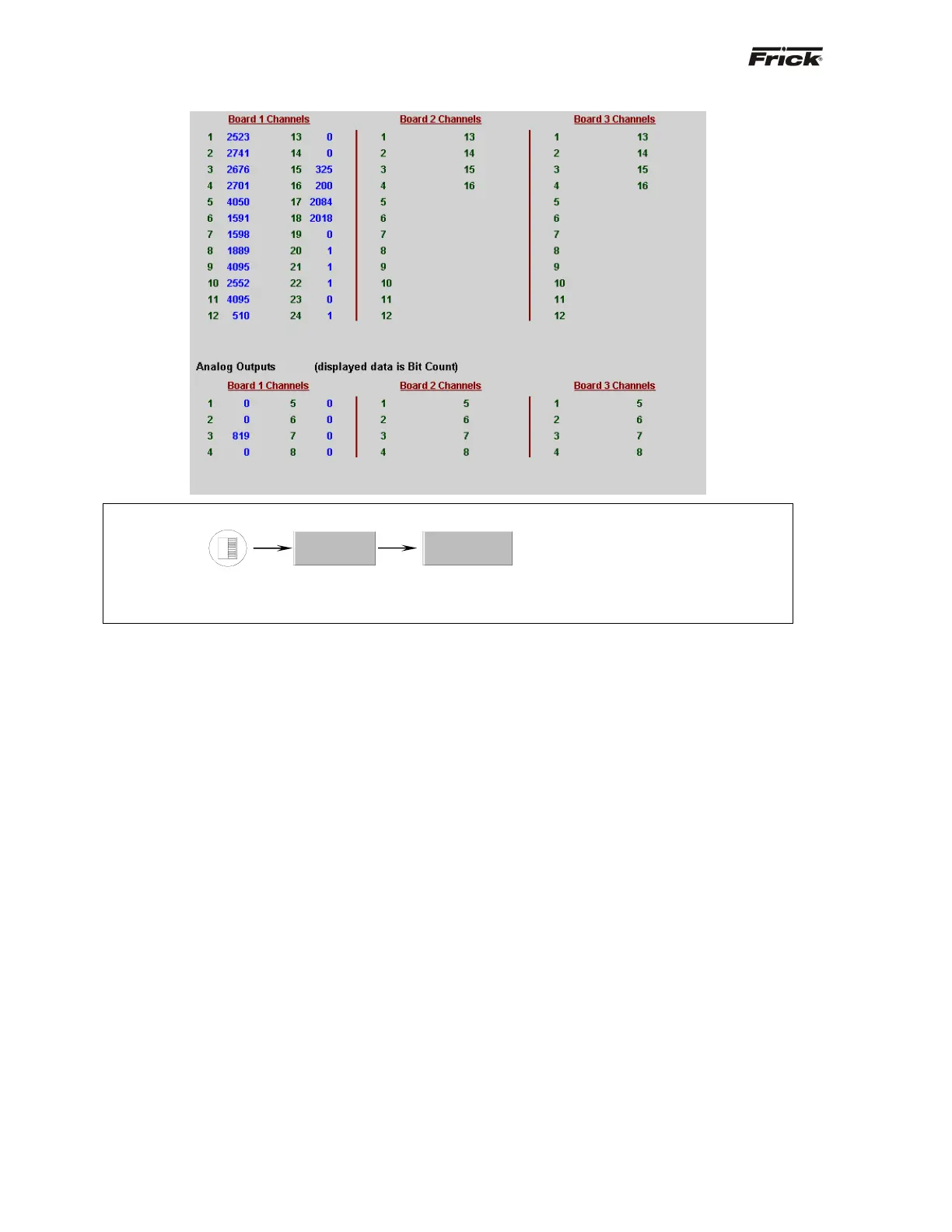

DESCRIPTION: The Analog Service Screen has been provided to view the raw data from an Analog Board.
There is a separate screen for each of the Analog Boards that are present. Analog values are converted
from binary to show volts. The error factor is ± .05 volts.
Service…
Analog
