QUANTUM
™
LX EVAPORATOR CONTROL PANEL
COMMUNICATIONS SETUP
090.610-CS (MAY 2016)
Page 16

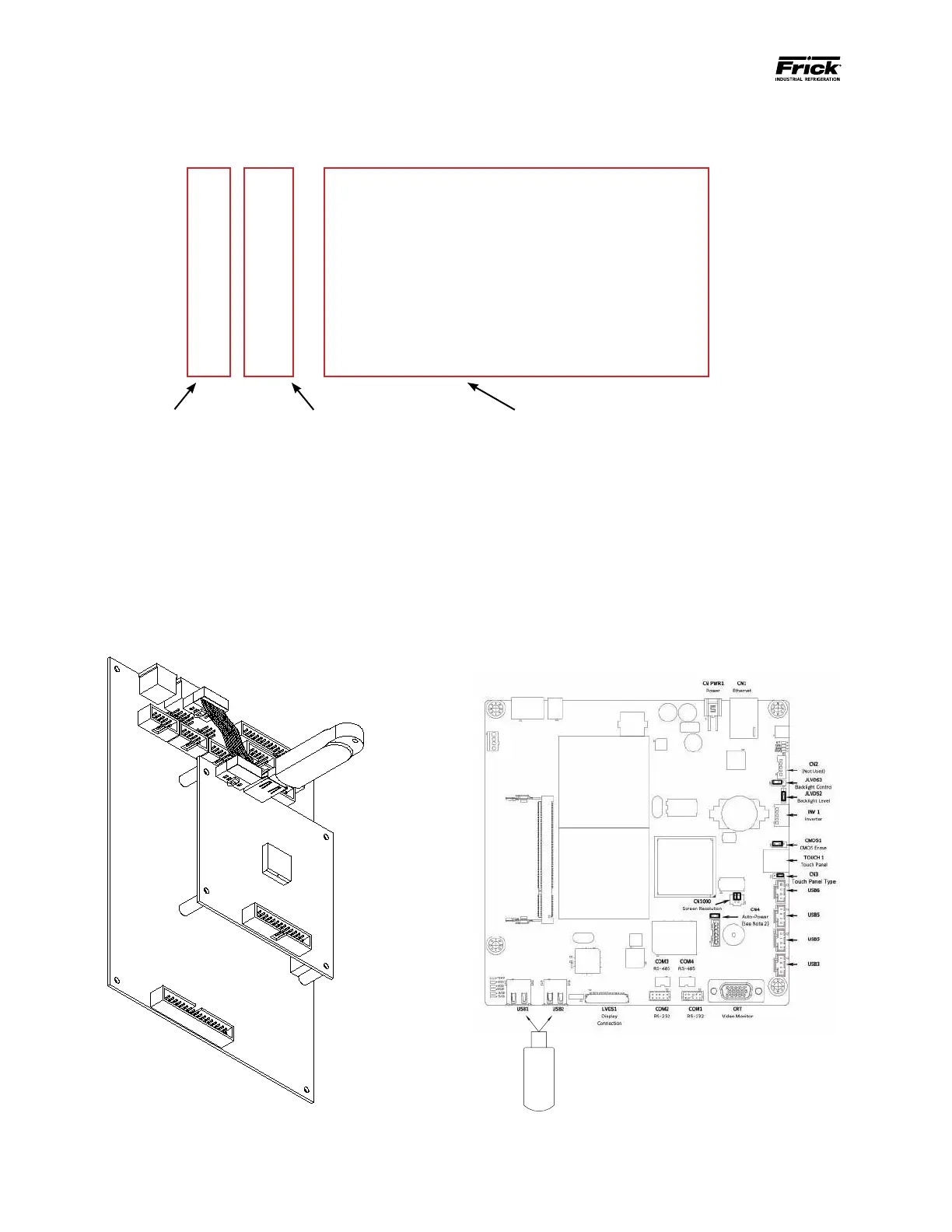

A sample of the original le appears in the following example:
;Quantum to Quantum LX MAP Addresses
;Q, LX , LX Description
0, 1026 ;Compressor Motor Start Signal
1, 1027 ;Compressor Motor Starter-Feedback/Compressor Interlock
2, 1028 ;Oil Pump Start Signal
3, 1029 ;Oil Pump Feedback
4, 1003 ;Capacity Increase
5, 1002 ;Capacity Decrease
6, 1005 ;Volume Increase
7, 1004 ;Volume Decrease
MapFile.txt Example
Q4/Q5
Q5
USB Memory Stick location
Q4
Quantum™ earlier
addresses
Quantum™ LX
addresses
Quantum™ LX
Address Description
