QUANTUM
™
LX EVAPORATOR CONTROL PANEL
COMMUNICATIONS SETUP
090.610-CS (MAY 2016)
Page 30
• This Controller: SLC500
• Data Table Address: Data le location in the
SLC500
• Size in Elements: # of data le to read
• Channel: Port location on the SLC processor
(Channel 0 is the RS-232 port)
• Target Device: Quantum™ Panel
• Data Table Address: Data le location in the
Quantum™ LX controller.
• Local Node: Quantum™ LX ID# (Octal)

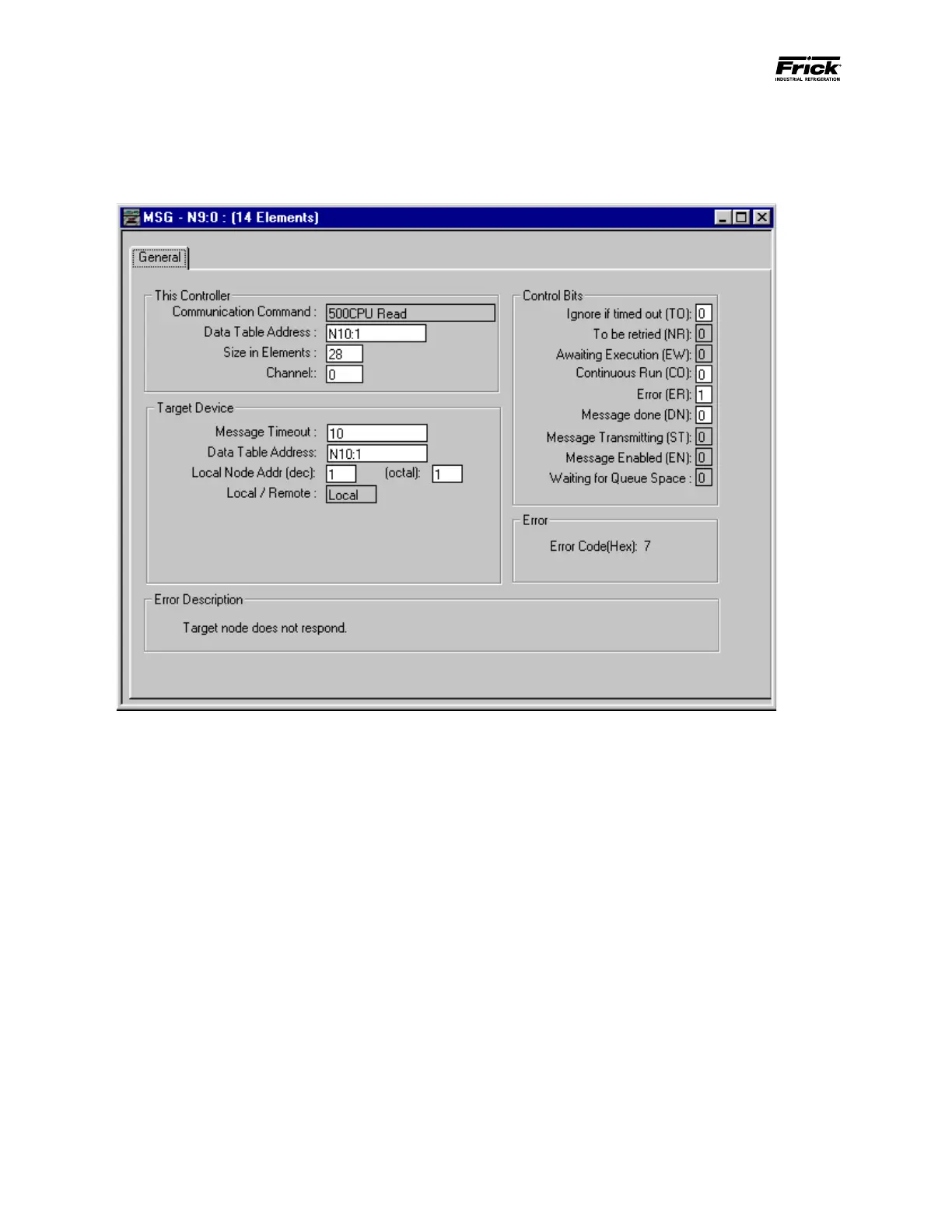

MESSAGE READ SETUP SCREEN
The following setup screen is programmed to obtain 28 consecutive data les from the Quantum™ LX (ID#1) N10:1 register and
place them into the SLC500’s N10:1 through N10:28 register. The target address must be changed to for the Quantum™ LX.
