QUANTUM
™
LX EVAPORATOR CONTROL PANEL
COMMUNICATIONS SETUP
090.610-CS (MAY 2016)
Page 27
ALLEN-BRADLEY PROGRAMMING OVERVIEW
This section contains programming examples for read-
ing data from, and writing data to the Frick® Quan-
tum™ LX control panel from an Allen Bradley (AB)
SLC500 processor. AB RSLogix500 programming
software has been used for the following examples,
however, these examples can also be used for the AB
RSLogix5 software.
CHANNEL CONFIGURATION

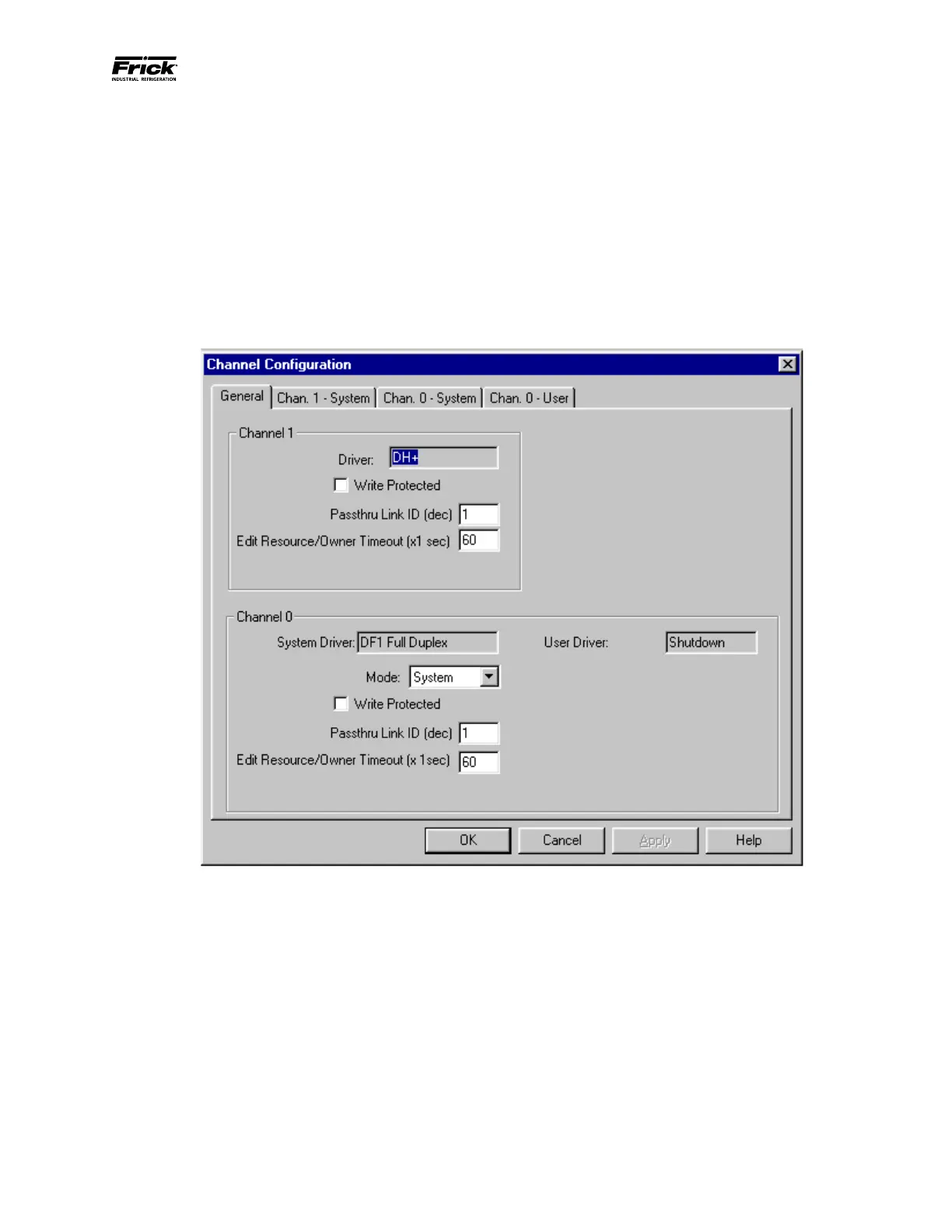

The following are representations of the channel con-
guration screens from the AB RSLogix500 program-
ming software for the SLC500. Enter values as shown
in order to establish communications via AB Protocol.
General Conguration
