QUANTUM
™
LX EVAPORATOR CONTROL PANEL
COMMUNICATIONS SETUP
090.610-CS (MAY 2016)
Page 31

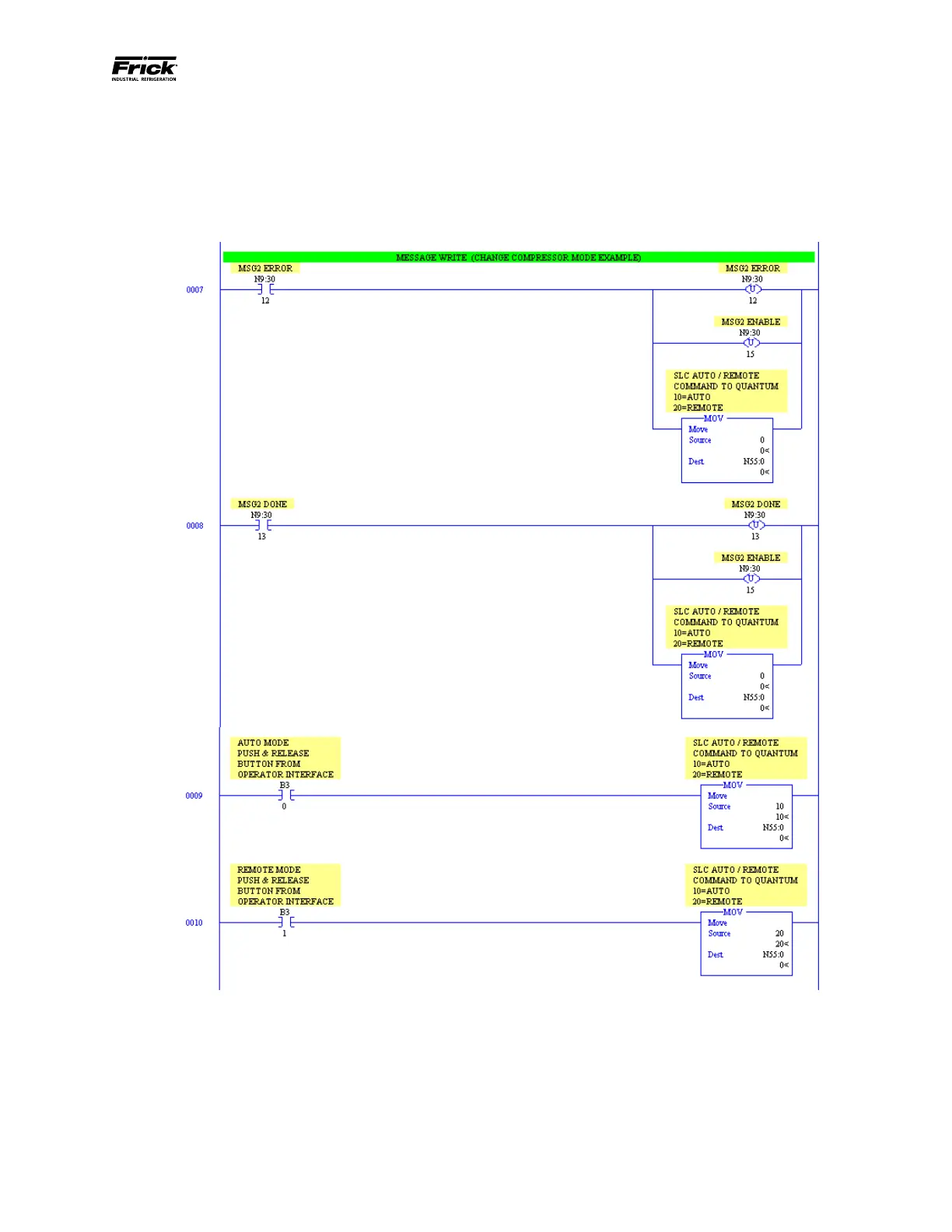

Message Write Logic
Use the following logic to write data from the Quan-
tum™ LX panel. To write more data or to write data
to several Evaporators, copy / paste these rungs as
needed then modify the control block and setup screen
parameters accordingly. The following write message
instruction will be executed when counter 5:0 (logic
shown above) is equal to 1 and when called upon by
the change Evaporator mode bit B3/2. When B3/2 is
off, the counter will be incremented to execute the
next message in the sequence.
- Continued on next page -
