The keys are capacitive keys; if they become wet their function may be compromised.
Wipe the keys dry with a cloth if necessary to ensure optimal function.
Display Power for the display comes from the AC grid voltage. The display can be available all day
long depending on the setting in the Setup menu.

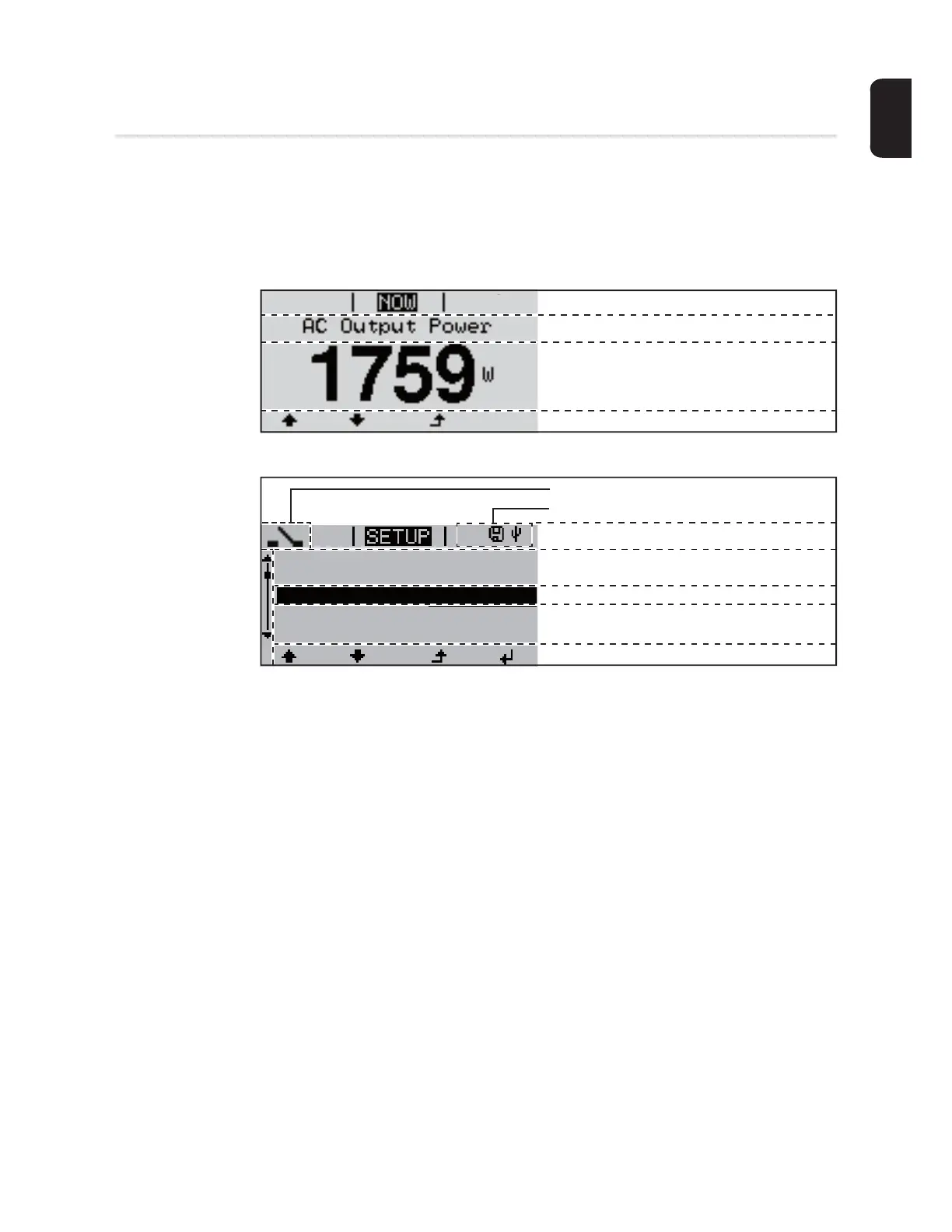

Display area, display mode
Display area, setup mode
(*) Scroll bars
(**) The Energy Manager symbol
is displayed if the Energy Manager function has been activated
(***) Inv. no. = Inverter DATCOM number,
Store icon – appears briefly when set values are stored,
USB connection – appears if a USB stick has been inserted
IMPORTANT! The inverter display is not a calibrated measuring instrument. Slight devia-
tion from the utility company meter is intrinsic to the system. A calibrated meter is required
to make calculations for the utility company.
Function key functions
Menu item
Parameter declaration
Display of values, units and status codes
Function key functions
Next menu items
Currently selected menu item
Previous menu items
Menu item
Inv. no. | Save symbol | USB conn.(***)
(*)
1
Energy-Manager (**)
Standby
WiFi Access Point
DATCOM
USB
Relay

Fronius Primo Series Specifications

General

Efficiency	Up to 98.1%
Protection Rating	IP65
Operating Temperature Range	-25°C to +60°C
Frequency	50 / 60 Hz
DC input voltage range	80 - 600 V
Model	Primo Series
Type	Transformerless
Power Classes	3.0 kW to 8.2 kW
Communication Interfaces	WLAN, Ethernet, RS485
Weight	21.5 kg
Max. apparent AC power	8, 200 VA
AC voltage range	150 - 280 V
MPP voltage range	240 - 480 V
Warranty	5 years
Dimensions	645 x 431 x 204 mm
