18

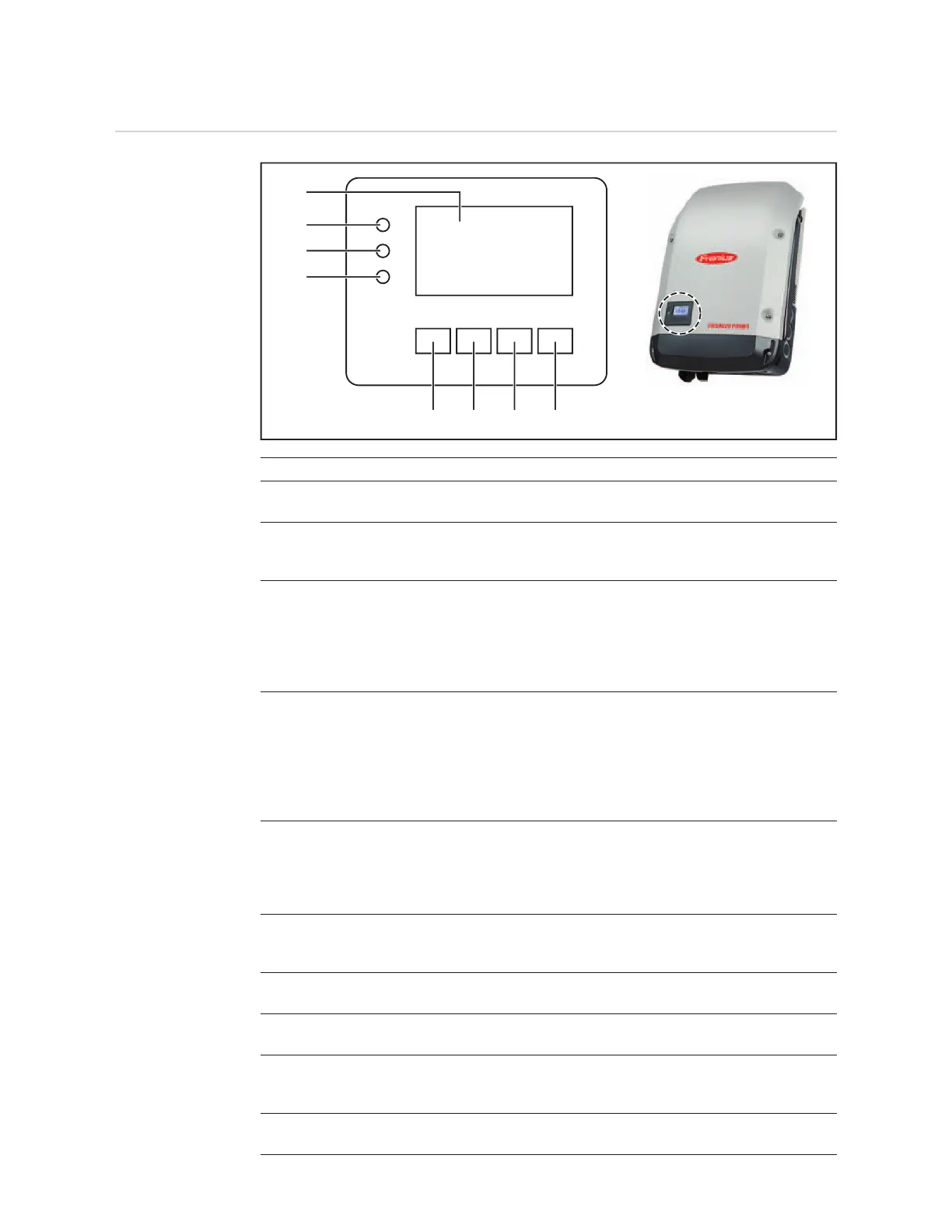

Keys and symbols
Keys and Sym-
bols
Item Description
(1) Display
for displaying values, settings, and menus
Control and Status LEDs
(2) General Status LED (red)
indicates
- when a status code is shown on the display
- interruption of grid power feed operation
- during troubleshooting (the inverter is waiting to be reset or for an error to
be corrected).
(3) Startup LED (orange)
indicates
- if the inverter will enter the automatic startup or self test phase (as soon as
the solar modules yield sufficient power output after sunrise)
- if the inverter has been set to standby operation in the Setup menu (= man-
ual shutoff of operation)
- when the inverter software is being updated.
(4) Operating Status LED (green)
indicates
- if the photovoltaic system is working fault-free following the automatic start-
up phase of the inverter
- when the grid power feed operation is taking place.
Function keys – each has a different function depending on the selection:
(5) "Left/Up" key
for navigating left and up
(6) "Down/Right" key
for navigating down and right
(7) "Menu/Esc" key
for switching to the menu level
to exit the Setup menu
(8) "Enter" key
for confirming a selection
(1)
(2)
(3)
(4)
(5) (6) (7) (8)
