24
If no key is pressed for 2 minutes
- the inverter switches to the "NOW" menu item from anywhere within the menu level
(exception: Setup menu item "Standby")
- the display illumination turns off
- the current power of feeding in is displayed.

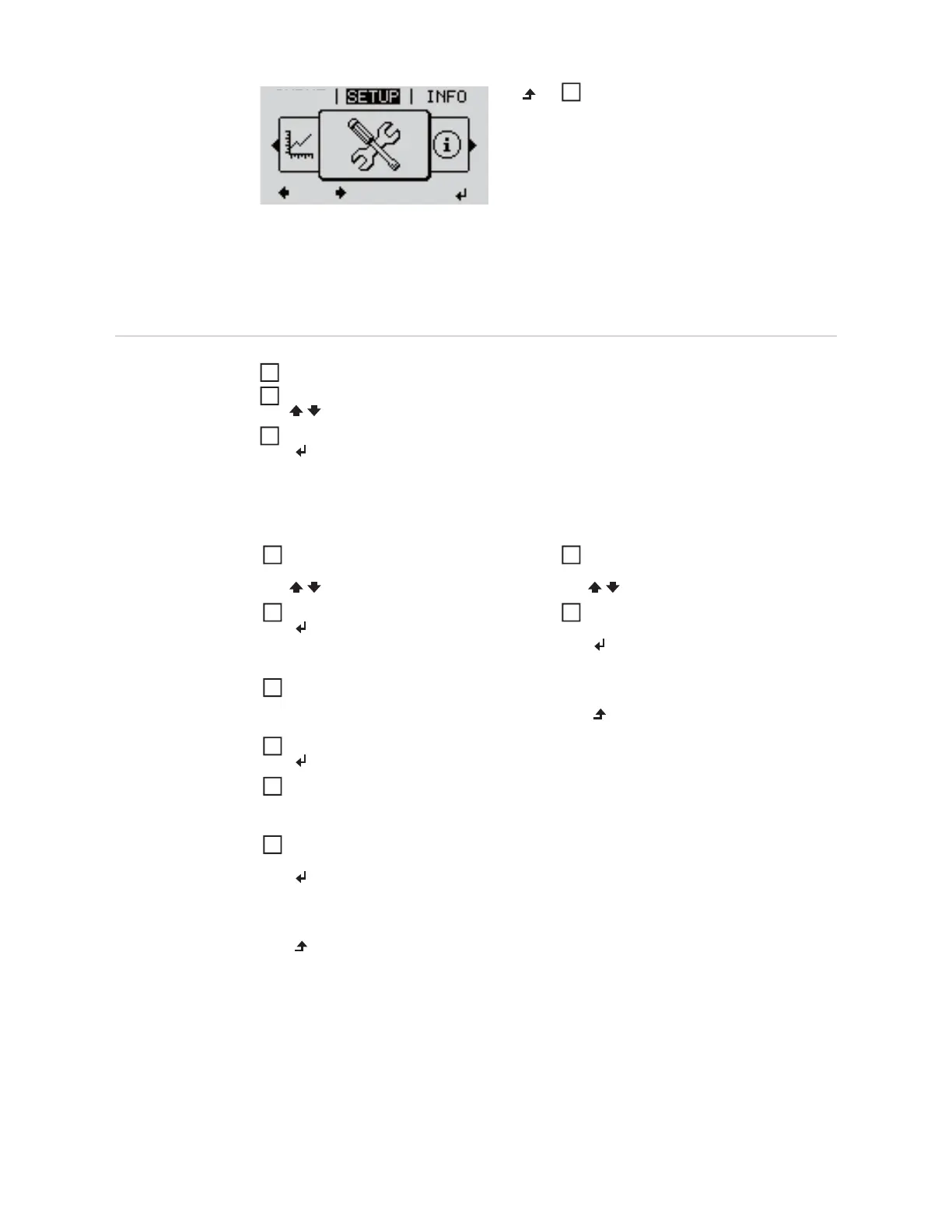

General Setup
Menu Item Set-
tings
Accessing the SETUP menu item
Use the "Up" and "Down" keys to select the desired menu item
Press the "Enter" key
To exit a menu item, press the "Back"
key
The menu level is displayed
GRAPH
4
The first digit of a value to be set flash-
es:
The available settings are displayed:
Use the "Up" and "Down" keys to se-
lect a value for the first digit
Press the "Enter" key
The second digit of the value flashes.
Repeat steps 4 and 5 until...
the entire value flashes.
Use the "Up" and "Down" keys to se-
lect the desired setting.
Press the "Enter" key to save and ap-
ply the selection.
Press the "Esc" key to discard the se-
lection.
Press the "Enter" key
Repeat steps 4–6 for units or other
values to be set until the unit or value
to be set flashes.
Press the "Enter" key to save and ap-
ply the changes.
Press the "Esc" key to discard the
changes.
The currently selected item is displayed. The currently selected item is displayed.
1
2
3
4
5
6
4
5
7
8
9
