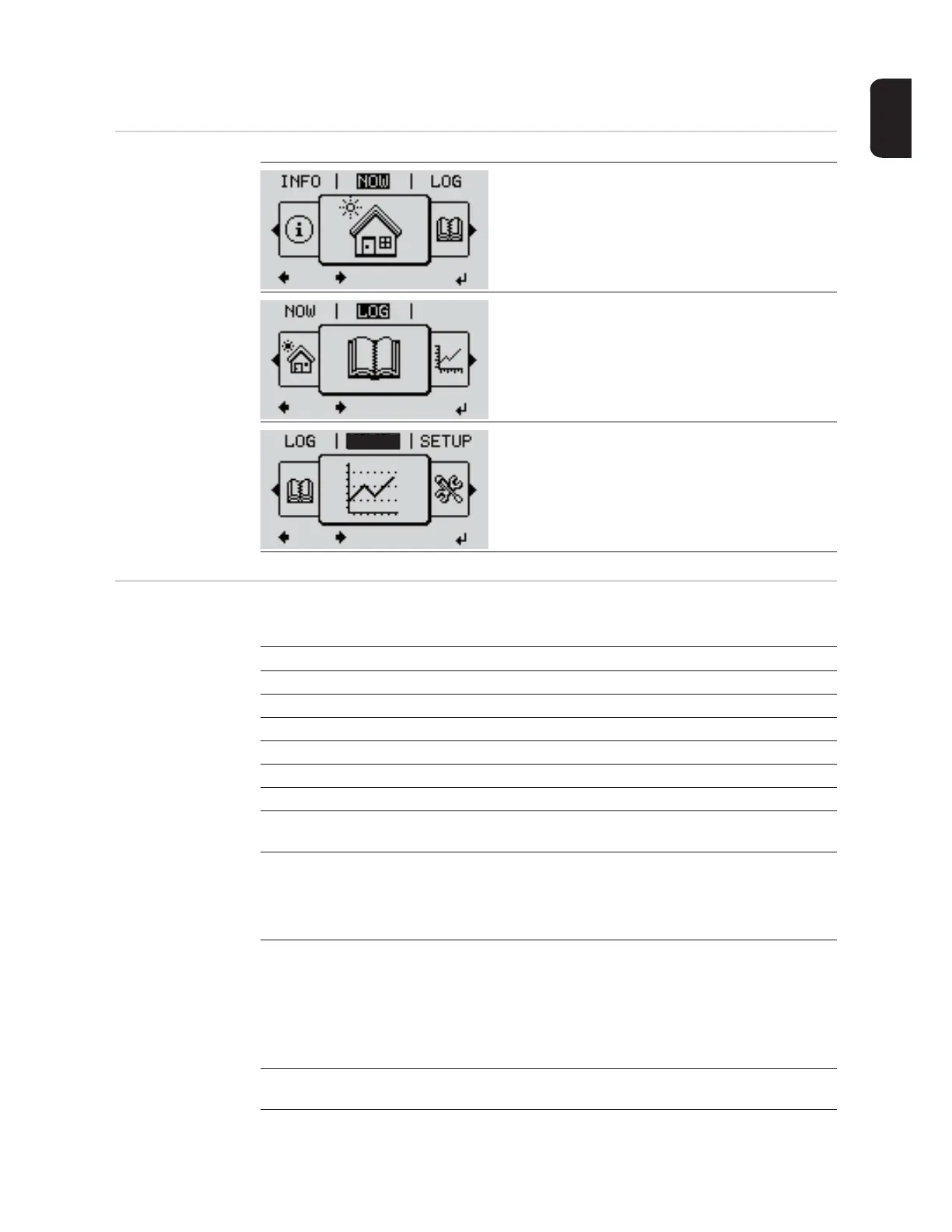

Menu items NOW, LOG, and GRAPH
NOW
LOG
GRAPH
Values Displayed
in the Menu Items
NOW and LOG
Data displayed in menu item NOW:
Data displayed in menu item LOG:
(for the current day, the current calendar year, and since using the inverter for the first time)
NOW
(displays real-time values)
LOG
(data logged on the current day, from the
current calendar year, and since using the
inverter for the first time)
GRAPH
graphically represents the course of the
output power during the day. The time
axis is automatically scaled
Press the "Back" key to close the display
GRAPH
GRAPH
AC Output Power (W)
AC Reactive Power (VAr)
AC Voltage (V)
AC Output Current (A)
AC Frequency (Hz)
PV Array Voltage (V)
PV Array Current (A)
Time / Date
Time and date on the inverter or Fronius Solar Net ring
AC Energy Yield (kWh / MWh)
energy fed into the grid during the monitored period
Due to the variety of different monitoring systems, there can be deviations between the
readings of other metering instruments and the readings from the inverter. For determin-
ing the energy supplied to the grid, only the readings of the calibrated meter supplied by
the electric utility company are relevant.
AC Maximum output power (W)
highest power feeding in during the monitored period
