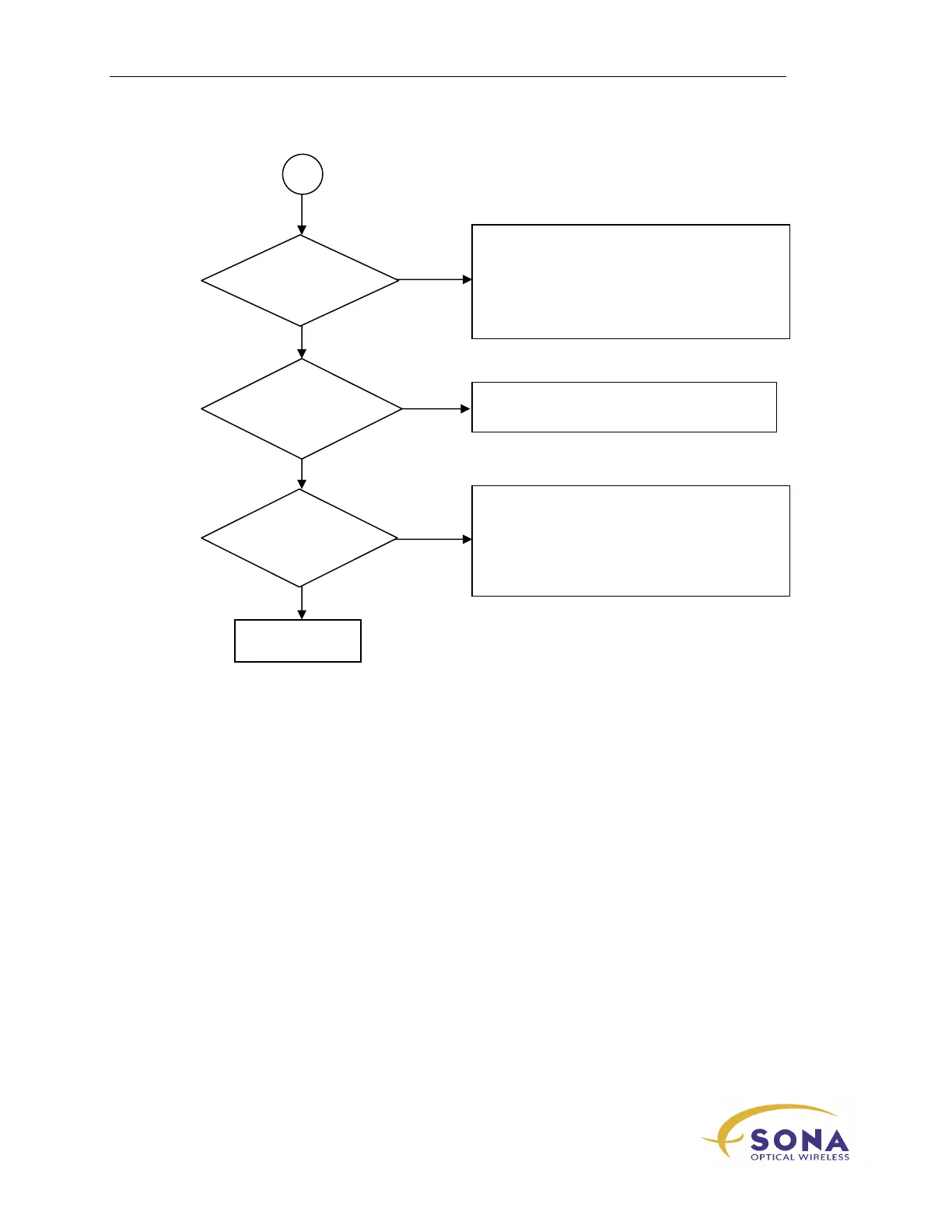

System Problems
76 wireless at the speed of light …………….
SO
NAbeam E-Series Installation Manual
Rx Pwr OK?
FSO Lock
OK?
Your Network
Link OK?
Y
Y
Y
N
N
N
Ready for
deployment
Check your OTHER terminal’s Laser Power.
Check your alignment.
Check for link obstructions.
Check your terminal’s
configured Data Rate.
Check for F/O Tx/Rx connections backwards.
Check your F/O power levels.
Check your system’s configured Data Rate.
A
