39

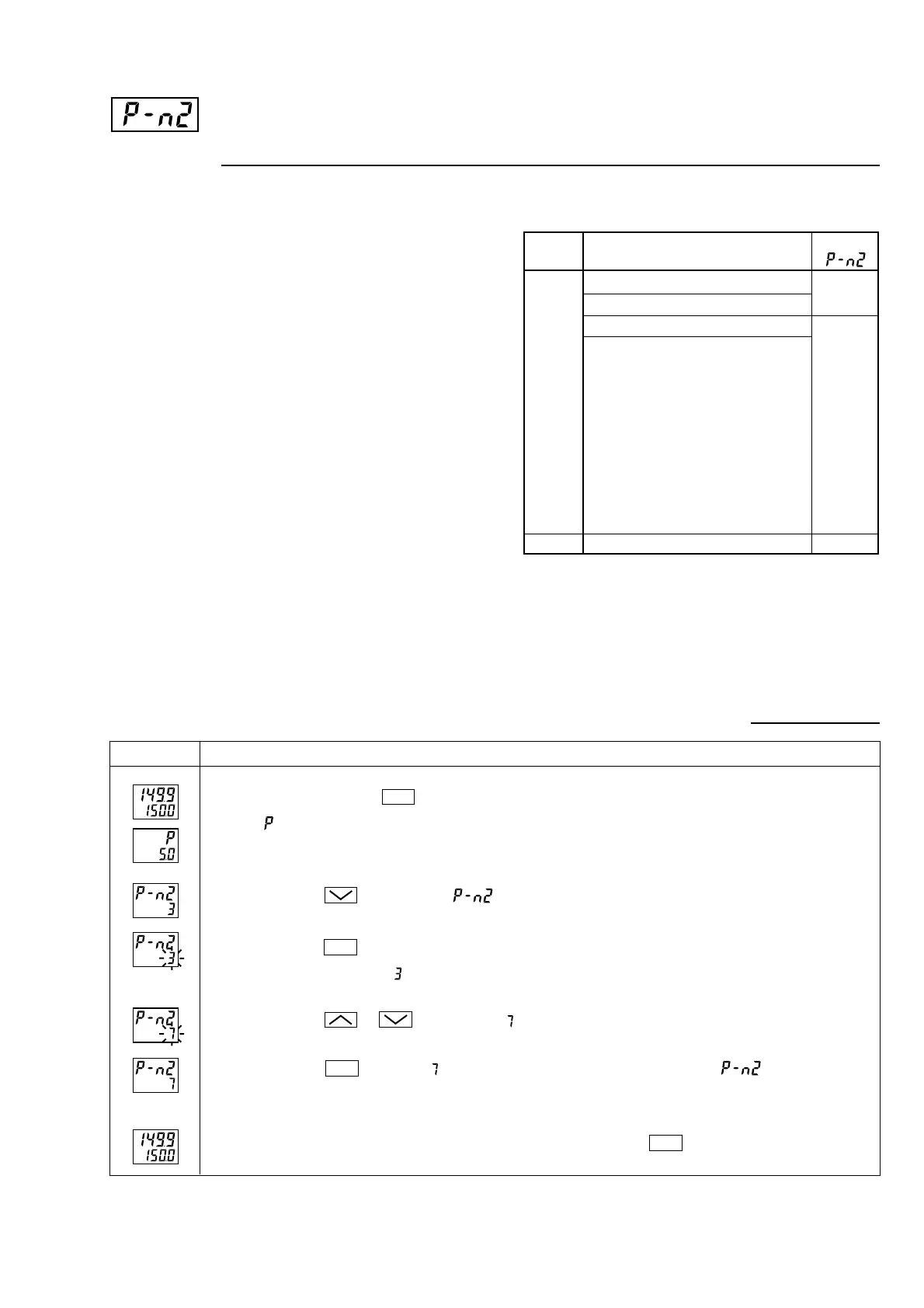

Input signal code (Setting range: 0 to 16)
[Description]
• This parameter is used for selecting input signals. Input
signal varies depending on the sensors (2 types below).
Set a code that corresponds to the sensor you use.
Type I : Thermocouples (9 kinds of signals)
Resistance bulbs (1 kind of signal)
Type II : Voltage, current
• Input signals can be selected within the same type. It is
impossible to select input signals of a different type.
•For type II, to change from the voltage input to the cur-
rent input, connect the supplied resistance of 250Ω be-
tween terminals !7 and !8 (in the case of PXR4), and
between terminals #5 and #6 (in the case of PXR5/9), in
addition to changing the code.
When changing from the current input to the voltage in-
put, remove the resistance of 250 Ω as well as changing
the code.
[Note]
After changing the codes, power off the PXR, and then
power it on again.
Code
1
2
3
4
5
6
7
8
12
13
16
Input signal
Resistance bulb (RTD)
• Pt 100
Thermocouple
• J
• K
• R
• B
• S
• T
• E
• N
• PL-II
1 to 5 V, 4 to 20mA DC
Type
I
II
[Setting example] Changing from thermocouple K to thermocouple T in Type I
Press and hold the
SEL
key for three seconds.
will be displayed on the PV display.
Press the
key to display
.
Press the
SEL
key once.
The current setting ( ) flashes on the SV display.
Press the
or
key to display
.
Press the
SEL
key once. will stop flashing and will be registered for . After that, the
controller will operate with the kind of input signals being thermocouple T.
If you want to display the operation status, press and hold the
SEL
key for two seconds.
Operating procedureDisplay
1.
2.
3.
4.
5.
6.
• Input signals and codes
q Input signals code table
